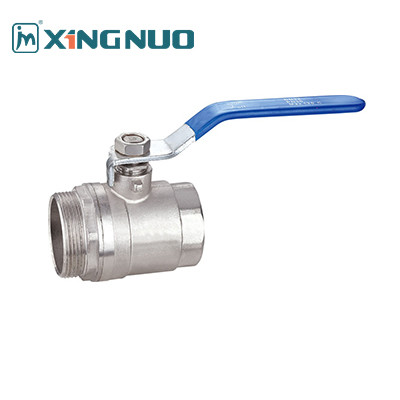

Male And Female Threaded Brass Body Ball Valve Blue Iron Handle For Pharmaceutical Industry
Male And Female Threaded Brass Body Ball Valve Blue Iron Handle For Pharmaceutical Industry
Specifications
Brand Name :
Taizhou XingNuo
Model Number :
BV1024
Place of Origin :
Zhejiang Taizhou
MOQ :
3000Pcs
Payment Terms :
T/T
Packaging Details :
Xingnuo Package
Name :
4 Inch Brass Ball Valve
Stem Material :
Brass
Nominal Pressure :
Max. 25bar
Working Temperature :
-10~120°C（14～248°F）
Threaded :
ISO228/1
Processing Technic :
Sand blast and nickel plate
Test :
100％ Leak Tested
Handle Material :
Aluminium
Brass Material :
HPB57-3
Seal Material :
PTFE
Size :
1/2"x16,3/4"x20
Weight :
280g
Port :
ningbo/shanghai
Pressure Rating :
600 psi
Oem :
Provide OEM Services
Body Style :
2-piece
Seat Material :
PTFE
Function :
Kitchen ,Bathroom , Balcony ,Toilet
Handle Type :
Lever
Prcie :
factory price
Connection End :
Thread
Surface Treatment :
nickel plating
Head Code :
Round
Handle Finish :
Chrome Plated
Valve Type :
Ball
End Connection :
1
Range :
Gas Pipe Connection
Technogy :
Forged
Customized Support :
OEM, ODM, OBM, Software reengineering
Description

BV1024 Brass Ball Valve With Brass Body Brass Ball Brass Stem /Iron Handle/Nickel Plated

Brass BV1024

Specification

  • ​forged brass body
  • sand blast and nickel plated
  • nominal pressure:Max.25bar(362.6psi)
  • temperature:-10~120°C(14～248°F)
  • threaded ISO228/1
  • 100% leak tested
  • Male And Female Threaded Brass Body Ball Valve Blue Iron Handle For Pharmaceutical Industry

Technical Specification

Dimensions

SIZE

 A C D E
1/2" 43.5 26 90 12
3/4"

50

 31.5 100 15
1" 58 38.5 128 20
11/4" 68 48.5 134.5 25
11/2" 77 55 165.5 32
2" 91 68.5 165.5 40
2 1/2" 108 85.8 240 49
3" 129 100.5 240 60
4" 143 127.5 240 71

Product Details

  • Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

  • Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

  • Ball Valve: Smooth and wear resisting, with good sealing performance.

  • Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

  • Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.

  • Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

  • Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.

  • O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.

Reminding

  1. The thread, color of handle, materials, etc. can be customized.
  2. Brass Ball Valve with Aluminium handle.
  3. Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.

Certificates

Packaging Details

SIZE Weight(g) Inner Box(mm) Carton(mm)

Qty per

inner box

Qty per

carton
1/2" 140 14x11.5x6 33.5x16.5x26 10 100
3/4" 200 16X13X8 41.5X32.5X27 10 100
1" 7311 16.5X13X8 42.5X18X28.5 6 60
11/4"" 510 22.5X12.5X8 42.5X25X27.5 4 40
1 1/2" 683 21.5X11X6.5 35X24X36 2 30
2" 1055 22.5X12.5X8 42.5X25X27.5 2 20
2 1/2" 1990 31.5X18.5X10.5 39.5X23.5X34 2 8
3" 2781 34X20X13 41.5X22X35.5 2 6
4" 4230 36X22.5X15.5 38X24X33.5 2 4

Brass Ball Valve series

  • The brass ball valve is mainly used to cut off, distribute and change the medium flow direction. The ball valve designed as a V-shaped opening also has a good flow regulation function.

Compant Profiles

1
This Brass Ball Valve is designed with both male and female threaded connections, making it versatile for various applications within the Pharmaceutical Industry. The valve features a durable Brass Body that ensures longevity and reliability in demanding environments. The blue Iron Handle provides easy operation and control of the flow of liquids or gases, making it a convenient choice for pharmaceutical processes.

2
With its high-quality construction, this Brass Ball Valve is suitable for use in pharmaceutical applications where precision and efficiency are crucial. The male and female threaded connections allow for easy installation and compatibility with existing systems. The Brass Body of the valve is resistant to corrosion and chemical damage, ensuring a safe and reliable performance in pharmaceutical settings.

3
The blue Iron Handle of this Brass Ball Valve adds a touch of color and visibility, making it easy to identify and operate in busy pharmaceutical facilities. Whether used for controlling the flow of ingredients, chemicals, or other substances, this valve is designed to meet the stringent requirements of the Pharmaceutical Industry. Trust in the quality and performance of this Brass Ball Valve for your pharmaceutical processing needs.
