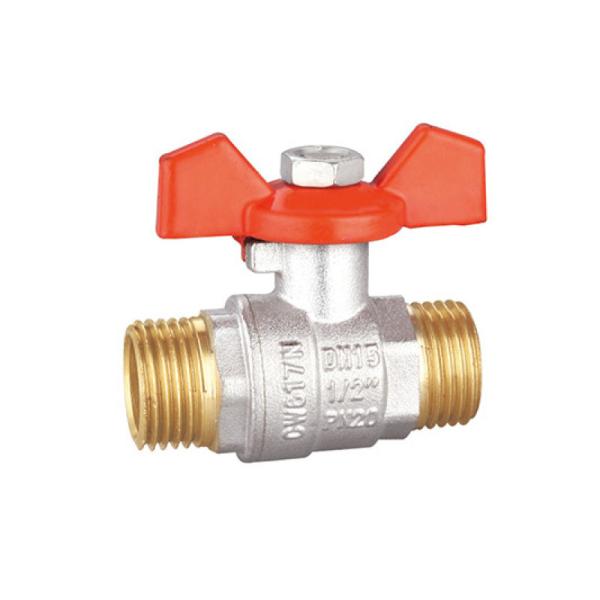

Nickel Plated Half Inch Brass Ball Valve Max 25bar Pressure BV1032-MM
Nickel Plated Half Inch Brass Ball Valve Max 25bar Pressure BV1032-MM
Specifications
Brand Name :
JM
Model Number :
BV1032-MM
Name :
Nickel Plated Brass Ball Valve
Material :
brass
surface :
nickel
pressure :
max 25bar
temperature :
-10-110
threaded :
F/F ISO 228/1
Description

Brass Ball Valve BV1032-MM Sand Blast Nickel Plated Nominal Pressure:Max 25 bar Temperature:-10-110

Specification

  • Forged brass boby

  • Sand blast and nickel plated

  • Nominal Pressure:Max.16bar

  • Temperature:-10°C~110°C

  • Threaded ISO228/1

  • 100% leak tested

Dimensions
SIZE A B C D E
1/2" 53 27 41 53.5 13.5
3/4" 58.5 32 44 53.5 17
packaging
SIZE Weight(g) Inner Box(mm) Carton(mm)

Qty per inner box

 Qty per carton
1/2" 135 17×11×6 36×25×19.5 12 144
3/4" 175 17×13.5×7 36×28.5×22.5 10 120
