WL-147 Heavy-Duty Load Cell: 10-100t Stainless Steel IP68 Sensor for Industrial Weighing
WL-147 Heavy-Duty Load Cell: 10-100t Stainless Steel IP68 Sensor for Industrial Weighing
Specifications
Brand Name :
BRANS
Model Number :
WL-147
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C,T/T,Western Union,Paypal
Delivery Time :
5-7 work days
Packaging Details :
Standard exporter carton packing including of instructions. Water Proof & Shock Resistance
Capacity :
10/15/20/30/40/50/60/100t
Combined Error :
0.02%F.S.
Non-linearity :
0.02%F.S.
Repeatability :
0.02%F.S.
Rated Output :
2.0±0.002mV/V
Zero Balance :
±1%F.S.
Insulation Resistance :
>5000MΩ/100VDC
Recommended Excitation :
5~18VDC
Material :
Stainless Steel
Safe Overload :
150%F.S
Protection Class :
IP68 (Customizable)
Operation Temp. :
-35~65°C
Cable Size :
Ф5.6x12m(10-30t,Ф5.6x18m(30t),Ф5.6x20m(40-100t)
Description

WL-147 Heavy-Duty Load Cell: 10-100t Stainless Steel IP68 Sensor for Industrial Weighing

Features & Applications

Key Features:

  • Heavy-duty compression load cell

  • 10-100t capacity range

  • 304 stainless steel construction

  • IP68 waterproof protection

  • Built-in self-alignment

  • Anti-rotation design

  • Applications:

  • Truck scale systems

  • Vehicle test benches

  • Industrial platform scales

  • Hazardous location weighing

  • Bulk material handling

Our Commitment:
At Brans, we pride ourselves on delivering tailored solutions that precisely match our clients' unique requirements. Recognizing that every application has distinct challenges, we offer customizable single point load cell configurations to ensure optimal performance for your specific needs.

Custom Solutions Available:
• Application-specific adaptations
• Modified specifications upon request
• Engineering support for specialized requirements

Specifications:

Capacity 10/15/20/30/40/50/60/100t
Combined Error 0.02%F.S.
Non-linearity 0.02%F.S.
Repeatability 0.02%F.S..
Rated Output 2.0±0.002mV/V
Zero Balance ±1%F.S.
Insulation Resistance >5000MΩ/100VDC
Recommended Excitation 5~18VDC
Material Stainless Steel
Operation temp -35~65°C
Safe overload 150%F.S.
IP class IP68 (Customizable)
Cable size Ф5.6x12m(10-30t,Ф5.6x18m(30t),Ф5.6x20m(40-100t)

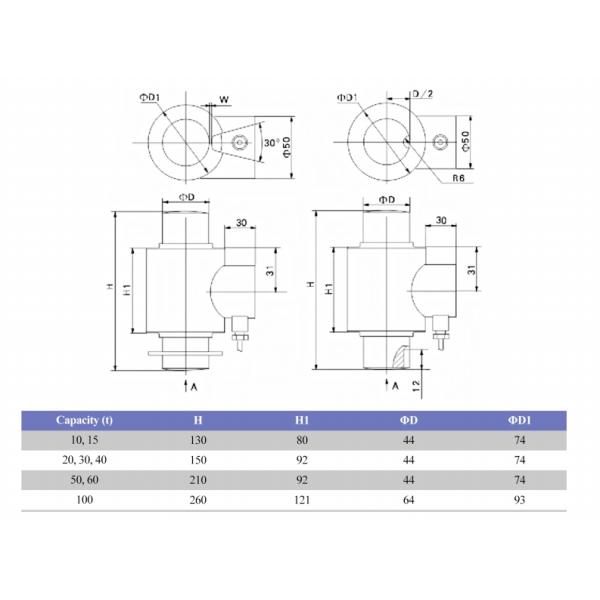

Dimension(MM):

WL-147 Heavy-Duty Load Cell: 10-100t Stainless Steel IP68 Sensor for Industrial Weighing

Load Direction:

WL-147 Heavy-Duty Load Cell: 10-100t Stainless Steel IP68 Sensor for Industrial Weighing

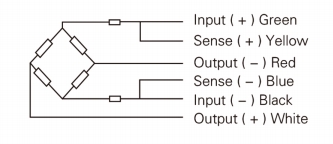

Wiring:

WL-147 Heavy-Duty Load Cell: 10-100t Stainless Steel IP68 Sensor for Industrial Weighing

Load Cell Packaging & Shipping Standards

At Brans, we implement rigorous packaging protocols to guarantee your load cell arrives in perfect condition:

1. Multi-Layer Protective Packaging
• Primary Protection: Each unit is vacuum-sealed in moisture-proof barrier film
• Secondary Cushioning: High-density EPS foam molded to the load cell's contours
• Tertiary Security: Reinforced double-wall corrugated shipping container

2. Advanced Shock Mitigation System
• Multi-axis vibration damping with PE bubble wrap
• Edge protectors for all sensitive components
• "Fragile" and "This Side Up" labeling per ISTA standards

3. Secure Transit Assurance
• Tamper-evident security tape with company logo
• Barcoded shipping labels with QR tracking
• Certified weighing at dispatch for freight verification

4. Premium Logistics Network
• Partnered with DHL/FedEx/UPS for global coverage
• Real-time tracking updates via SMS/email
• 24/7 shipment monitoring by our logistics team

Post-Delivery Protocol:
• Recommended inspection within 48 hours
• Damage claims must include original packaging photos
