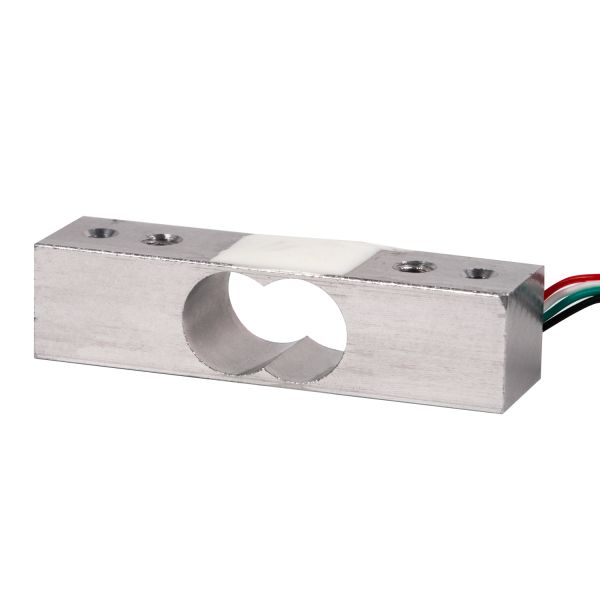

The WL-111 is a single point load cell made of high-strength aluminum alloy, available in capacities from 2kg to 50kg. This single point load cell features a compact design and simple installation, making it suitable for a wide range of industrial weighing applications, including batching, filling, checkweighing, and general force measurement.

With a combined error of 0.02%F.S., non-linearity of 0.02%F.S., and repeatability of 0.02%F.S., this single point load cell provides excellent measurement accuracy. Rated output is 1.8±10%mV/V, zero balance ±0.02mV/V, and insulation resistance ≥5000MΩ. Such stable performance ensures the single point load cell delivers reliable data over long-term operation.

The WL-111 single point load cell comes standard with IP65 protection, with optional higher ratings available. It operates within -20°C to 60°C, and nominal displacement is under 0.4mm, minimizing mechanical influence on the weighing system. The standard cable is Φ4mm × 350mm, and custom lengths can be supplied. This single point load cell accepts an excitation voltage of 5~15 VDC.

This single point load cell is widely used in applications that demand precision and reliability:

• Bench scales and platform scales

• Batching and dosing systems

• Filling machines

• Checkweighers and sorting equipment

• Industrial force monitoring

Every use case benefits from the robust design of this single point load cell.

• Specifications

  Capacity	2kg/5kg/10kg/15kg/20kg/50kg
  Combined Error	0.02%F.S.
  Non-linearity	0.02%F.S.
  Repeatability	0.02%F.S.
  Rated Output	1.8±10%mV/V
  Zero Balance	±0.02mV/V
  Insulation Resistance	≧5000MΩ/100VDC
  Recommended Excitation	5~15VDC
  Material	Aluminum Aloy
  Safe Overload	150%F.S.
  Protection Class	IP65(Customizable)
  Operation Temp.	-20~60°C
  Cable Size	Ф4x350mm(Customizable)

Whether you need a single point load cell for a general-purpose scale, a batch controller, or an industrial filler, the WL-111 delivers. This single point load cell offers an ideal balance of cost and performance. Select the WL-111 single point load cell for your next weighing or force measurement project.

At Brans, we engineer load cells that deliver accuracy, reliability, and ease of integration. The WL-111 single point load cell reflects our commitment to quality – providing consistent, repeatable weighing performance for industrial, commercial, and OEM applications.
