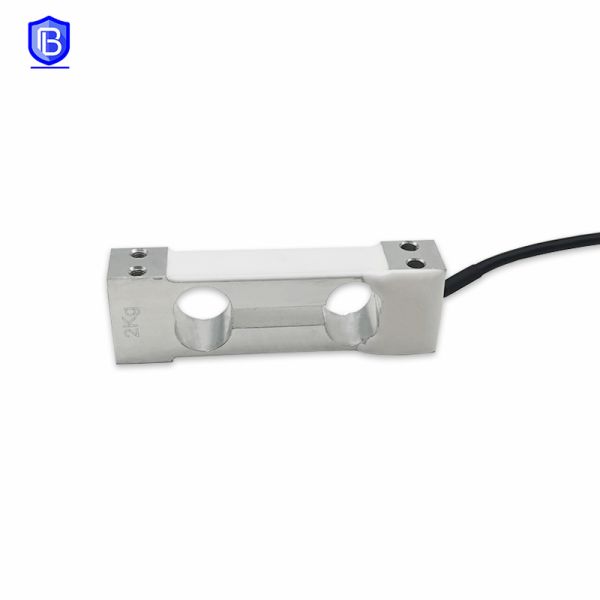

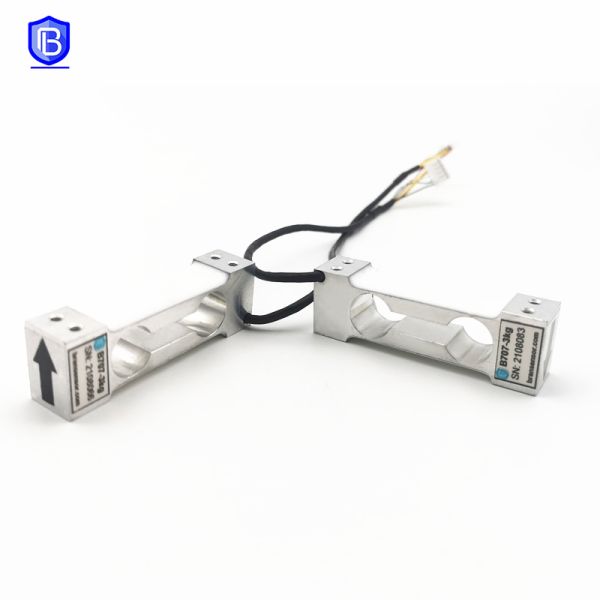

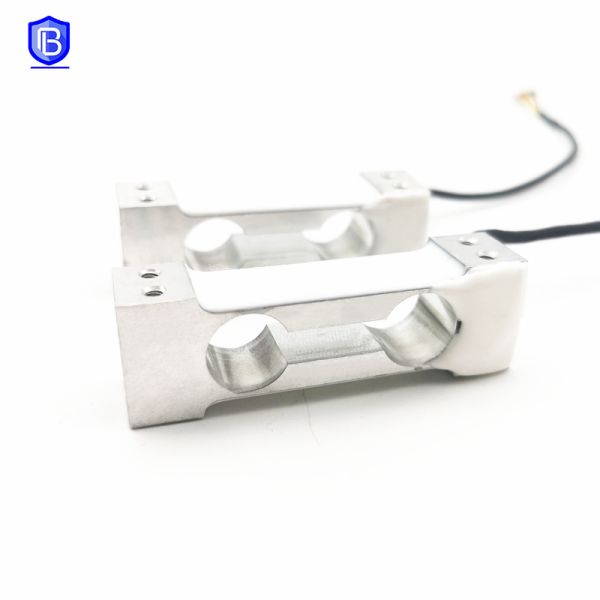

The WL-112 is a single point load cell made of high-strength aluminum alloy, designed for determining small weights from 0.3kg up to 5kg. This single point load cell offers high precision and excellent side load tolerance, making it suitable for batching, filling, and production quality control in applications such as micro‑dispensing metering, medicine, cosmetics, and food packaging. Different cable lengths and other options are available.

With a combined error of 0.017%F.S., non‑linearity of 0.015%F.S., and repeatability of 0.017%F.S., this single point load cell delivers exceptional accuracy for small weight measurement. Rated output is 2.0±10%mV/V, zero balance is ±2%mV/V, and insulation resistance is ≥5000MΩ/100VDC. Such stable performance ensures that the single point load cell maintains precision even in high‑speed filling and checkweighing lines.

The WL-112 single point load cell comes standard with IP65 protection, which is customizable to higher ratings. It operates within -20°C to 60°C, and nominal displacement is less than 0.4mm, minimizing mechanical interference. The standard cable is Φ4mm × 400mm, with custom lengths available. This single point load cell accepts an excitation voltage of 5~15 VDC, providing flexibility for various weighing instruments.

This single point load cell is ideal for applications requiring precise small‑weight determination:

• Micro‑dispensing metering – Precise control of small‑volume liquids or powders

• Pharmaceutical batching – Dosing and quality control for medicine packaging

• Cosmetics filling – Filling machines for creams, lotions, and serums

• Food packaging – Weighing small packages of snacks, spices, or ingredients

• Production checkweighing – Sorting and reject systems

Every application benefits from the high side load tolerance of this single point load cell.

Whether you need a single point load cell for a micro‑dispenser, a pharmaceutical filler, or a food checkweigher, the WL-112 delivers. This single point load cell offers an ideal balance of high accuracy and side load tolerance. Select the WL-112 single point load cell for your next small‑package weighing or batching project.

Specifications

At Brans, we engineer load cells that deliver accuracy, reliability, and ease of integration. The WL-112 single point load cell reflects our commitment to quality – providing consistent, repeatable weighing performance for micro‑dispensing, pharmaceutical, cosmetics, and food packaging applications.
