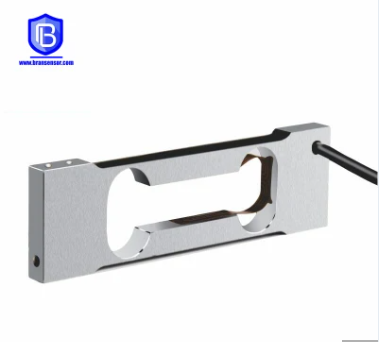

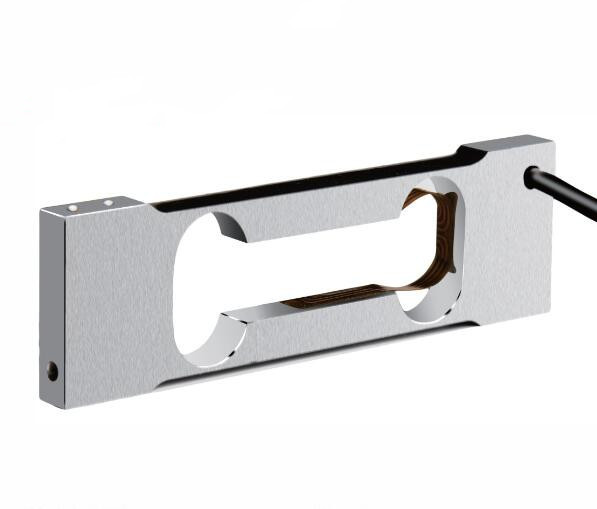

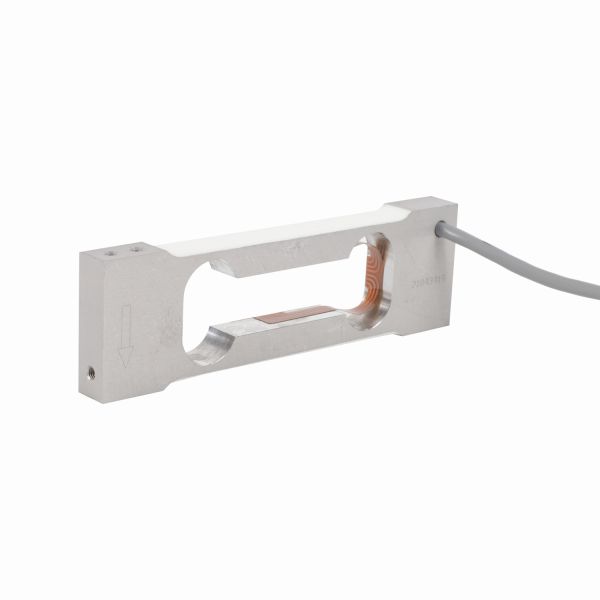

The WL-113 is a single point load cell manufactured from high-strength aluminum alloy, designed for determining small weights from 0.1kg up to 3kg. This single point load cell features compact dimensions and easy installation, making it suitable for micro‑dispensing, pharmaceutical batching, cosmetics filling, and food packaging applications where space is limited.

With a combined error of 0.01%F.S., non‑linearity of 0.015%F.S., and repeatability of 0.01%F.S., this single point load cell delivers ultra‑high precision for its capacity range. Rated output is 2.0±10%mV/V, zero balance is ±2%mV/V, and insulation resistance is ≥5000MΩ/100VDC. Such performance ensures that the single point load cell provides reliable data even in high‑speed filling lines.

The WL-113 single point load cell comes standard with IP65 protection, which is customizable to higher ratings. It operates within -20°C to 60°C, and nominal displacement is less than 0.4mm, minimizing mechanical influence on the weighing system. The standard cable is Φ4mm × 2000mm, with custom lengths available. This single point load cell accepts an excitation voltage of 5~15 VDC.

This single point load cell is ideal for applications requiring precise measurement of very small weights:

• Micro‑dispensing metering – Precise control of small‑volume liquids or powders

• Pharmaceutical batching – Dosing and quality control for medicine packaging

• Cosmetics filling – Filling machines for creams, lotions, and serums

• Food packaging – Weighing small packages of snacks, spices, or ingredients

• Laboratory and testing equipment – Force measurement in restricted spaces

Every use case benefits from the compact design of this single point load cell.

Whether you need a single point load cell for a micro‑dispenser, a pharmaceutical filler, or a food checkweigher, the WL-113 delivers. This single point load cell offers an excellent balance of ultra‑high accuracy and compact size. Select the WL-113 single point load cell for your next small‑weight batching or filling project.

Dimensions(mm)

Specifications

At Brans, we engineer load cells that deliver accuracy, reliability, and ease of integration. The WL-113 single point load cell reflects our commitment to quality – providing consistent, repeatable weighing performance for micro‑dispensing, pharmaceutical, cosmetics, and food packaging applications.
