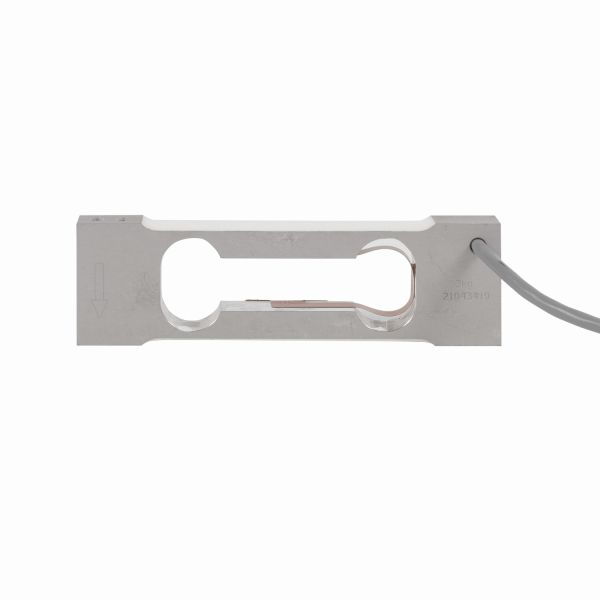

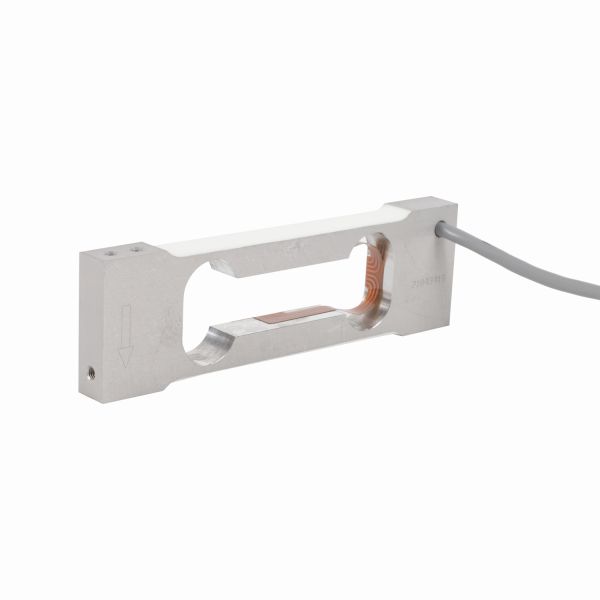

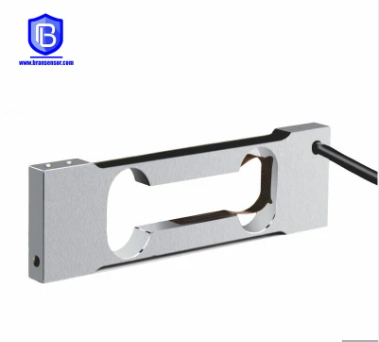

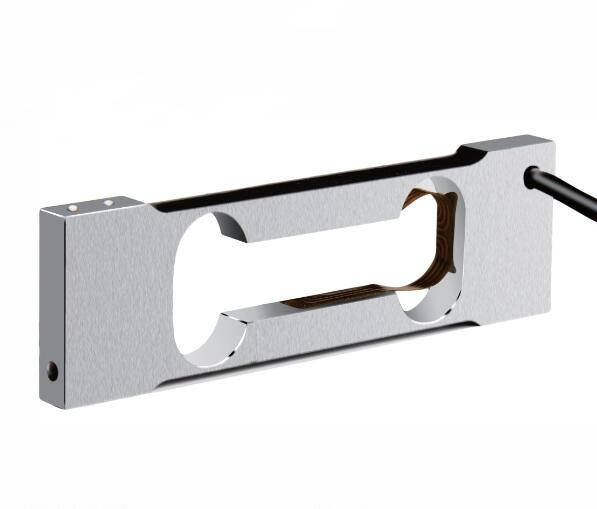

The WL-113 is engineered for applications that require weighing of extremely light loads from 0.1kg up to 3kg. As a single point load cell made of aluminum alloy, it combines ultra‑high precision with a compact footprint. The standard IP65 protection and customizable cable length (2000mm as standard) make this single point load cell versatile for both dry and washdown environments.

When evaluating a single point load cell for micro‑dispensing or pharmaceutical batching, accuracy is paramount. The WL-113 delivers a combined error of only 0.01%F.S., non‑linearity of 0.015%F.S., and repeatability of 0.01%F.S. Its rated output is 2.0±10%mV/V, zero balance is ±2%mV/V, and insulation resistance is ≥5000MΩ/100VDC. These specifications confirm that this single point load cell performs reliably even at the lowest end of its range.

With nominal displacement under 0.4mm and safe overload of 150%F.S., the WL-113 single point load cell withstands occasional overloads without permanent damage. Recommended excitation is 5~15 VDC. The standard cable is Φ4mm × 2000mm, but custom lengths are available. This single point load cell operates from -20°C to 60°C, covering most indoor industrial environments.

This single point load cell is ideal for the following ultra‑light weight applications:

• Micro‑dispensing metering – Powders or liquids in small volumes

• Pharmaceutical dosing – Medicine packaging quality control

• Cosmetics filling – Creams, lotions, serums

• Food packaging – Small spices, snacks, or ingredients

• Laboratory testing – Force measurement in delicate setups

In each case, the single point load cell provides consistent, repeatable readings.

If your project demands a high‑performance single point load cell for very light loads, look no further than the WL-113. This single point load cell has been validated in filling and batching systems worldwide. You can also customize its cable length or protection class. Choose the WL-113 single point load cell and experience precision at the micro scale.

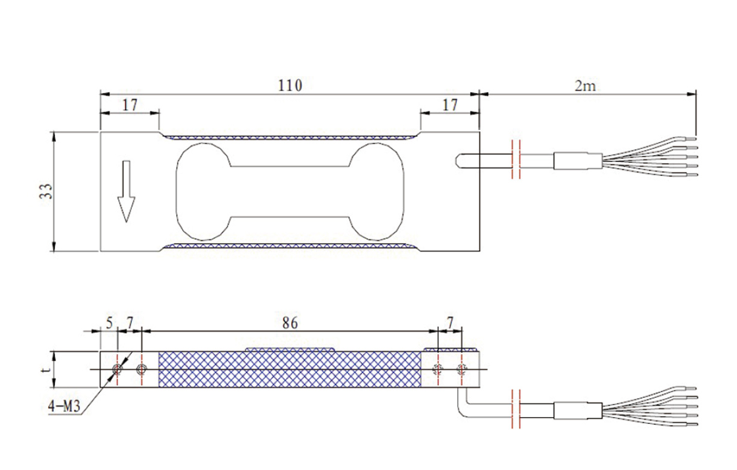

Dimensions(mm)

Specifications

At Brans, we specialize in load cells for the smallest weights. The WL-113 single point load cell proves that high accuracy does not require large size. From micro‑dispensers to laboratory balances, this sensor delivers outstanding performance.
