Features & Applications

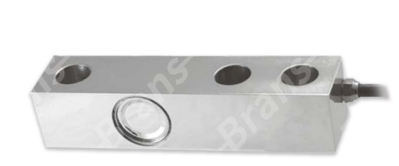

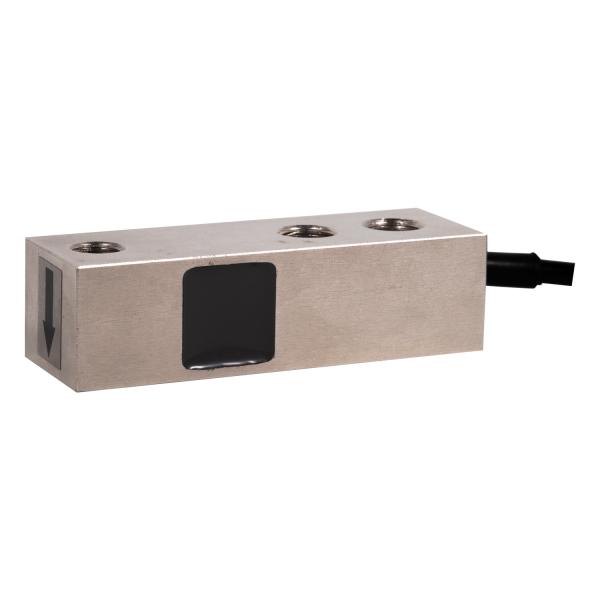

• • The Shear Beam Load Cell is designed with a robust shear beam structure for enhanced durability.

  • Manufactured from alloy steel, this Shear Beam Load Cell offers high strength and reliable performance.

  • Available with maximum capacities from 50kg to 300kg, the Shear Beam Load Cell is suitable for a wide range of applications.

  • Optimized for parallel connection, the Shear Beam Load Cell provides flexible integration into various weighing systems.

  • Ideal for use in ultrathin electronic truck scales, one-track crane scales, and hopper scales, the Shear Beam Load Cell delivers precise measurements in demanding environments.

  • The Shear Beam Load Cell can also be integrated into weighing modules for tank scales, batching scales, and other industrial weighing systems.

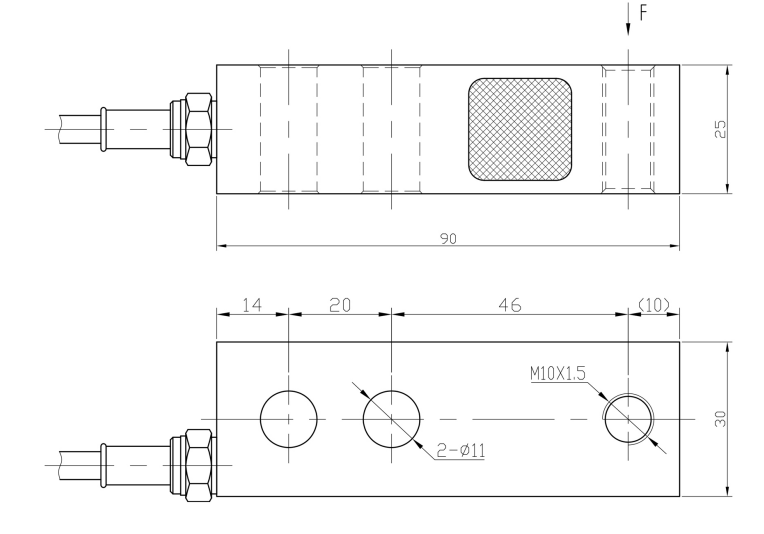

Dimensions(mm)

Specifications

Load direction

Wiring code

Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
