Features & Applications

• • The Shear Beam Load Cell utilizes a shear beam design for reliable and accurate force measurement.

  • Constructed from high-quality stainless steel or alloy steel, this Shear Beam Load Cell ensures durability in demanding environments.

  • With maximum capacities ranging from 0.05t to 10t, the Shear Beam Load Cell is built to handle a broad spectrum of industrial loads.

  • Optimized for parallel connection, the Shear Beam Load Cell offers easy integration and system scalability.

  • Primarily used in ultrathin electronic truck scales, one-track crane scales, and hopper scales, the Shear Beam Load Cell delivers high performance in compact applications.

  • The Shear Beam Load Cell is also ideal for integration into weighing modules for tank scales, batching systems, and other industrial weighing solutions.






Specifications

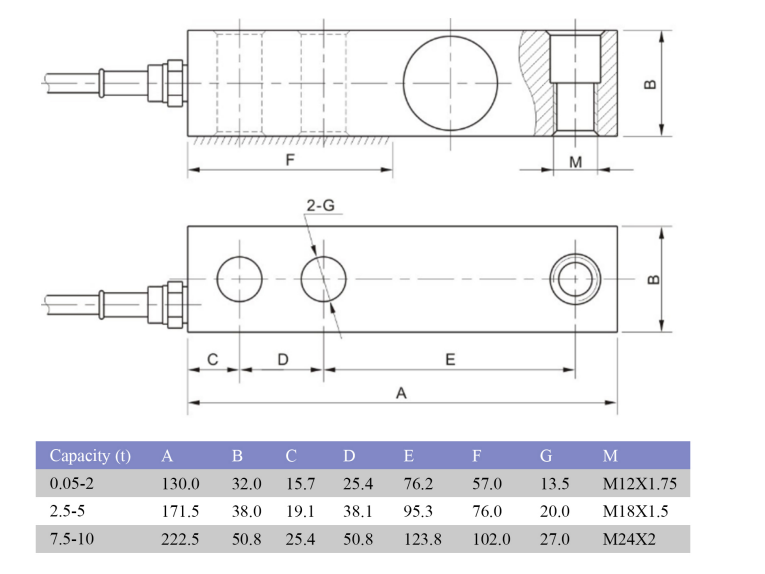

Dimensions(mm)

Load direction

Wiring code

Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
