Features & Applications

• 1. The Pancake or Canister Load Cell model TCF-744A is a large capacity force sensor designed for both tension and compression measurement.

  2. Engineered with high-quality stainless steel or alloy steel, this Pancake or Canister Load Cell is built for strength, accuracy, and durability.

  3. The Pancake or Canister Load Cell offers a wide capacity range from 0.1 to 60 tons, accommodating diverse force measurement needs.

  4. Customizable Pancake or Canister Load Cell configurations are available with different cable lengths, dimensions, capacities, and optional accessories.

  5. Featuring a convenient central threaded hole, the Pancake or Canister Load Cell allows easy mounting of load buttons, eye bolts, and other adapters for direct force loading.

  6. This versatile Pancake or Canister Load Cell is ideal for force monitoring in injection-molding machines, press machines, and material testing equipment.

  7. The Pancake or Canister Load Cell can also be used for weighing applications such as tanks, vessels, and hoppers.

  8. Choose the TCF-744A Pancake or Canister Load Cell for a reliable, adaptable, and high-performance solution in demanding industrial environments.




Specifications

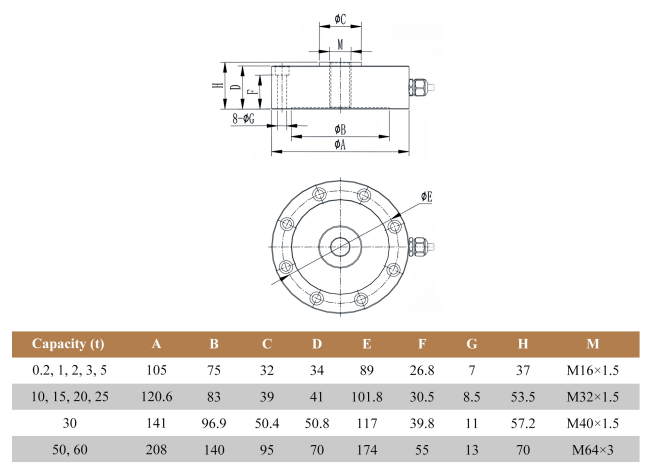

Dimensions(mm)

Load direction

Wiring code

Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
