Features & Applications

• 1. The Pancake or Canister Load Cell WL-141 is a column-style sensor engineered to perform reliably in harsh industrial environments.

  2. Designed for extra-high capacity applications, this Pancake or Canister Load Cell is available in maximum loads of 20, 30, 40, 50, and 60 tons.

  3. Built from durable stainless steel or alloy steel, the Pancake or Canister Load Cell ensures exceptional strength and longevity.

  4. Featuring hermetically sealed argon-arc welded construction with IP68 protection, the Pancake or Canister Load Cell is fully resistant to dust, water, and extreme conditions.

  5. The Pancake or Canister Load Cell incorporates an anti-reversal design, self-restoring function, and simplified installation for reduced downtime.

  6. With strong anti-overload capability and fast dynamic response, the Pancake or Canister Load Cell delivers precise and stable measurements under heavy loads.

  7. The Pancake or Canister Load Cell is widely used in electronic truck scales, dynamic railroad scales, large-capacity hopper scales, and various electronic weighing systems.

  8. Optimize your industrial weighing operations with the high-performance Pancake or Canister Load Cell model WL-141.




Specifications

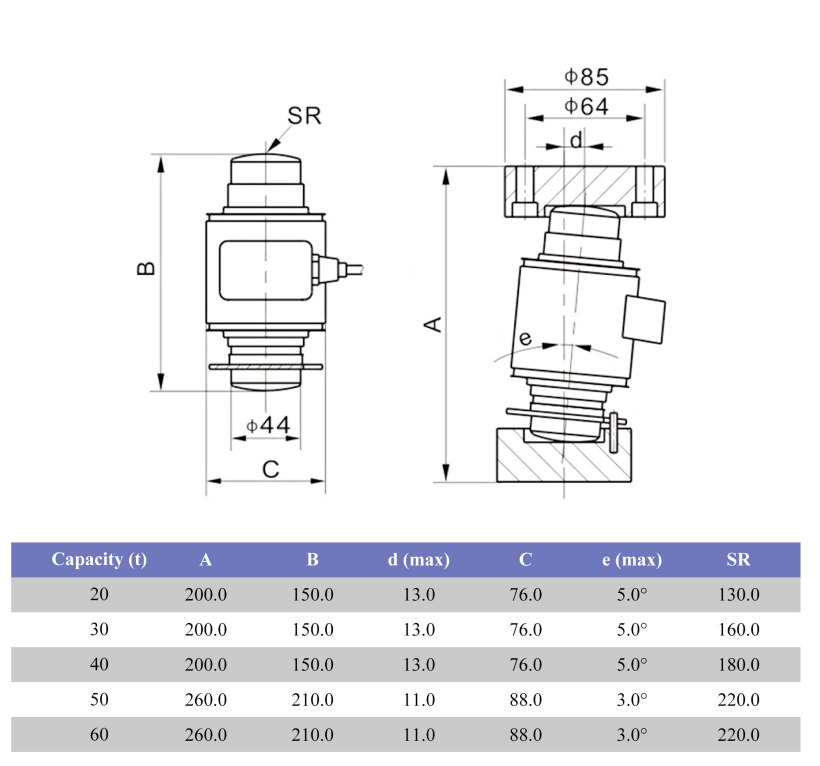

Dimensions(mm)

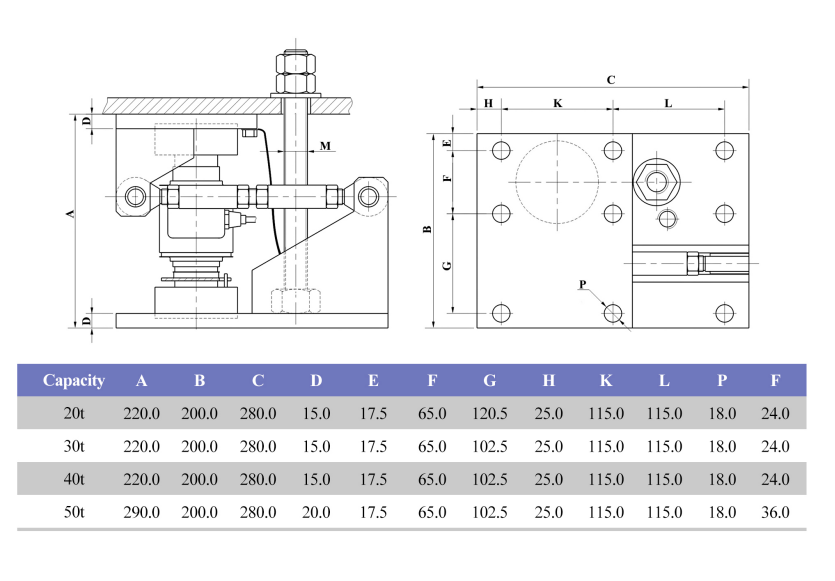

Mounting Kit Dimensions

Load direction

Wiring code

Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
