WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection
WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection
WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection
WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection
Specifications
Brand Name :
Brans
Model Number :
WLSM-132
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T
Supply Ability :
800pcs/Month
Delivery Time :
one week
Capacity :
30g/50g/100g/300g /500g/1kg/2kg
Combined Error :
≤0.005%F.S.
Non-linearity :
≤0.005%F.S.
Repeatability :
≤0.005%F.S.
Rated Output :
1.0mV/V
Zero Balance :
±0.05mV/V
Insulation Resistance :
≧5000MΩ/100VDC
Material :
Aluminum Alloy
Safe Overload :
150%F.S.
Protection Class :
IP66 (Customizable)
Operation Temp. :
-30~80°C
Cable Size :
Ф3.2x4000mm (Customizable)
Description

Features & Applications


    1. The WLSM-132 features a compact, easy-to-install Single Point Load Cell with integrated overload protection for reliable operation.

    2. Engineered for exceptional accuracy, this single point load cell delivers high precision with mg-level resolution.

    3. Offering strong stability, it is the best choice for micro-volume, high-precision weighing, making it an ideal single-point load cell for critical applications.

    4. This high-stability load cell is mainly used for batching, filling, and production quality control in micro-dispensing, medicine, cosmetics, food packaging, and other small packages.


Specifications

Capacity 30g/50g/100g/300g /500g/1kg/2kg
Combined Error ≤0.005%F.S.
Non-linearity ≤0.005%F.S.
Repeatability ≤0.005%F.S.
Rated Output 1.0mV/V
Zero Balance 0.05mV/V
Insulation Resistance ≧5000MΩ/100VDC
Recommended Excitation 2~12VDC
Material Aluminum Alloy
Safe Overload 150%F.S.
Protection Class IP66(Customizable)
Operation Temp. -30~80°C
Cable Size Ф3.2x4000mm(Customizable)
Nominal Displacement <0.05mm

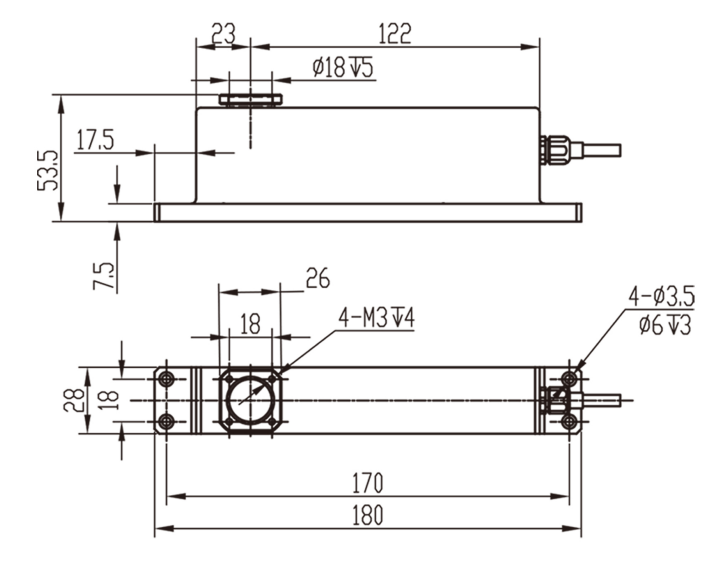

Dimensions(mm)

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection




Load direction


WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection

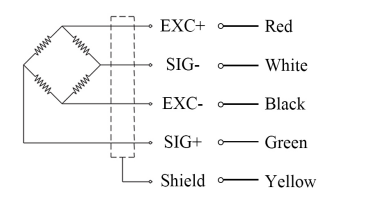

Wiring code

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection



Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.


Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
