Features & Applications

• 1. The Pancake or Canister Load Cell model CF-807 is a high-capacity button-type compression force sensor designed for precision applications.

  2. Built entirely from stainless steel, the Pancake or Canister Load Cell ensures durability and high performance in demanding environments.

  3. Available in large capacities of 50 kN and 100 kN, this Pancake or Canister Load Cell handles significant force measurement needs.

  4. With its low-profile design and small deflection, the Pancake or Canister Load Cell delivers high-accuracy measurements in confined spaces.

  5. The Pancake or Canister Load Cell features a high dynamic response frequency for rapid and reliable force monitoring.

  6. The Pancake or Canister Load Cell is widely used in automotive press fit, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, and mold assembly.

  7. This versatile Pancake or Canister Load Cell integrates seamlessly into various industrial testing and control systems for improved process accuracy.

  8. Choose the CF-807 Pancake or Canister Load Cell for reliable, high-capacity force sensing in automated and high-precision applications.







Specifications

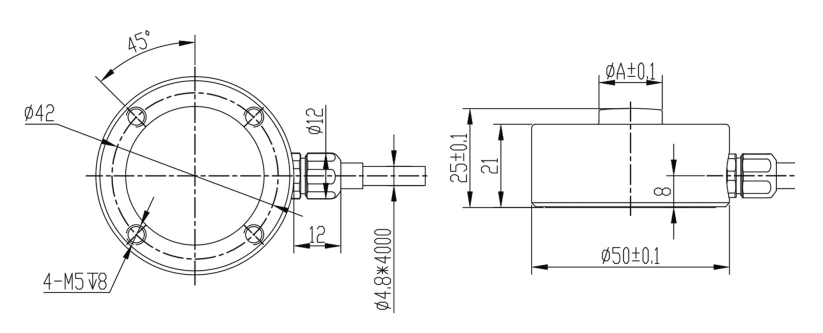

Dimensions(mm)

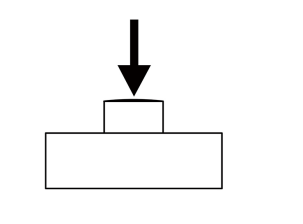

Load direction

Wiring code

Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
