Features & Applications

• 1. The Pancake or Canister Load Cell model CF-822 is a heavy-duty column-type force sensor designed for high-capacity compression applications.

  2. Constructed entirely from durable stainless steel, the Pancake or Canister Load Cell ensures exceptional resistance to corrosion and wear.

  3. With an impressive capacity range from 5 to 200 tons, this Pancake or Canister Load Cell is built to withstand extreme loads.

  4. Featuring a hermetically sealed design with IP68 protection, the Pancake or Canister Load Cell is ideal for operation in wet, dusty, and harsh industrial environments.

  5. The Pancake or Canister Load Cell incorporates an anti-reversal design, self-restoring function, and simple installation process for reliable and low-maintenance performance.

  6. Engineered with strong anti-overload capability and fast dynamic response, the Pancake or Canister Load Cell delivers accurate and stable readings under demanding conditions.

  7. The Pancake or Canister Load Cell is primarily used in electronic truck scales, dynamic railroad scales, large-capacity hopper scales, and other heavy-duty weighing systems.

  8. Equip your most challenging weighing applications with the robust and reliable Pancake or Canister Load Cell model CF-822.

















































Specifications

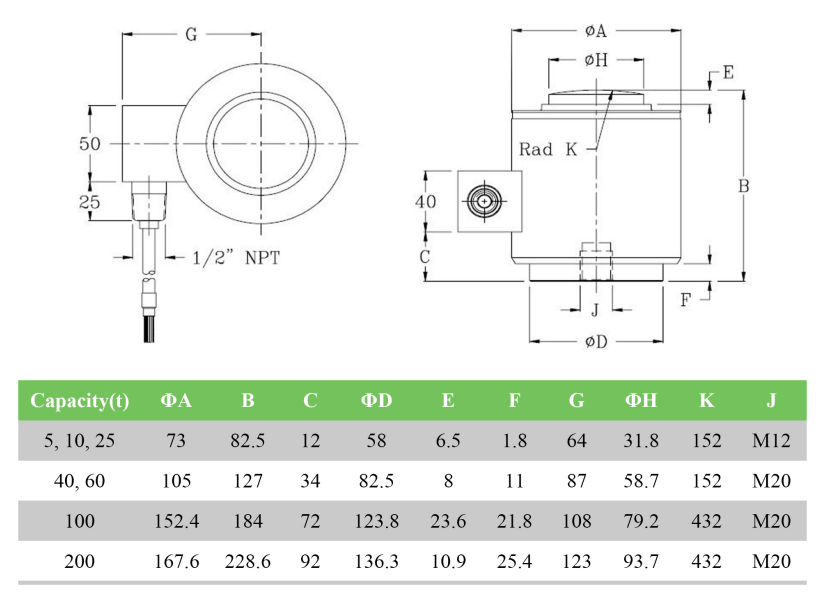

Dimensions(mm)

Load direction

Wiring code

Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
