Features & Applications

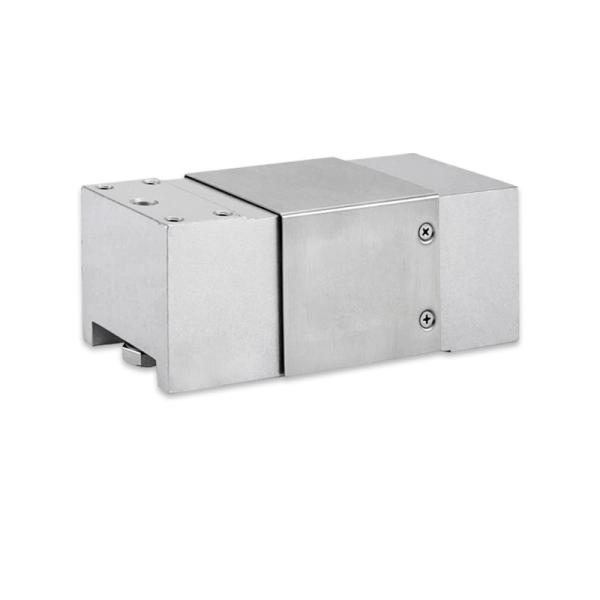

The WL-120 is a single point load cell manufactured from high-strength aluminum alloy, designed for capacities ranging from 50kg up to 1000kg with a maximum platform size of 800×800mm. This single point load cell features a compact structure that supports dynamic weighing, making it suitable for checkweighing systems in building materials, liquid energy, gas filling, canning, and related industrial applications. Different cable lengths and other options are available.

This single point load cell delivers a combined error of ≤±0.017%F.S., non-linearity of ≤±0.017%F.S., and repeatability of ≤±0.017%F.S. Rated output is 2.0±10%mV/V, zero balance is ±0.02mV/V, and insulation resistance is ≥5000MΩ/100VDC. With recommended excitation of 10~15 VDC, this sensor provides stable and repeatable measurements for high-capacity dynamic weighing environments.

The WL-120 offers IP66 protection as standard, with customizable higher ratings available. It operates within -10°C to 40°C, and nominal displacement ranges from 0.3mm to 0.5mm depending on load. Standard cable is Φ5mm × 2000mm, with custom lengths available. Safe overload is 150%F.S., and the robust aluminum alloy construction ensures long-term durability under demanding industrial conditions.

Typical application:

• Building materials: checkweighing of bags, blocks, or bulk materials

• Liquid energy: filling and weight verification for fuel containers

• Gas filling: cylinder weight monitoring for propane, butane, or industrial gases

• Canning lines: fill level verification for canned foods, beverages, or aerosols

• Dynamic checkweighing: in-motion weight sorting on conveyor systems

• Industrial platform scales: large-format weighing up to 800×800mm platform
