WLSM-132 mg Level Precision Load Cell Module 30g-2kg For Medicine & Cosmetics

Features & Applications

• The WLSM-132 is a high accuracy load cell weighing module constructed from aluminum alloy, designed for capacities ranging from 30g to 2kg. This weighing module features a compact structure for easy installation and includes integrated overload protection. With mg-level resolution and strong stability, it is the best choice for micro-volume high-precision weighing. It is mainly used for batching, filling, and production quality control in micro-dispensing metering, medicine, cosmetics, food packaging, and other small package applications. Custom cable lengths and other options are available.

  This weighing module delivers a combined error of ≤0.005%F.S., non-linearity of ≤0.005%F.S., and repeatability of ≤0.005%F.S. Rated output is ~1.0mV/V, zero balance is ±0.05mV/V, and insulation resistance is ≥5000MΩ/100VDC. With recommended excitation of 2~15 VDC, this module provides exceptional accuracy and repeatability for ultra-precision weighing tasks.

  The WLSM-132 offers IP66 protection as standard, with customizable higher ratings available. It operates within a wide temperature range of -30°C to 80°C. Nominal displacement is ≤0.05mm, ensuring extremely low mechanical deflection. Standard cable is Φ3.2mm × 4000mm, with custom lengths available. Safe overload is 150%F.S., and the integrated overload protection prevents damage from accidental load spikes. The aluminum alloy construction ensures lightweight durability.




  Typical application scenarios

  • Micro-dispensing metering: precise control of small-volume liquids or powders

  • Pharmaceutical batching: dosing and quality control for medicine packaging

  • Cosmetics filling: filling machines for creams, lotions, and serums

  • Food packaging: weighing small packages of snacks, spices, or ingredients

  • Production quality control: checkweighers and sortation systems

  • Laboratory and research: mg-level precision weighing for delicate experiments







Specifications

Capacity	30g/50g/100g/300g /500g/1kg/2kg
Combined Error	≤0.005%F.S.
Non-linearity	≤0.005%F.S.
Repeatability	≤0.005%F.S.
Rated Output	1.0mV/V
Zero Balance	0.05mV/V
Insulation Resistance	≧5000MΩ/100VDC
Recommended Excitation	2~12VDC
Material	Aluminum Alloy
Safe Overload	150%F.S.
Protection Class	IP66(Customizable)
Operation Temp.	-30~80°C
Cable Size	Ф3.2x4000mm(Customizable)
Nominal Displacement	<0.05mm

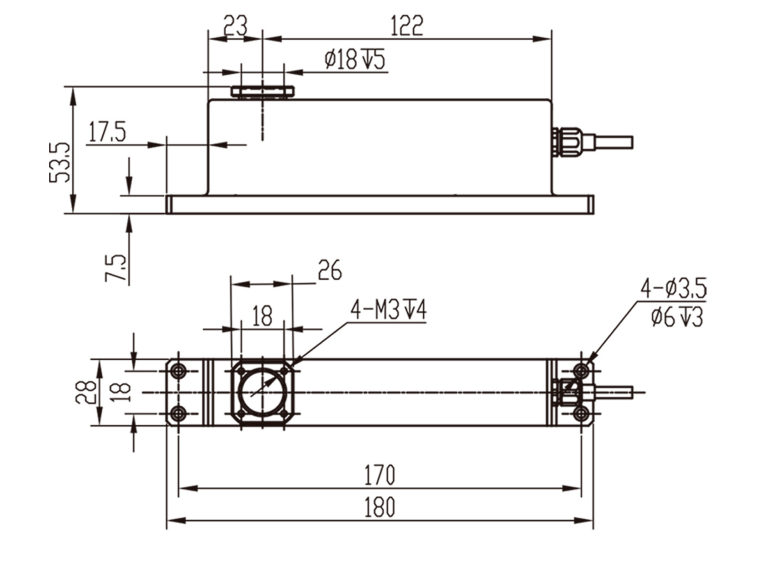

Dimensions(mm)

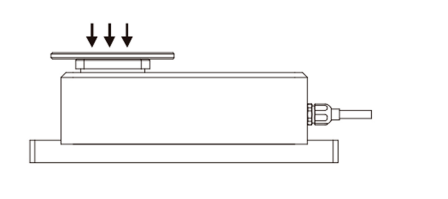

Load direction

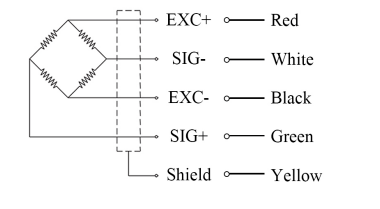

Wiring code
