Steel Wire Rope Closing Machine with 1+6 Structure 1860MPa Tensile Strength and 0.1-1.2mm Outlet Diameter

Specifications

Certification :

REACH, RoHS, ISO, CE

MOQ :

Price :

100000

Model NO. :

8/2500

Type :

LZ Straight-Line Metal Drawing Machine

Outlet Diameter :

0.1-1.2mm

Max Inlet Diameter :

14mm

Block Diameter :

1200mm

Max Block Number :

Structure :

1+6

Strand Diameter :

9.53-17.8mm

Tensile Strength :

Minimum 1860MPa

Production Capacity :

100 Sets/Year

Working System :

Three shifts

Annual Working Hours :

8760

Plan Stop Time :

576

Working Hours :

8184

Efficient Working Time :

6299

Description

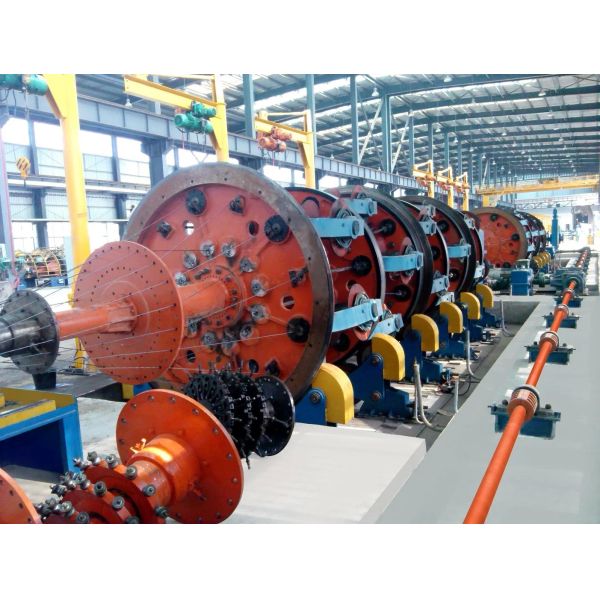

Steel wire rope stranding machine/ closing machine

No.	Structure	Strand diameter mm	Strength MPa	Marks
1	1+6	Φ9.53	≥1860
2	1+6	12.7	≥1860
3	1+6	15.2	≥1860
4	1+6	17.8	≥1860

I. Features of Machine:
1) Skip type stranding machine 1+6×1250
Skip type stranding machine, each group have 7 pcs Φ1250 bobbins, unit set have motor drive.

2)  Die and Forming:
    Synthesized formwork have die which suit for different size inside, can adjust lengthwise position by manual regulate the screw.
    Forming device's forming wheel can be manual fine adjustable. Machine use cylinder open, easy operation, running reliable, avoid wire strand scattered.

No.	Name	Quantity	Note
1	Stranding machine	1
2	Synthesized Die	1
3	Forming	1
4	First tension device	1
5	Medium frequency furnace	1
6	Water cooling trough	1
7	Second tension device	1
8	Constant tension device	2
9	Pay off and take up	2
10	Wire arranging	1
11	Layer winding	1
12	Control system	1

Working system:
Continuous working system, without stop in the festival and holidays, machine is running at 3shifts one day, annual examine and repair system, working time plans as follows:
Annual working schedule

Working system	Total hours per year (h)	Plan stop time	Working hours (h)	Non-planed stop time(h)			Annual efficient working time (h)
Working system	Total hours per year (h)	Repair (h)	Working hours (h)	Change bobbins	Change Size	Maintain failure	Annual efficient working time (h)
Three shifts	8760	576	8184	1364	180	341	6299

Note: 1:Annual day is 365 days.
2:Plan repair days calculate as 2days/month.

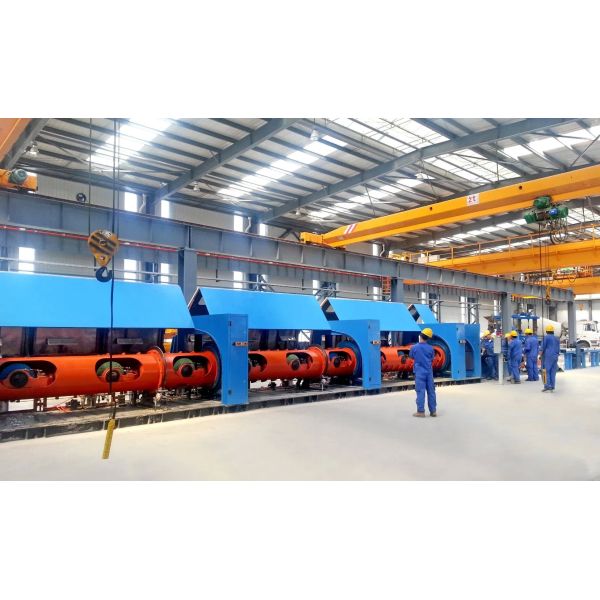

IV. Our Workshop:
