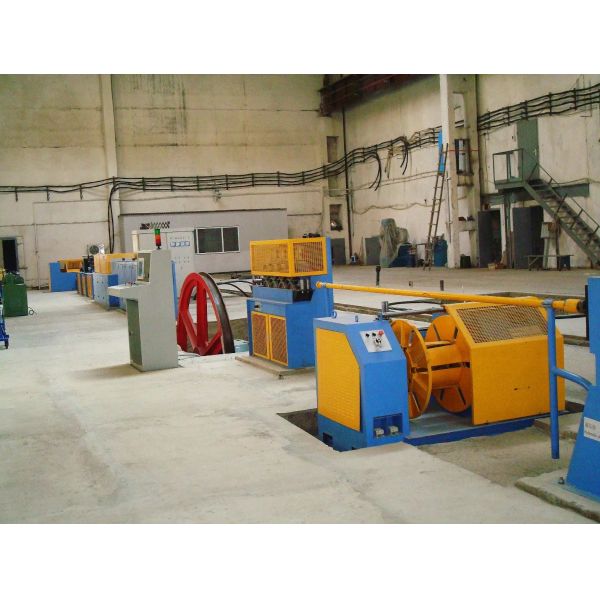

High Speed PC Bar Production Line for 7mm-13mm Diameter Prestressed Concrete Bars with 90-100m/min Working Speed and ≤950ºC Quenching Temp

Specifications

Certification :

GS, RoHS, ISO, CE

MOQ :

Price :

50000

Model NO. :

7mm-13mm

Diameter :

Φ 7.0-13.0mm

Working speed :

90-100m/min for φ7.1mm; 80-90m/min for φ9.0mm; 65-70m/min for φ10.7mm; 40-45m/min for φ12.6mm

Induction quenching temp. :

≤950ºC constant and adjustable

Induction tempering temp. :

≤450ºC constant and adjustable

Temp. control accuracy :

≤ ±5ºC

Take-up coil dimension :

φ1800-φ2400mm

Pay-off type :

Horizontal rotating type

Center elevation :

1000mm

Production method :

Continuous production

Raw material :

30MnSi,30Si2Mn and other alloy spring steels

Production capacity :

500 Sets/Year

Transport package :

Seaworthy Packing

Finished products standard :

GBT5223.3-2005, JISG3137-1994

HS Code :

846330

Description

PC Bar Production Line

I. Whole Work Flow:

Pay off → Wire arranging→ Mechanical descaling→ Horizontal type wire drawing and forming machine → Vertical and horizontal straightening → Three roll clamping and driving→ Cleaning unit →Heating No.1 →Heating No.2 →Heating No.3 → Heat Preservation → Cooling for Quenching → Induction Tempering → Heat Preservation →Cooling for Tempering →Three roll clamping and driving → Shearing → Wire separating → Wire take-up

II. Main Technical Parameters:

No.	Item	Specification
1	Raw material	30MnSi,30Si₂Mn and other alloy spring steels
2	Diameter	Φ 7.0-13.0mm
3	Working speed	90-100m/min for type φ 7.1mm; 80-90m / min for type φ9.0mm; 65-70m/min for type φ 10.7mm; 40-45m/min for type φ 12.6mm.
4	Induction quenching temp.	≤950ºC constant and adjustable
5	Induction tempering temp.	≤450ºC constant and adjustable
6	Temp. control accuracy	≤ ±5ºC
7	Take-up coil dimension	φ1800-φ2400mm
8	Pay-off	Horizontal rotating type pay off
9	Center elevation	1000mm
10	Production method	Continuous production
11	Finished products	1) Products keep consistence with "GBT5223.3-2005" and "JISG3137-1994"

III. Details of machine for reference:
