Specifications
Capacity :
160,180,200,225,250,280,315
Motor Power :
6.25KW
Brand Name :
SUNTECHMACH
Model Number :
SHT315-SHY
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
$1140.00--$1650.00/SET
Payment Terms :
T/T
Supply Ability :
2000 sets/month
Delivery Time :
30days
Packaging Details :
Polywood packing
Heating Plate :
PTFE, 270°C +/-5°C
Type :
Hydraulic Butt Fusion
Model :
SHT315-SHY
Warranty :
1 Year
Operation :
Hydraulic
Frame Packing :
103x66x64 cm
Compatible Materials :
PE, HDPE, PP, PVDF
Product name :
90mm-315mm PE HDPE Plastic Pipe Welding Machine Hydraulic Butt Fusion Welding Equipment
Model number :
SHT315-SHY
Heating plate max.temperature :
270 degree
Power :
6.25Kw
Function :
Cutting and welding plastic pvc, pe, pp tube
Frame packing size :
103*66*64cm
Heating plate packing size :
66*55*68cm
Control box packing size :
70*53*53cm
Description

SHT315-SHY Hydraulic Butt Fusion Welding Machine — 90mm to 315mm

6.25KW Heating · 270°C Max · Hydraulic Operation · 4 Available Models · PE / HDPE / PP / PVDF

🔃 Hydraulic System 📏 90-315mm Range ⚡ 6.25KW Power 🔬 270°C Plate

🔍Hydraulic Butt Fusion — The Power-Assisted Advantage for Medium Pipe

Contractor ConcernSHT-SHY Hydraulic Butt Fusion Solution
Manual fusion machines are exhausting for 200-315mm pipe — operator fatigue affects weld qualityHydraulic power assistance eliminates manual effort. Consistent, controlled pressure from 90mm to 315mm. Hydraulic clamping and joining force ensures every weld receives identical pressure regardless of operator strength or fatigue.
Different project phases need different pipe sizes — one fixed-range machine is not enough4 available models covering 63-315mm. SHT160-SHY (63-160mm), SHT200-SHY (63-200mm), SHT250-SHY (90-250mm), SHT315-SHY (160-315mm). Select the machine that matches your primary pipe range.
Inconsistent heating on larger diameters leads to cold spots and weld failures6.25KW heating plate with precise 270°C control and +/-5°C temperature accuracy. Uniform heat across the full pipe face. PTFE non-stick coating ensures material does not adhere to the heating plate.
Hydraulic systems leak and fail in field conditionsIndustrial-grade hydraulic unit with reinforced seals and hoses. Designed for construction site durability. Packaged in a separate protective case for transport. Simple maintenance with standard hydraulic components.
Switching between pipe sizes takes too long on the jobQuick-change clamp inserts for each pipe diameter. Hydraulic clamping speeds up pipe loading and alignment. Dedicated control box with intuitive pressure and temperature management.
Machine arrives in pieces — complex assembly delays project start3-case modular packaging: frame, heating plate, and control box. Each component self-contained with quick-connect interfaces. Clear documentation for straightforward on-site assembly.

📐Technical Specifications (SHT315-SHY)

ModelSHT315-SHY
Working Range160 - 315mm
Pipe Sizes160, 180, 200, 225, 250, 280, 315mm
Motor Power6.25KW
Heating Plate Max Temp270°C (+/-5°C)
Operation TypeHydraulic
Heating Plate CoatingPTFE Non-Stick
Compatible MaterialsPE, HDPE, PP, PVDF
Frame Packing103 x 66 x 64 cm
Heating Plate Packing66 x 55 x 68 cm
Control Box Packing70 x 53 x 53 cm

⚡Hydraulic Advantage — Power Where It Counts

🔃 Hydraulic Operation System
Powered clamping and joining force replaces manual effort. Consistent pressure control for every weld cycle. Ideal for production environments where operators weld pipe continuously.
⚙ 6.25KW Heating Power
Rapid heat-up to 270°C with precise +/-5°C temperature control. Even heat distribution across the plate surface. Suitable for PE, HDPE, PP, and PVDF pipe materials.
📏 4 Model Options
Choose the size that matches your project range. SHT160-SHY through SHT315-SHY. Each optimized for its diameter range — no oversized machine consuming extra power and space.

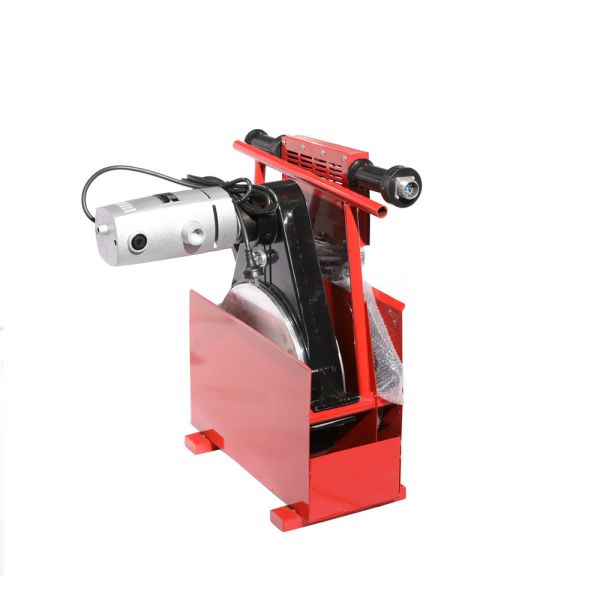

🔬 PTFE Heating Plate
Non-stick coating prevents material adhesion. Clean release after every heating cycle. Extended plate life with proper maintenance and cleaning.
📦 Modular 3-Case Transport
Frame case: 103x66x64cm. Heating plate case: 66x55x68cm. Control box case: 70x53x53cm. Compact enough for standard sea freight and truck transport.
🌐 Multi-Material Compatibility
Engineered for PE, HDPE, PP, and PVDF thermoplastics. Adjustable temperature and pressure parameters for each material type. One machine for all your plastic pipe welding needs.

📏Choose Your Model — 4 Sizes Available

SHT160-SHY
63 - 160mm
SHT200-SHY
63 - 200mm
SHT250-SHY
90 - 250mm
SHT315-SHY
160 - 315mm

📊Manual vs. Hydraulic Butt Fusion — The Difference Matters at 200mm+

FactorManual Butt Fusion WelderSHT-SHY Hydraulic Welder
Clamping Force🔴 Manual — operator dependent🟢 Hydraulic — consistent every time
Joining Pressure🔴 Physical effort varies🟢 Controlled hydraulic pressure
Operator Fatigue🔴 High on 200mm+ pipe🟢 Minimal — hydraulics do the work
Weld Consistency🟡 Varies between operators🟢 Uniform — pressure is automated
Production Speed🟡 Slower with fatigue🟢 Consistent throughput all day
Ongoing Cost🟢 Lower maintenance🟢 Recovers through productivity
💡 Recommended Applications: Municipal water distribution networks · Irrigation mainline construction · Industrial process piping · Gas distribution laterals · Mining dewatering lines · Sewage force mains. The hydraulic system delivers consistent performance across all project types.

🚀 Let Hydraulics Handle the Heavy Work — Consistent Welds, Less Fatigue

SHT315-SHY Hydraulic Butt Fusion Welding Machine. 90-315mm Range. 6.25KW. 4 Models. ISO Certified. Inquire for pricing and model selection today.
