Specifications
Brand Name :
BINPENG
Model Number :
DQJ120
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
FOB NINGBO
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per months
Delivery Time :
5-8 work days
Packaging Details :
Wooden case package
Name :
Round corner cutter machine
Functions :
Round corner cutting ,trimmer or guillotine
Speed :
up to 90 times / minuter
Voltage :
220/380v
Min cutting width :
5mm
Max cutting height :
Perfect up to 100mm ,and max could be 120mm
Workbench size :
normal 220x280 ,special could be 300x400 or more bigger
Description

Paper cutting machine BPDQJ120 for paper single angel round corner cutter

Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner CutterPaper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner CutterPaper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter

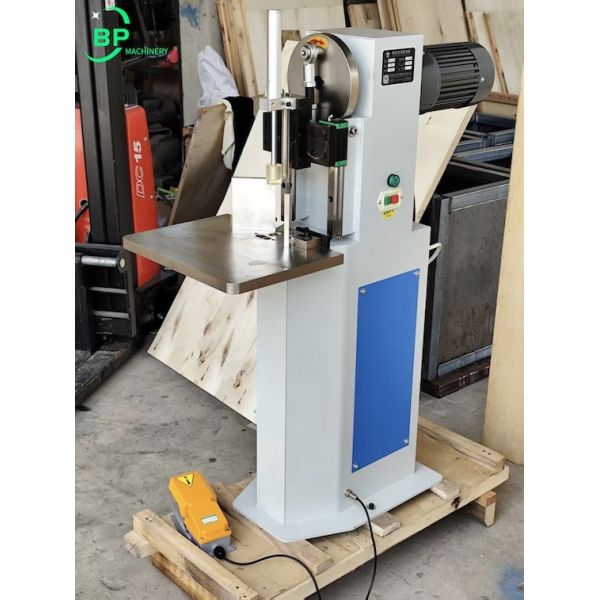

BPDQJ120 model round corner cutting machine is produced by Ningbo Binpeng Machinery , is a semi automatic single head round corner cutter designed for different kinds of notebooks, exercise books, stitched books, sewed books, spiral binding books,etc.

Application

Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner CutterPaper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner CutterPaper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter

Feature

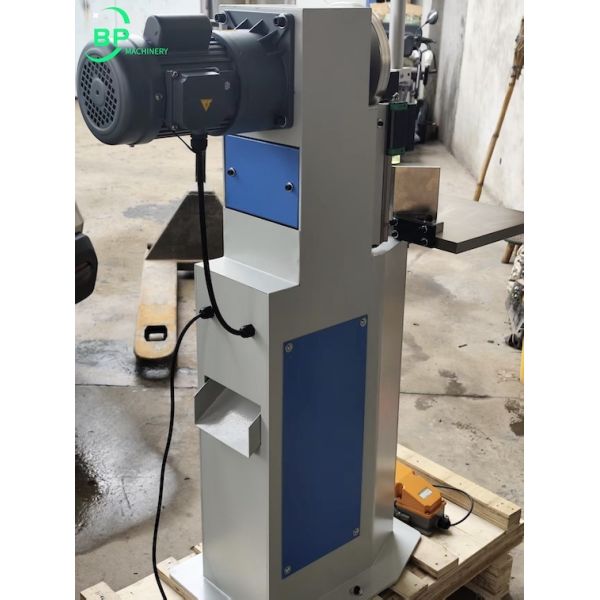

1.Electronic clutch (no need for oil lubrication, no mechanical faults), equipped with a powerful 1100-watt gear reduction motor.The motor operates only during cutting, stopping when not in use, saving 2-3 times more energy than standard models.

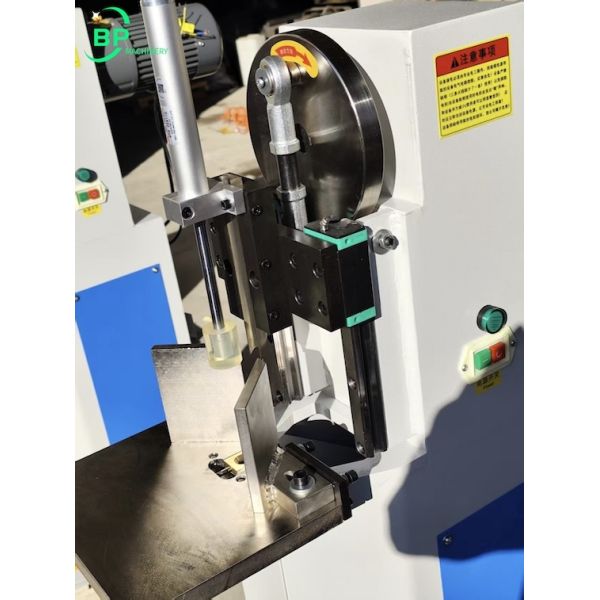

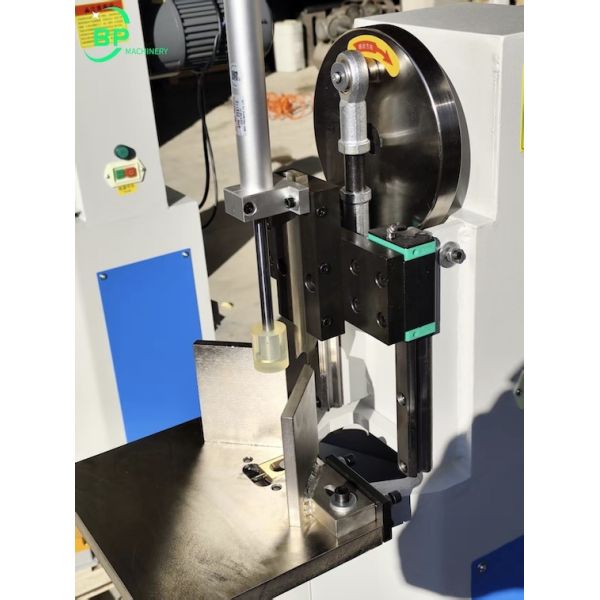

2.Precision linear guide slider (high accuracy, wear-resistant, does not cut copper pads).
3.Includes waste material centralized channel, foot pedal control switch.
4.Vertical adjustment of tool for uniform cutting; resolves issues such as inconsistent upper and lower cutting, copper pad cutting after slider wear, and burrs on corners.
5.Energy-efficient, motor with independent air cooling, longer service life, dual-use for rounded and right angles.
6.Comes with cast iron platform and whole machine spray painting process.

The function is the same as the Manual Corner Cutter, but driven by a reduction gearbox with electric power, controlled by the mechanical clutch, so the maximum trimming pile heigh can be 120mm, save labor, high efficiency, R3.1-R15.9 round corner trimming blades are for choosing, easy operation, cutting accurate.

Technical data :

Voltage 220V/380V
Dimension(L*W*H) 1150*550*1350mm
Weight 300kg
Production Capacity 90 times/min
Min. Cutting width 5mm
Max. Cutting height 100mm
Max. workable width 460mm

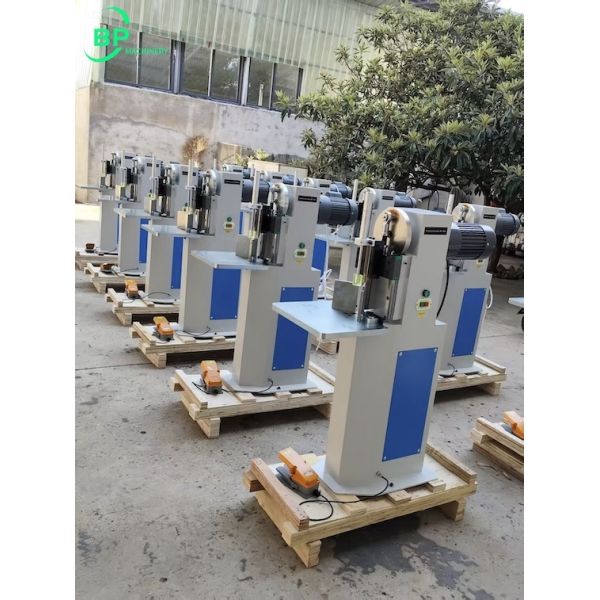

For more pictures :

Paper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner CutterPaper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner CutterPaper Cutting Machine BPDQJ120 For Paper Single Angel Round Corner Cutter
