Intelligent High-Speed Rigid Box Production Line 20-30pcs/min

Specifications

Brand Name :

Lishunyuan

Model Number :

LY-HB1200CM

Certification :

Place of Origin :

CHINA

MOQ :

Price :

Negotiated price

Payment Terms :

L/C, T/T

Supply Ability :

20 sets per month

Delivery Time :

15 days

Packaging Details :

pack in wooden case

Type :

Rigid Box Making Machine

Working Speed :

25-30pcs/min

Local Service :

India,Malasia,Korea,Turkey, Italy, Spain,Vietman

Warranty :

1 Year

Product name :

,Automatic Rigid Box Making Machine

After-sales service provided :

Engineers available to service machinery overseas

Description

Automatic Intelligent Rigid Box Making Machine

Description

LY-1200CM Automatic Intelligent Rigid Box Machine is the one of the most advanced fully auto box machines by our company. It is suitable to make various types of rigid boxes to improve the production, such as mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, slanting boxes etc. More suitable for current packing market. Machine’s appearance is new design which is safer and more beautiful.

Features

1. Adopts PLC and man-machine control, camera tracing system

2. Can automatically feed cover paper, feed grey board, paste four corners, spot grey board, lift box, wrap box, fold corner edges and form box.

3. Enjoy high accuracy, easy adjusting, and less time consumption.

4. The spot unit adopts Germany camera with 10 million pixel and robot arm to pick and spot the grey board.

5. The forming unit employs Japan ABBA linear slider and virtual cam driving system.

6. Guaranteeing the stable quality and fluent movement and enlarge the folding-in depth.

Parameters

Specifications:
Paper Size	W: 95 - 600mm
	L: 180 - 880mm
Paper thickness	80-300g/m2
Max.paper stacking height	800mm
Cardboard thickness	1-3mm
Finished box size WLH	L: 100 - 600mm
	W: 80 - 400mm
	H: 15 - 110mm
Ear overlapping size	7 - 100mm
Ear cross ear folding size	120mm
Production rate	25 - 30pcs/min
Setting time	10 - 15mins
Precision	±0.05mm
Power Supply	380V/50Hz
Max power	37kw/380v
Air pressure	0.5-0.7mpa/320NL/min
Glue tank volume	30KG
Machine weight	7500KG
Machine size	L8000W1700H3300mm

Sample Boxes

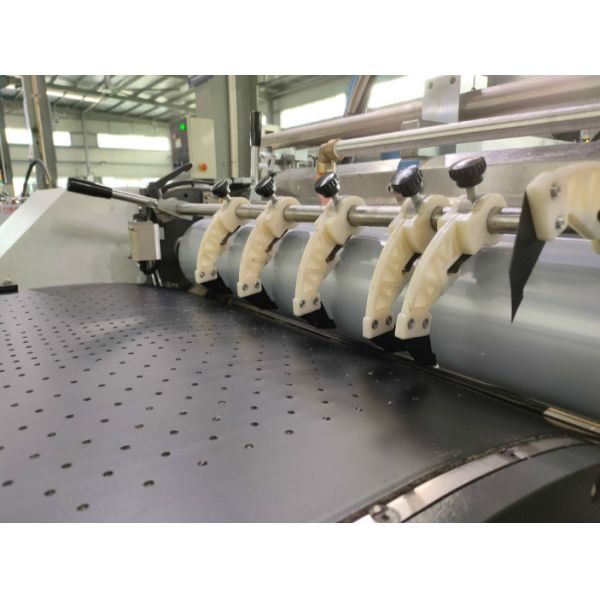

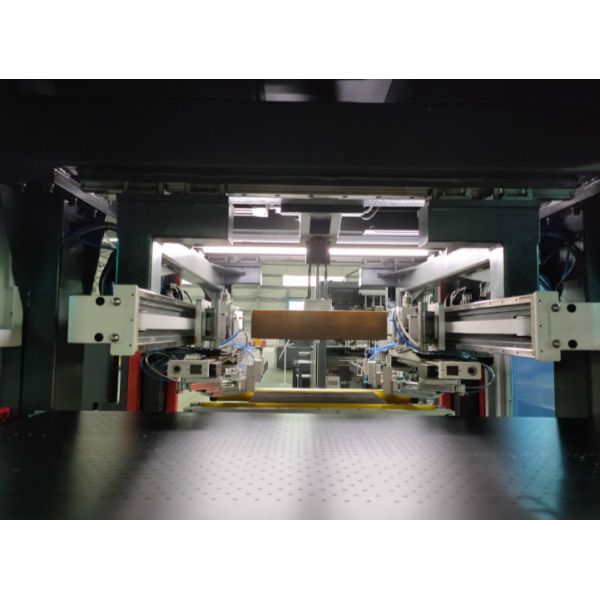

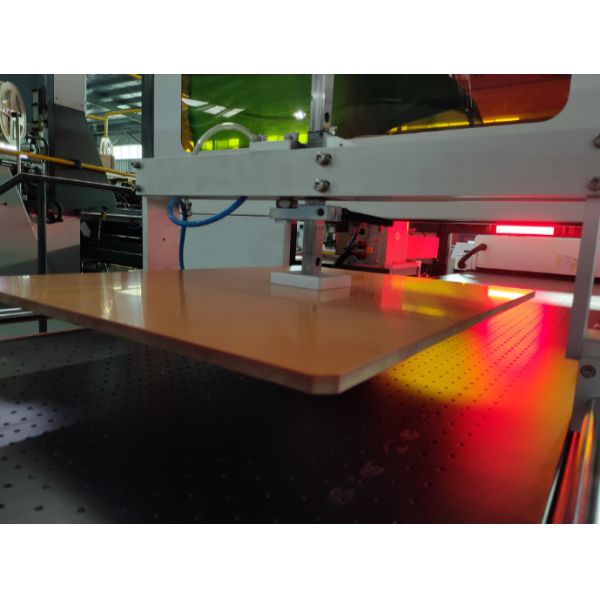

Detailed Images

Company Introduction

Established in 2001, Lishunyuan is located in Nanya Industrial Zone of Daojiao Town, Dongguan, Guangdong, with a modern standardized workshop spanning 20,000 square meters. Through 17 years of development, we’ve built a full-fledged domestic sales and after-sales service system; our products are sold all over China and exported to more than 40 countries and regions in Europe, the US, Southeast Asia, South America, the Middle East, Africa and beyond.
Innovation is Lishunyuan’s core competitiveness. We hold independent intellectual property rights for our product lines, including rigid box machines and clamshell box machines, which are widely used to produce premium boutique boxes like gift boxes, mobile phone boxes, cosmetic boxes and liquor boxes.
