Specifications
Brand Name :
Lishunyuan
Model Number :
LY-HB3000CZ
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30 sets/month
Delivery Time :
20days
Packaging Details :
Film and plywood crate
Model :
LY-HB3000CZ
Name :
Intelligent Integrated Top-Bottom Box Production Line
Total power :
25KW
Weight :
8200kg
Positioning Accuracy :
0.05mm
Speed :
50-70pcs/min
Description

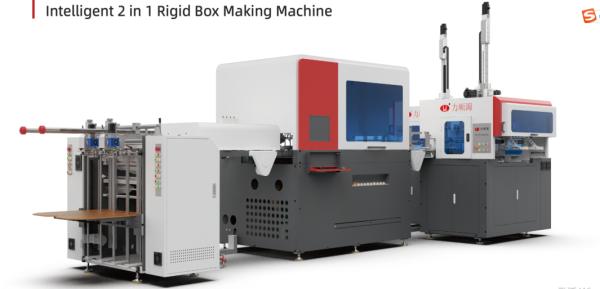

Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute

Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute

1.Shortest Change-over-time, thereby saving precious machine time

2.Uses highly accurate Visual Robot arm positioning with German multiple camera system

3.Dual Forming stations for high output

4.Includes in-line Bubble pressing module

5.Production speed upto 66 pcs/min for do one size production

6.Positioning accuracy ±0.05mm

7.Change-over-time (job transfer time) in 30 Minutes

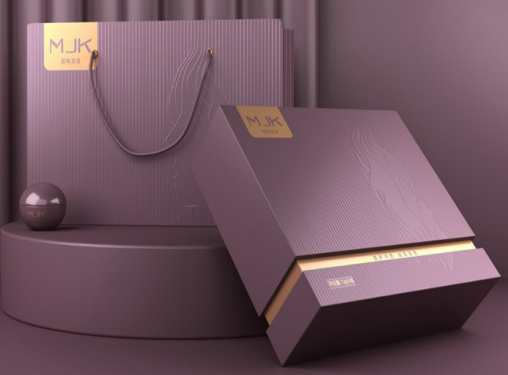

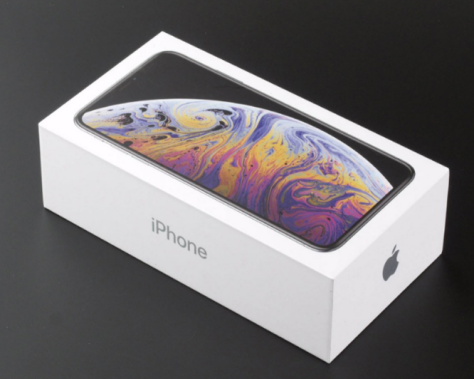

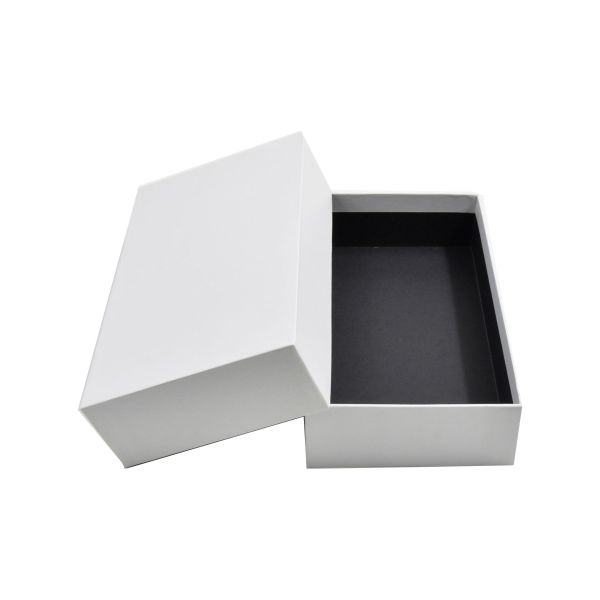

8.Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…

Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per MinuteIntelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute

Excel cut consists of following sections:

Feeder

Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per MinuteIntelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute

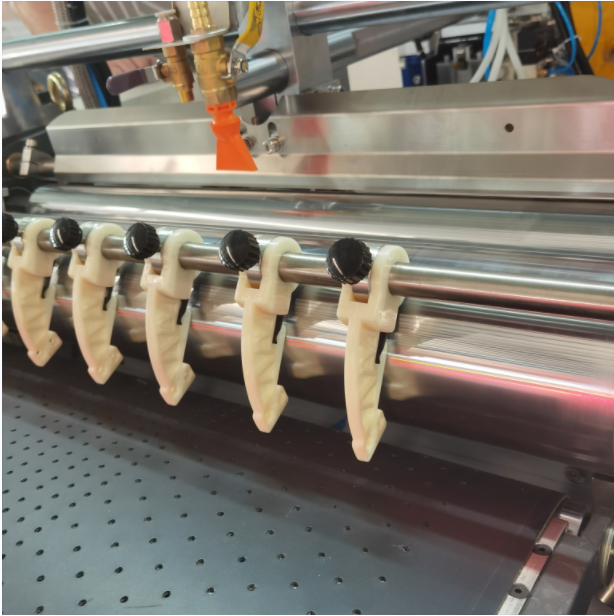

1.Feeder is controlled by a servo motor
2. Paper-feed-in overturn function
3. Big diameter pneumatic vacuum control valves
4. The rubber pressure roller for the feeding-in paper
5. Antistatic platform for paper
6. The automatic lifting function for feeding stack
7. Feeding stack auto stop when top paper in position Feeder control by servo motor
8.Independent controlled paper feeding table and independently controlled sheet roller.
9.Avoid the inconsistency of the length of the paper between the two sheets

Positioning

Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per MinuteIntelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute

Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute

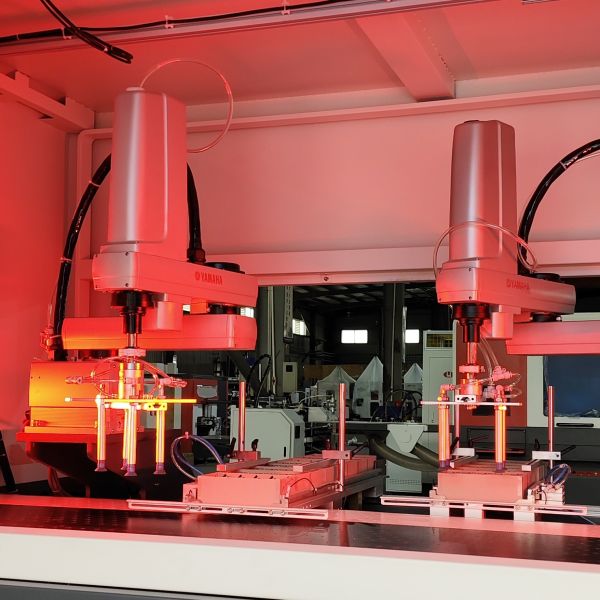

1 . YAMAHA Robot Arm for spotting the box

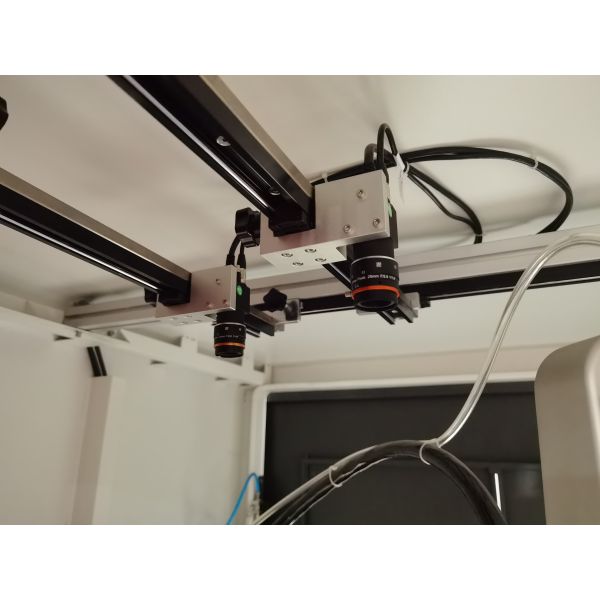

2. German Balser camera with Japanese Lens in 10 million Pixel tracing system
3. 4 Cameras with double robots arms working XY Spool for positioning.

Specifications:
Paper Size W:95 - 600mm
L: 120-880mm
Paper thickness 80-350g/m2
Max.paper stacking height 800mm
Cardboard thickness 1-3mm
Finished box size W*L*H L:55-400mm
W:35-350mm
H:8-140mm
Ear overlapping size 10-120mm
Production Capacity 56-66pcs/min
Setting time 40-50mins
Precision ±0.05mm
Power Supply 380V/50Hz
Max power 39kw
Air pressure 0.5-0.7mpa/320NL/min
Glue tank volume 50kg
Machine weight 8100kg
Machine size L8900*W5600*H3300mm

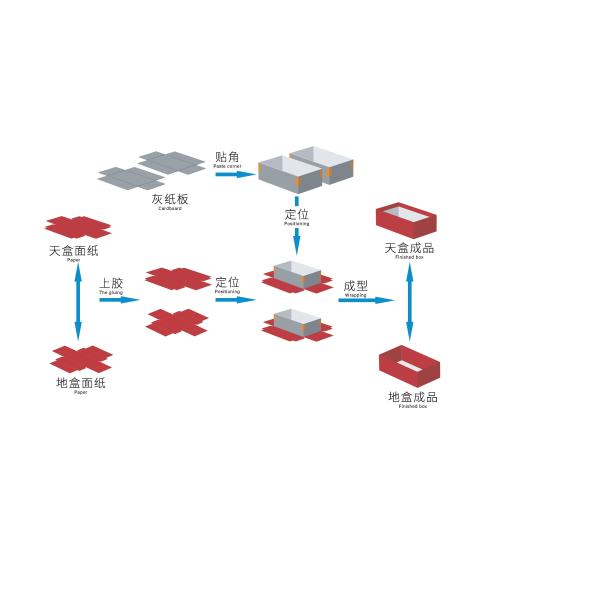

Technological Process

Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute

About us
Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute
Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute

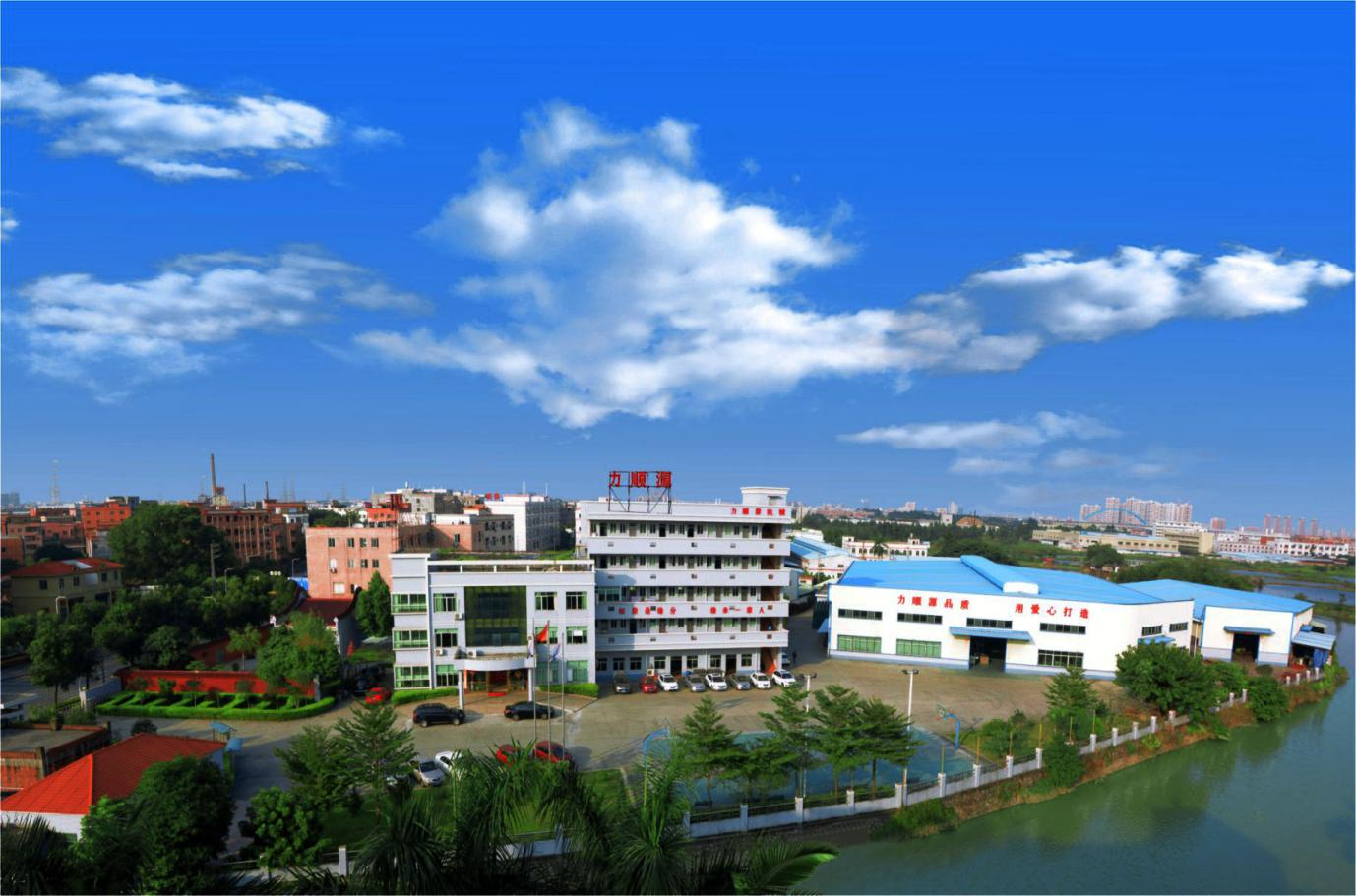

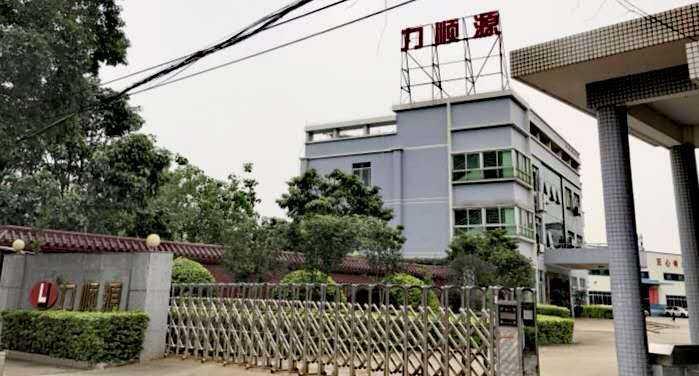

LiShunYuan, founded in 2001, with the aim of developing machines for automating the Rigid Box making process. By 2009 Lishunyuan developed the its first fully automatic line which changed the industry standards. For this innovation the company won the “Excellent Enterprise” & “Best Creativity Award” at the International Industrial Automation Design Seminar.
Over the years, Lishunyuan has a claim to over 200 process patents and over 100 product quality attestations.
The current version of the machine is in its 5th generation

1.More than 20000 m2 coverage of manufacturing base
2.Machining and R&D advantage
3.Machine integrated with world class brand
4.Certifications, Patents, Software Copyright

Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute

Intelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per MinuteIntelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per MinuteIntelligent 2 in 1 Rigid Box Production Line Rate 70 Pieces Per Minute

GUARANTEE
1 Quality guarantee: The Seller shall guarantee that the machine hereof is brand-new and in compliance in all respects with the quality, specifications and performance stipulated in this contract.
2 Guarantee period: The guarantee period is 12 months from the date of installation.
If the installation is not requested within 30 days of machine reaching the customer port, the warranty time will begin from the B/L date.
3 The Seller guarantees normal operation of the machine within the guarantee period, providing that such malfunction or defective part is not caused by negligence on the part of the Buyer.
