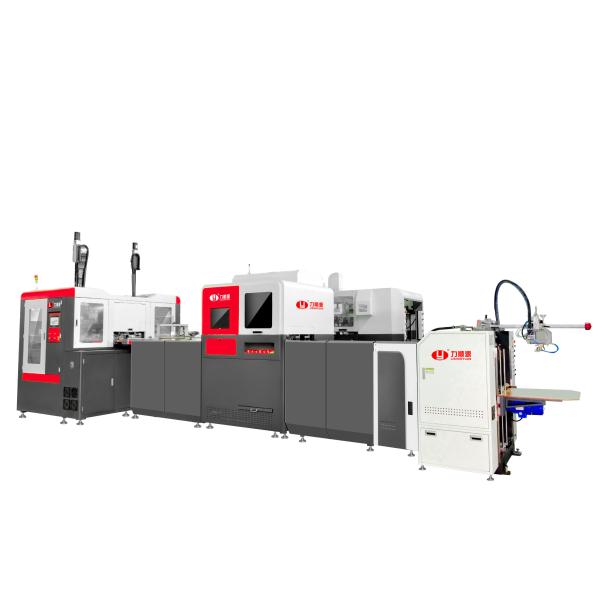

Rigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box Making
Rigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box Making
Specifications
Model Number :
LY-HB2500CK
Brand Name :
Lishunyuan
MOQ :
1 Set
Delivery Time :
30 days
Weight :
7500kg
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Condition :
New
Warranty :
1 Year
Packaging Details :
Plywood crate
Price :
Negotiate
Automation :
Full-automatic
Certification :
CE
Place of Origin :
China
Supply Ability :
10 sets per month
Machine type :
Rigid Box Forming Machine
After-sales service provided :
Engineers available to service machinery overseas
Description

Automatic Intelligent High-production Rigid Box making Line suitable for the rigid boxes​

Description

The Features of LY-HB2500CK: Automation, Infprmationization, intelligentization&IOT fuctions(Real-time monitoring of facility’s running state, parameters and the consupmtion of gas and power). Suitable for the production of rigid boxes like smartphone boxes, makeup boxes, jewery boxes and wine boxes.

Features

1. The World’s shortest Change-over-time, thereby saving precious machine time

2. Uses highly accurate Visual Robot arm positioning with German multiple camera system

3. Dual Forming stations for high output

4. Includes in-line Bubble pressing module

5. Production speed:35- 45pcs/min

6. Positioning accuracy ±0.1 mm

7. Fast for job changeover with memory function, Changeover time (job transfer time) of less than 10 Minutes

8. Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…

9. Don’t need to change the blade and pressing board.

10. Easy operation , fast and convenience.

Para​meters

Paper Size W:95 - 600mm
L: 120-880mm
Paper thickness 80-300g/m2
Max.paper stacking height 800mm
Cardboard thickness 1-3mm
Finished box size W*L*H L:45-350mm
W:45-250mm
H:15-120mm
Ear overlapping size 15-120mm
Folding size 7-100mm
Production speed 35-45pcs/min
Setting time 10-15mins
Precision ±0.1mm
Power Supply 380V/50Hz
Max power 37kw
Max power(with bubble pressing machine) 43kw
Air pressure 0.5-0.7mpa/320NL/min
Glue tank volume 30kg
Machine weight 7500kg
Machine weight (with bubble pressing machine) 9100kg
Machine size L8000*W4000*H3300mm
Machine size (with bubble pressing machine) L11600*W4000*3300mm
Sample Boxes
Rigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box Making
Company Introduction

LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 17 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.

Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.

Rigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box Making

Workshop

Rigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box Making

Package & Delivery

Rigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box MakingRigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box MakingRigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box Making

Certification

Rigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box MakingRigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box MakingRigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box Making

Trade Show

Rigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box MakingRigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box MakingRigid Box Making Machine Featuring Visual Robot Arm Positioning with German Multiple Camera System for Precise Box Making
