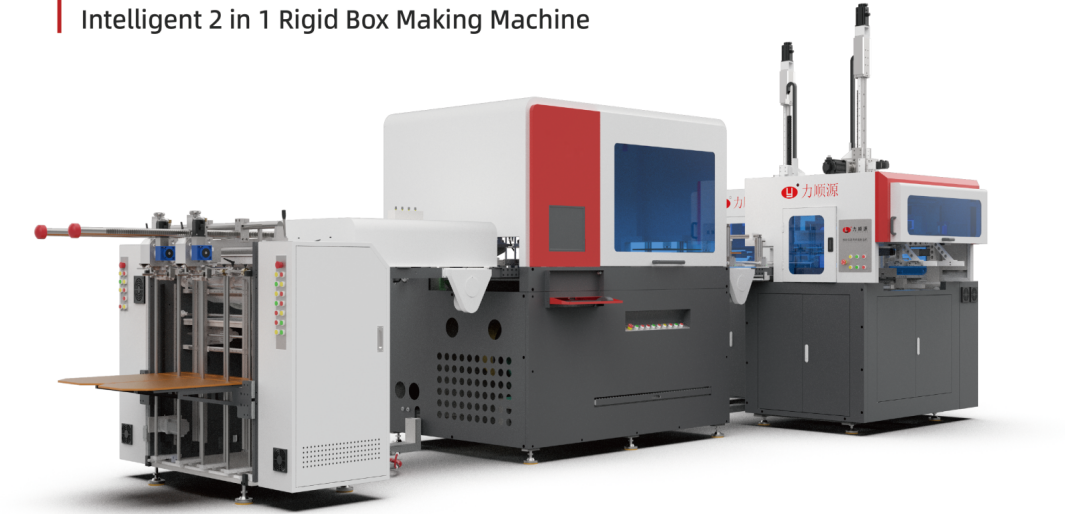

LY- HB 3000CZ Intelligent 2 in 1 Rigid Box Making Machine

u Shortest Change-over-time, thereby saving precious machine time

u Uses highly accurate Visual Robot arm positioning with German multiple camera system

u Dual Forming stations for high output

u Includes in-line Bubble pressing module

u Production speed up to 66 pcs/min for do one size production

u Positioning accuracy ±0.05mm

u Change-over-time (job transfer time) in 30 Minutes

u Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…

Excel cut consists of following sections

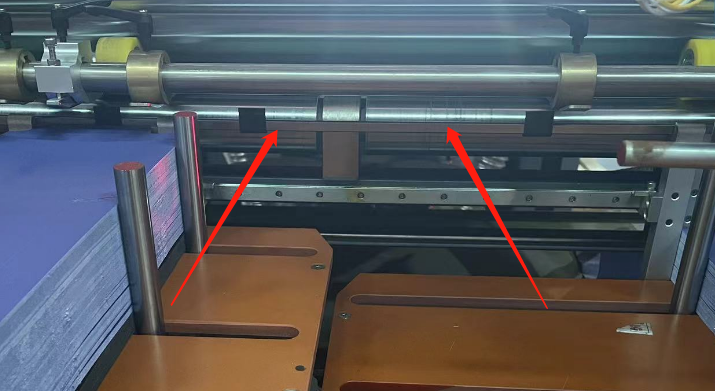

Feeder

• Feeder is controlled by a servo moto
• Paper-feed-in overturn function
• Big diameter pneumatic vacuum control valves
• The rubber pressure roller for the feeding-in paper
• Antistatic platform for paper
• The automatic lifting function for feeding stack
• Feeding stack auto stop when top paper in position Feeder control by servo motor
• Independent controlled paper feeding table and independently controlled sheet roller.
• Avoid the inconsistency of the length of the paper between the two sheets

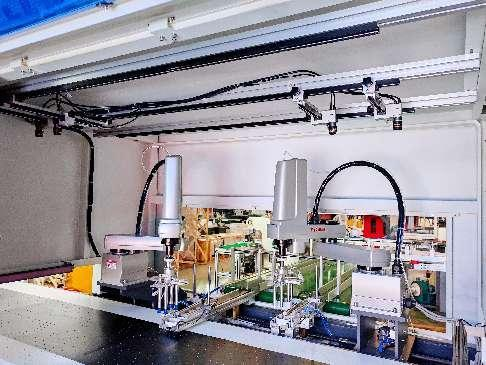

POSITIONING

• YAMAHA Robot Arm for spotting the box

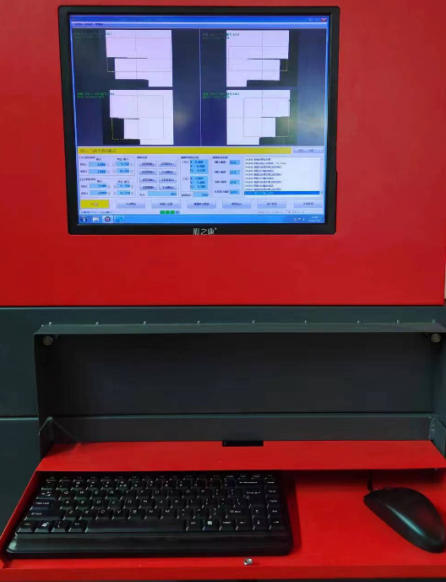

• German Balser camera with Japanese Lens in 10 million Pixel tracing system
• 4 Cameras with double robots arms working XY Spool for positioning.

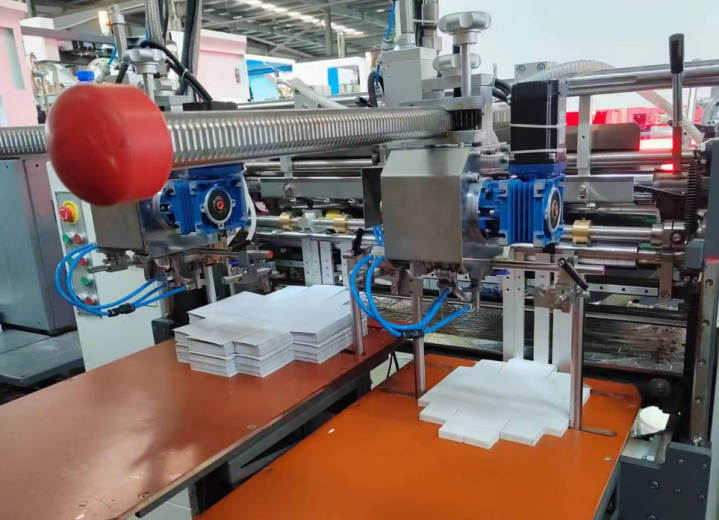

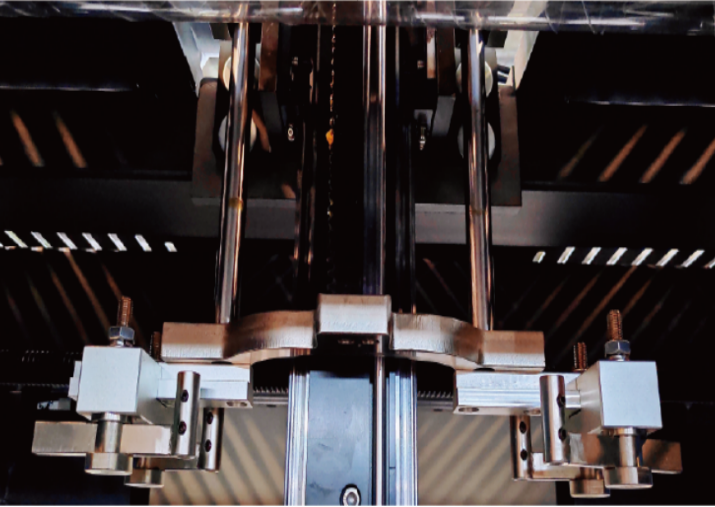

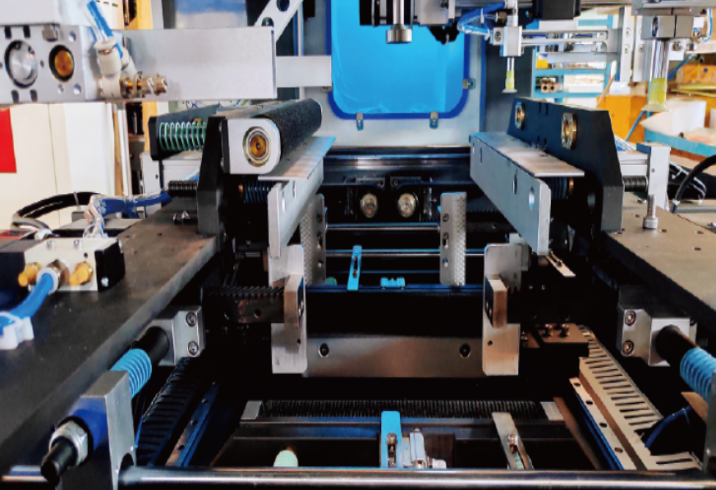

Forming Part & Bubble Pressing

• Automatic Setting by servo motors.
• Dual Station smart wrapper for increased production
• Virtual cam servo driving system
• Alarm device for collision detection
• Lift the box by holding the side of the box
• Scratch resistant for the paper
• Box-pressing down-side device

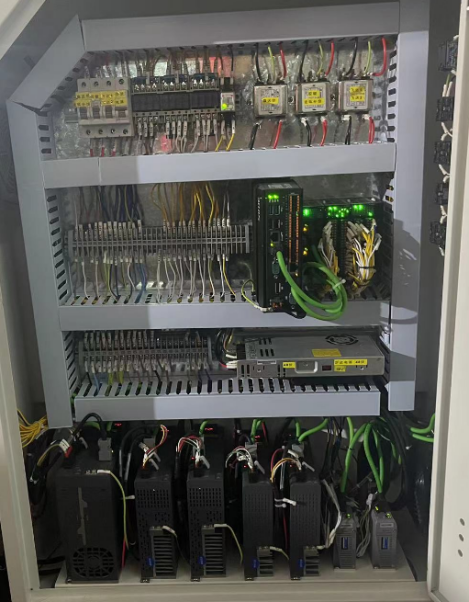

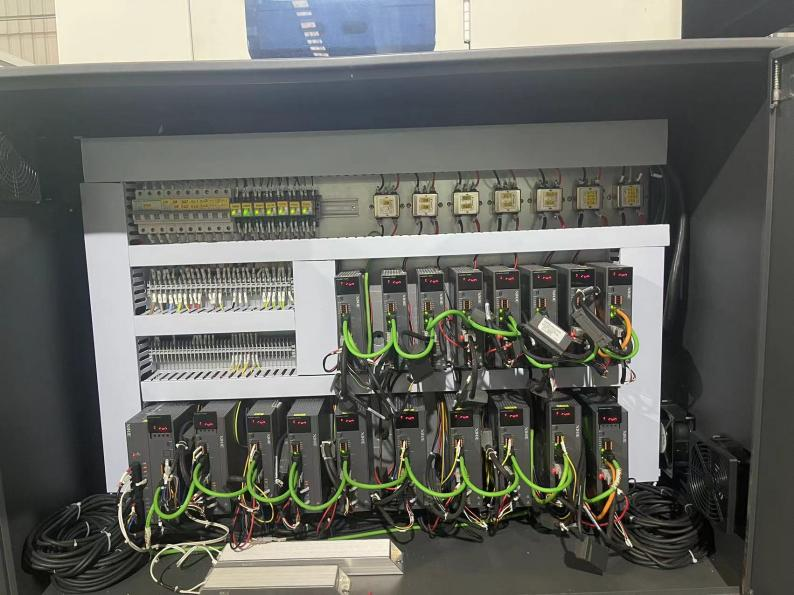

Electric Control System

• Automatic control by servo motors for stable operations.
• Transfer mold fast, quick adjust machine.

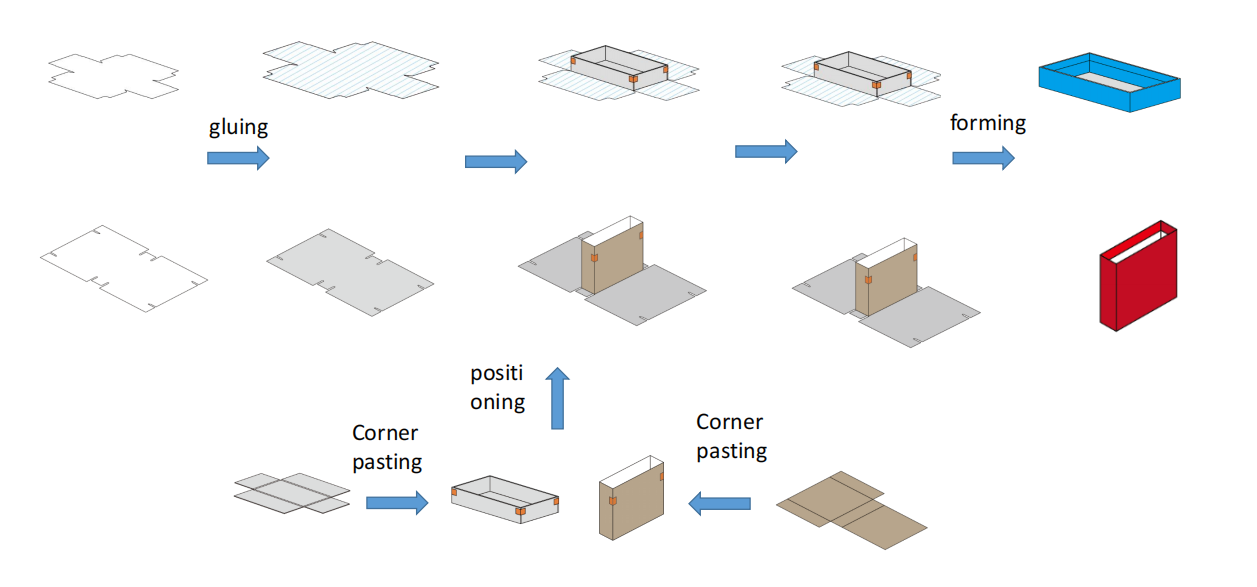

Process flow:

• 1 Hour Service: We respond to service requests within one hour with solution recommendations
• 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
• Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
• Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
• Pre-sale Service: Comprehensive training programs with professional engineers before delivery
• Sale Services: Installation, debugging, and one week of free training services upon machine arrival
• After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
