Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine
Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine
Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine
Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine
Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine
Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine
Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine
Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine
Specifications
Payment Terms :
T/T
Air pressure :
0.6-0.8MPa
Machine size :
L8000×W2550×H2000mm
Supply Ability :
20 sets per month
Cardboard thickness :
1-3mm
Constant power :
11.5kw
Model Number :
LY-HB3000CZ
Paper size(L*W) :
L:120-850mm W:95-600mm
MOQ :
1 Set
Delivery Time :
15-20days
Paper thickness :
80-300g/㎡
Power supply :
380V/220V/50Hz/3phases
Price :
Negotiable
Precision :
±0.05mm
Machine weight :
2000kg
Speed :
25-30 sheets/min
Packaging Details :
Film and plywood crate
Glue tank capacity :
30kg
Brand Name :
Lishunyuan
Name :
LY-485C Multifunctional Visual positioning machine
Certification :
CE
Finished box size(L*W*H) :
L:55-500mm W:55-400mm H:15-130mm
Place of Origin :
China
case maker finished box size(L*W) :
L:100-850mm W:80-430mm
Description

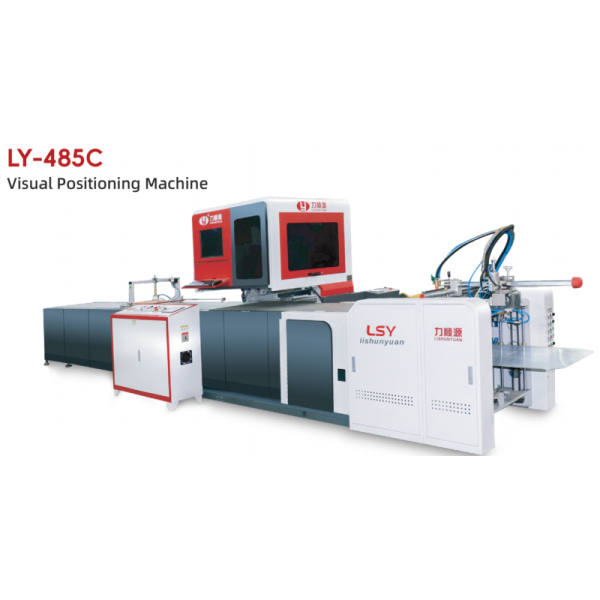

LY-485C Multifunctional Visual positioning machine


Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine


Facility profile:

  • 1.Independent control by different servo motor for feeding, avert double sheet and incline.2. Within 2 sets of high precision cameras and YAMAHA robot arm,
  • Positioning accuracy of ± 0.05mm.
  • YAMAHA robot arm are adopted to accurate position all kinds of product ,
  • such like rigid box, case maker, covering, plastic box, wooden box, irregular shaped box ,etc.
  • 3.Able to production Rigid Box and Hard Cover(Case Maker) at the same time
  • 4. Able to production box and case at the same time, Capacity up to35-45 PCS/Min.
  • 5. Easy to setup enhance productivity and increase enterprise profit



Details:

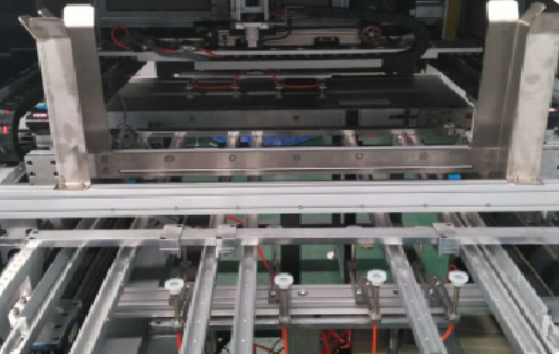

Feeder Two Cameras YAMAHA Robot Arm
Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

1. Feeder is controlled by servo motor.

2. The nozzle-equipped design prevents double sheets and removes dust from the paper, reducing defect rates.

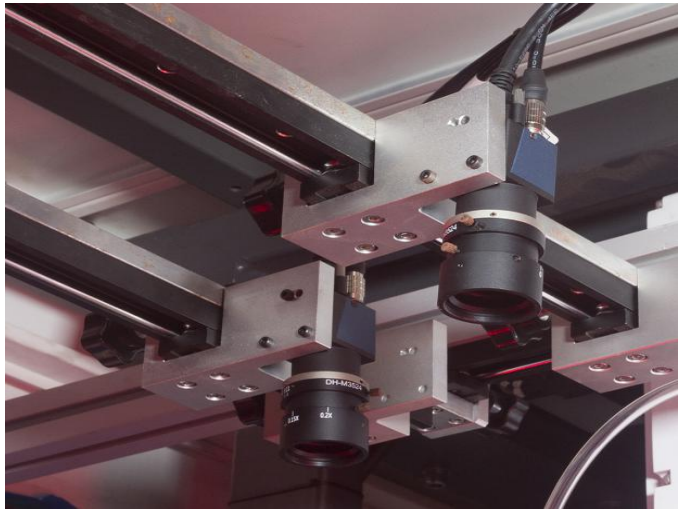

1. Two cameras with Lens in 10million Pixel tracing system

2. Double Camera with XY Spool for positioning.

3. Positioning accuracy ± 0.05mm.

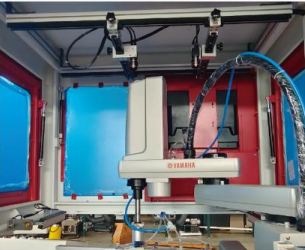

1. Multiple Robot Arm for spotting the box or covers.

2. The arm able to working with box and cover

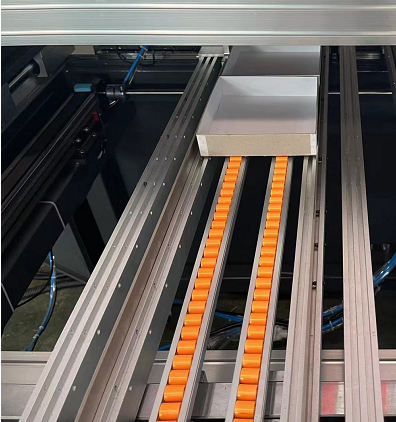

Functions for the hard cover Functions for feeding box Functions for lining
Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

1. Able to do separate board maximum 6pcs .

2. Minimum spine is 30mm.

(able to modify to 15mm)

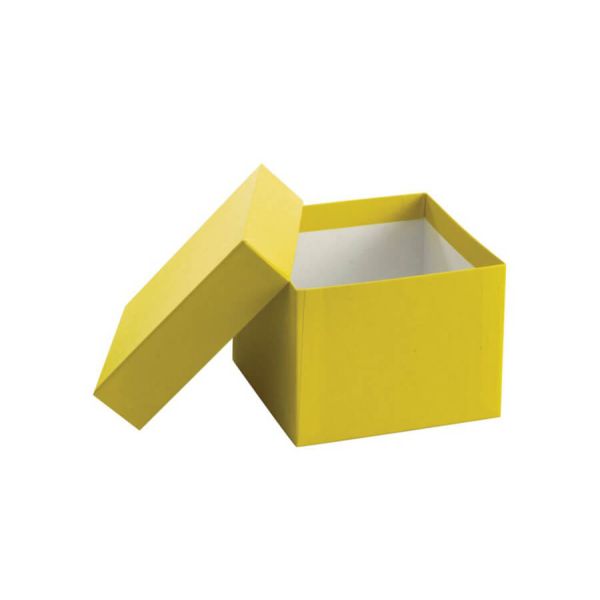

1. Able to working rigid box, sleeve box and even tube box.

2. Corner pasting able to connect online.		 Lining with bottom section,first suck down then push to the positioning area, avoid scratch.

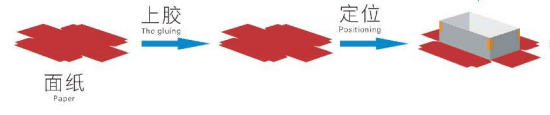

Process flow

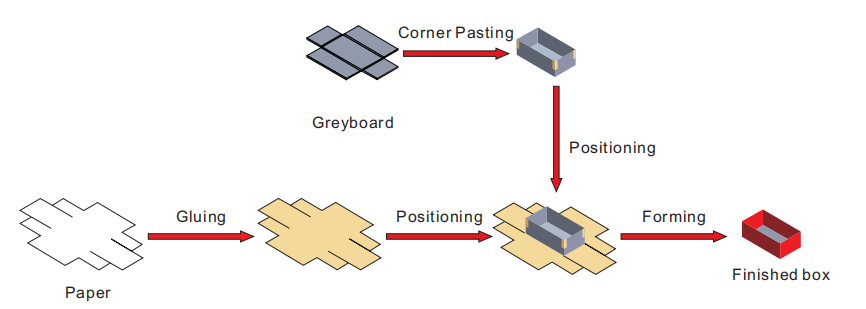

For boxes: Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

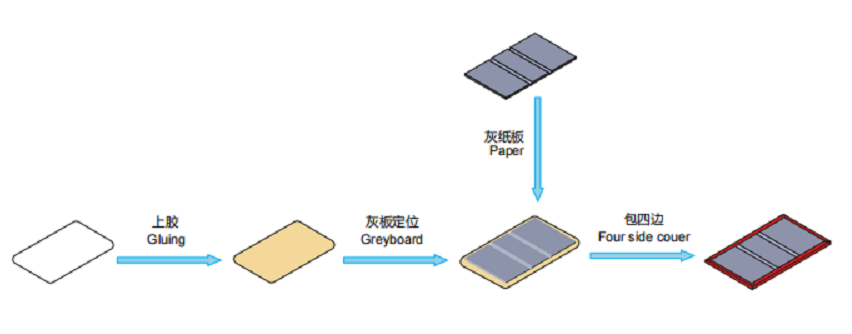

For hard cover: Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine




For sleeve boxes: Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine







Technical Parameters


Parameter Value
Model: LY-485C
Paper size(L*W) L:120-850mm W:95-600mm
Finished box size(L*W*H) L:55-500mm W:55-400mm H:15-130mm
case maker finished box size(L*W) L:100-850mm W:80-430mm
Paper thickness: 80-300g/㎡
Precision: ±0.05mm
Air pressure: 0.6-0.8MPa
Cardboard thickness: 1-3mm
Power supply: 380V/220V/50Hz/3phases
Glue tank capacity: 30kg
Constant power: 11.5kw
Machine size: L8000×W2550×H2000mm
Machine weight: 2000kg
Speed: 25-30 sheets/min




Process flow:


Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine




Company Profile
Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.
Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.
Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the strategy of "Strive for Perfection, Forge New Paths," LiShunyuan is committed to R&D of high-performance, high-efficiency products for the packaging industry, driving intelligent automation advancement.

Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

Our Services & Strengths
We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.

Certifications
Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning MachineLy-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning MachineLy-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning MachineLy-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning MachineLy-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

Manufacturing Workshop
Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning MachineLy-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning MachineLy-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

Industry Exhibitions
Ly-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning MachineLy-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning MachineLy-485c Multifunctional Visual Positioning Machine Hardcover Positioning Machine Automatic Positioning Machine

Quality After-Sales Service Commitment
  • 1 Hour Service: We respond to service requests within one hour with solution recommendations
  • 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
  • Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
  • Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
  • Pre-sale Service: Comprehensive training programs with professional engineers before delivery
  • Sale Services: Installation, debugging, and one week of free training services upon machine arrival
  • After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
