LY-1050C Automatic Lining Machine Visual positioning Lining Machine
LY-1050C Automatic Lining Machine Visual positioning Lining Machine
LY-1050C Automatic Lining Machine Visual positioning Lining Machine
LY-1050C Automatic Lining Machine Visual positioning Lining Machine
LY-1050C Automatic Lining Machine Visual positioning Lining Machine
LY-1050C Automatic Lining Machine Visual positioning Lining Machine
LY-1050C Automatic Lining Machine Visual positioning Lining Machine
LY-1050C Automatic Lining Machine Visual positioning Lining Machine
Specifications
Certification :
CE
Size for lining (L*W) :
L:120-1050mm W:60-7500mm
Model Number :
LY-1050C
Paper size (L*W) :
L:120-1100mm W:95-850mm
Supply Ability :
15 sets/month
Power supply :
380V/220V/50Hz/3phases
Machine size :
L8000×W3300×H2600mm
MOQ :
1
Delivery Time :
15-20days
Board thickness :
400-1500gsm
Glue tank capacity :
50kg
Payment Terms :
T/T
Speed :
15-25 sheets/min
Machine weight :
5100kg
Price :
Negotiate
Precision accuracy :
±0.05mm
Brand Name :
Lishunyuan
Model :
LY-1050C
Packaging Details :
Film and plywood crate
Constant power :
11.5kw
Place of Origin :
China
Paper thickness :
80-400gsm
Description

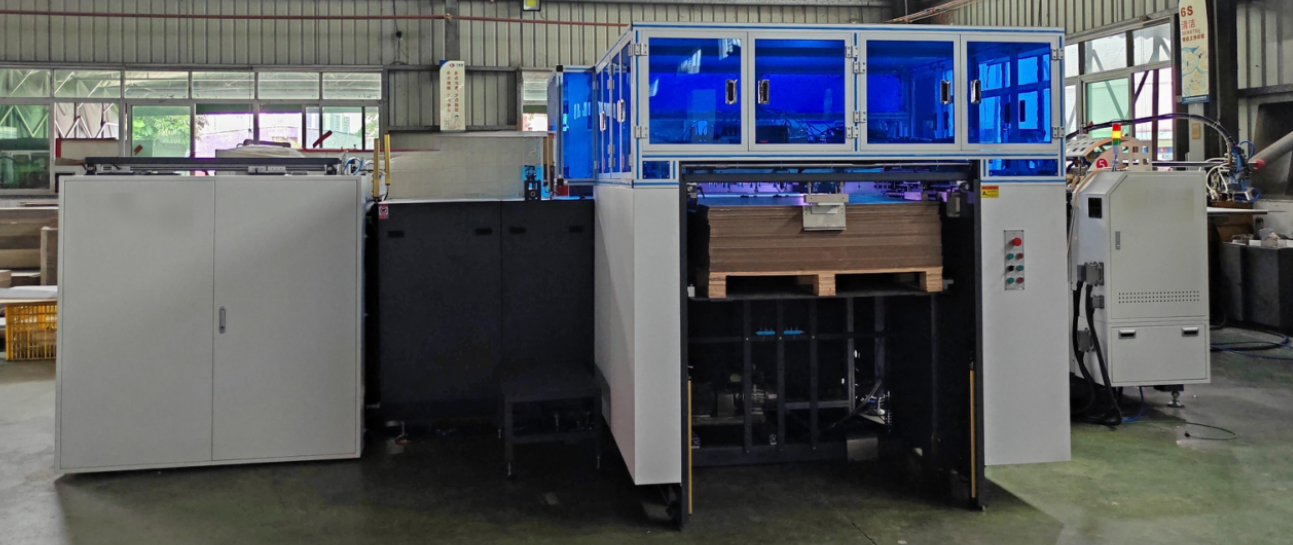

LY-1050C Automatic Lining Machine with Visual Positioning
LY-1050C Automatic Lining Machine Visual positioning Lining Machine

The LY-1050C Automatic Lining Machine with visual positioning system offers precision automation for high-quality box and case production.

Facility Profile
  • Independent control by different servo motors for feeding
  • High precision camera system with positioning accuracy of ±0.05mm
  • Servo robot arm for accurate positioning of hardcover and lining products
  • Simultaneous box and case production with capacity up to 15-20 PCS/Min
  • Easy setup to enhance productivity and increase enterprise profit

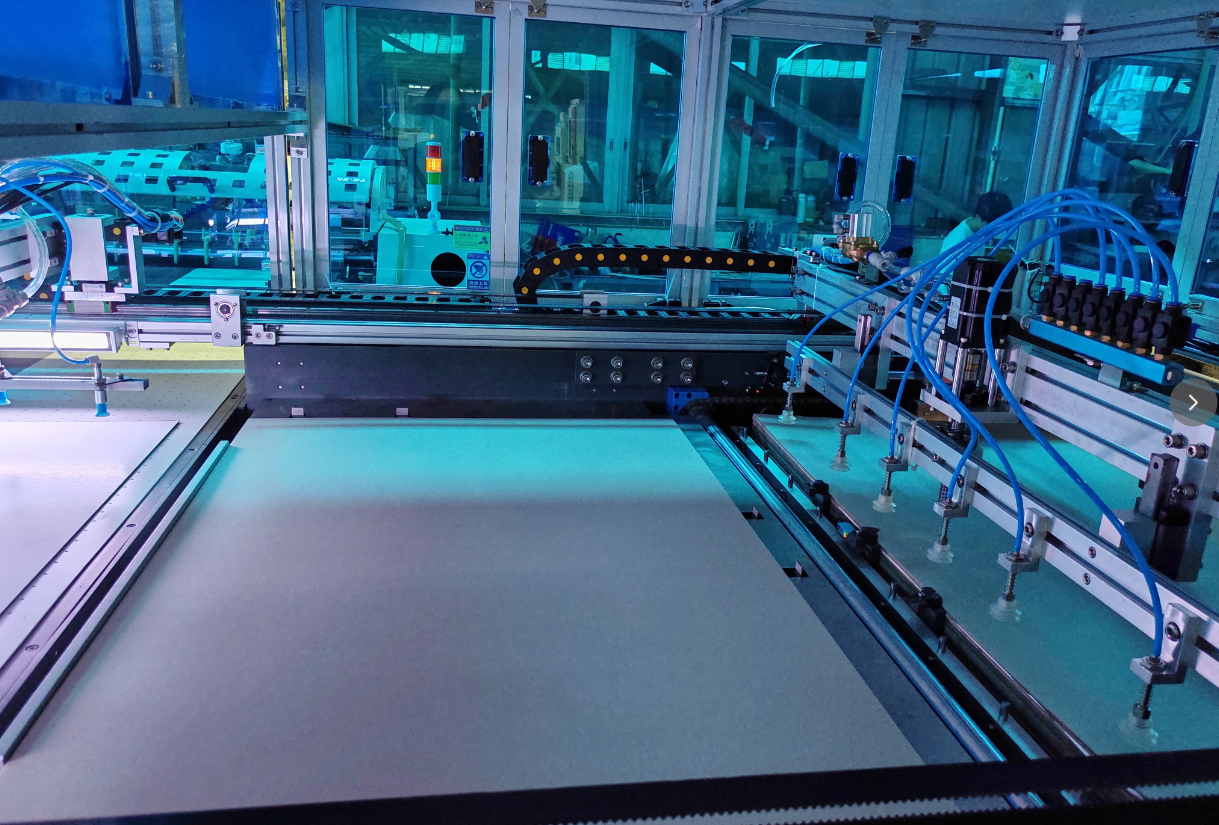

Feeder System
LY-1050C Automatic Lining Machine Visual positioning Lining Machine LY-1050C Automatic Lining Machine Visual positioning Lining Machine
  • Printer's cam gear structure with single paper catching and blowing into roller
  • Handles paper specifications from 80g/㎡ to 300g/㎡
  • Circulatory system suitable for hot & white glue to prevent splashing
  • Heating system with regular timing and constant temperature
  • Internal blender for even glue stirring and consistent viscosity
  • Independent servo motors for feeder, roller, and conveyor belt
  • Medium carbon steel gluing roller with 304 stainless steel surface

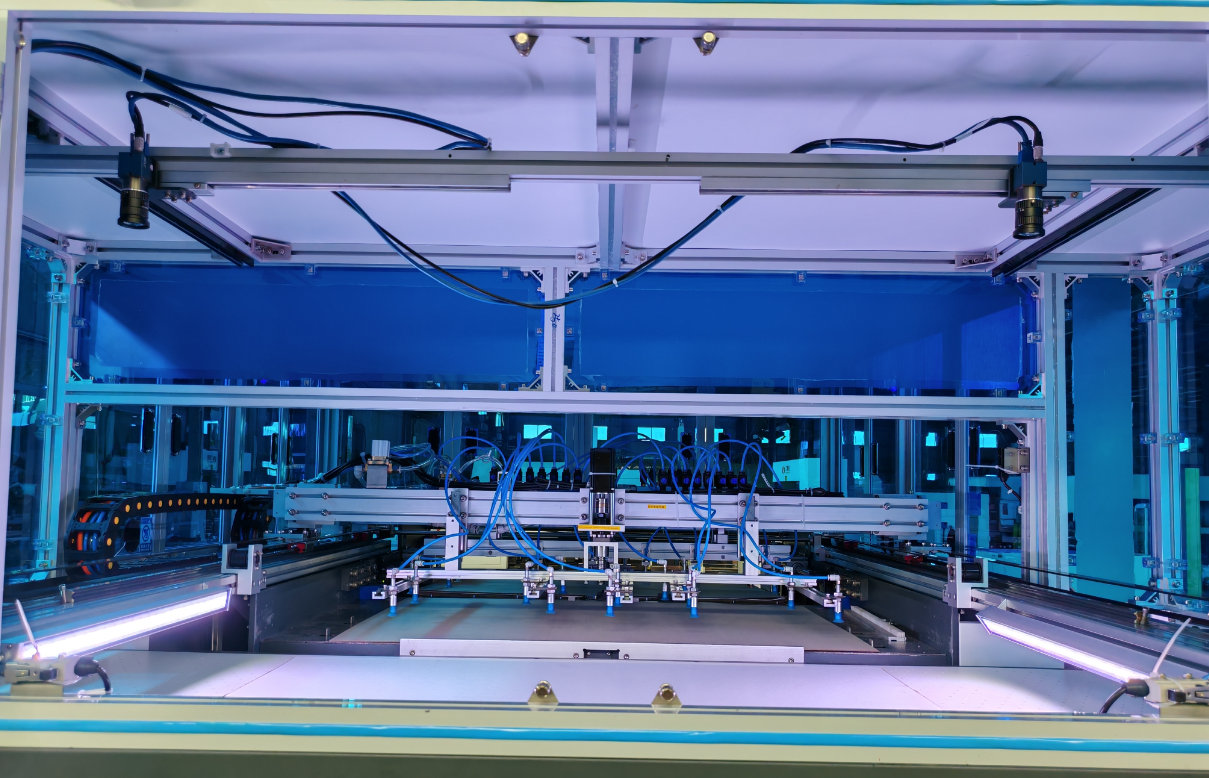

Positioning System
LY-1050C Automatic Lining Machine Visual positioning Lining Machine LY-1050C Automatic Lining Machine Visual positioning Lining Machine
  • Fully servo Robot Arm for gray board spotting
  • Two 10-million pixel camera tracing system
  • Double Camera with XY Spool for positioning
  • Positioning accuracy of 0.05mm
  • Pre-feeding and secondary positioning mode for material storage

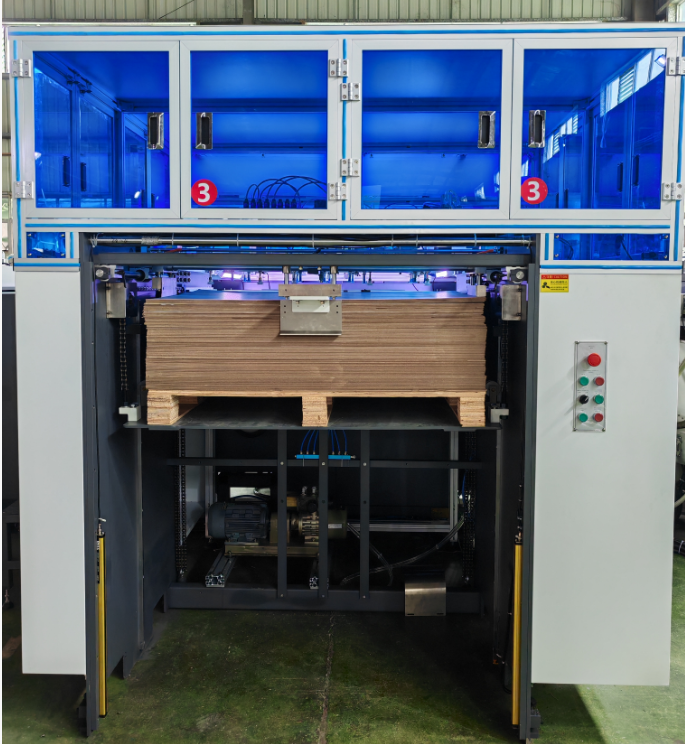

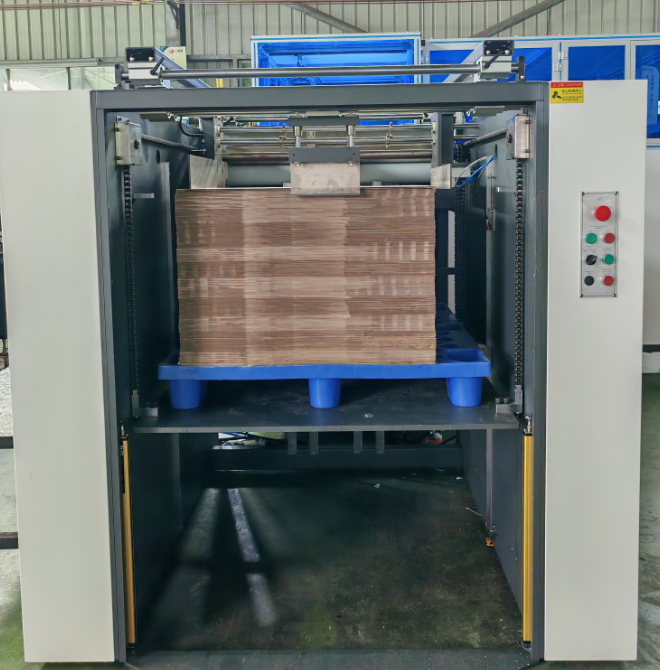

Pallet Feeding & Receiving Platform
LY-1050C Automatic Lining Machine Visual positioning Lining Machine LY-1050C Automatic Lining Machine Visual positioning Lining Machine
  • Robot suction arm for precise picking
  • Whole pallet feeding eliminates manual handling
  • Automatic receiving platform with stack mechanism
  • Ensures paper board flatness
Technical Specifications
Model LY-1050C
Paper Size (L×W) L: 120-1100mm W: 95-850mm
Cover & Lining Size (L×W) L: 120-1050mm W: 60-7500mm
Paper Thickness 80-300gsm
Board Thickness 400-1500gsm
Precision Accuracy ±0.05mm
Speed 15-25 sheets/min
Power Supply 380V/220V/50Hz/3 phases
Glue Tank Capacity 50kg
Constant Power 11.5kw
Machine Size L8100×W3300×H2600mm
Machine Weight 5100kg
Packing and Shipping
LY-1050C Automatic Lining Machine Visual positioning Lining Machine LY-1050C Automatic Lining Machine Visual positioning Lining Machine
Company Profile

Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.

Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.

Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the strategy of "Strive for Perfection, Forge New Paths," LiShunyuan is committed to R&D of high-performance, high-efficiency products for the packaging industry, driving intelligent automation advancement.

LY-1050C Automatic Lining Machine Visual positioning Lining Machine
Our Services & Strengths

We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.

Certifications
LY-1050C Automatic Lining Machine Visual positioning Lining Machine LY-1050C Automatic Lining Machine Visual positioning Lining Machine LY-1050C Automatic Lining Machine Visual positioning Lining Machine LY-1050C Automatic Lining Machine Visual positioning Lining Machine LY-1050C Automatic Lining Machine Visual positioning Lining Machine
Manufacturing Workshop
LY-1050C Automatic Lining Machine Visual positioning Lining Machine LY-1050C Automatic Lining Machine Visual positioning Lining Machine LY-1050C Automatic Lining Machine Visual positioning Lining Machine
Industry Exhibitions
LY-1050C Automatic Lining Machine Visual positioning Lining Machine LY-1050C Automatic Lining Machine Visual positioning Lining Machine LY-1050C Automatic Lining Machine Visual positioning Lining Machine
Quality After-Sales Service Commitment
  • 1 Hour Service: We respond to service requests within one hour with solution recommendations
  • 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
  • Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
  • Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
  • Pre-sale Service: Comprehensive training programs with professional engineers before delivery
  • Sale Services: Installation, debugging, and one week of free training services upon machine arrival
  • After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
