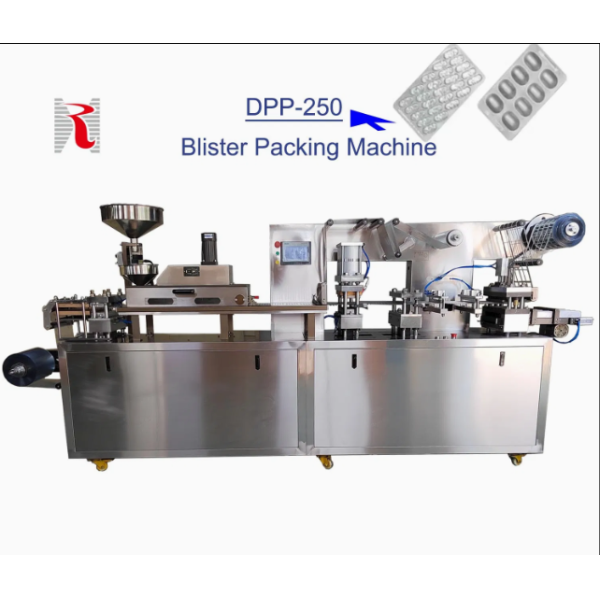

Steel High Speed Blister Packing Machine Tablets Capsule Pills Form Fill Seal Machine
Steel High Speed Blister Packing Machine Tablets Capsule Pills Form Fill Seal Machine
Steel High Speed Blister Packing Machine Tablets Capsule Pills Form Fill Seal Machine
Steel High Speed Blister Packing Machine Tablets Capsule Pills Form Fill Seal Machine
Steel High Speed Blister Packing Machine Tablets Capsule Pills Form Fill Seal Machine
Steel High Speed Blister Packing Machine Tablets Capsule Pills Form Fill Seal Machine
Steel High Speed Blister Packing Machine Tablets Capsule Pills Form Fill Seal Machine
Steel High Speed Blister Packing Machine Tablets Capsule Pills Form Fill Seal Machine
Steel High Speed Blister Packing Machine Tablets Capsule Pills Form Fill Seal Machine
Steel High Speed Blister Packing Machine Tablets Capsule Pills Form Fill Seal Machine
Specifications
package weight :
1500kg
MOQ :
1 set
Production capacity :
2400-9600pcs/hour
original :
Guangzhou
Packaging Details :
wood case
Brand Name :
DG
Model Number :
DDP-250
Price :
13000USD
Certification :
CE
material :
304 stainless steel
Model :
DDP 250
Supply Ability :
20 set /month
produce time :
25-30 days
Place of Origin :
GUANGZHOU
Description

New High-Speed PVC Honey Pill, Candy, Liquid Blister Packaging Machine Tablet Capsule Pills Form Fill Seal Machine Blister Packaging Machine

Introduction:
It is suitable for different shape packaging of Alu / PVC , Paper/Alu and Alu /Alu for capsule, tablet, candy, honey shape pills, disposable syringes and so on in industries of pharmaceutical, foodstuff, health product , medical instruments and etc.
The machine is new innovating designed by our machine which is widely for packaging of medicine, which of function are reached to the advanced level of China. It is used for tablet, capsule, pill, honey pill, candy, liquid, paste, disposable syringe in regular and product, foodstuff, cosmetic , medical instrument and etc.
Features:

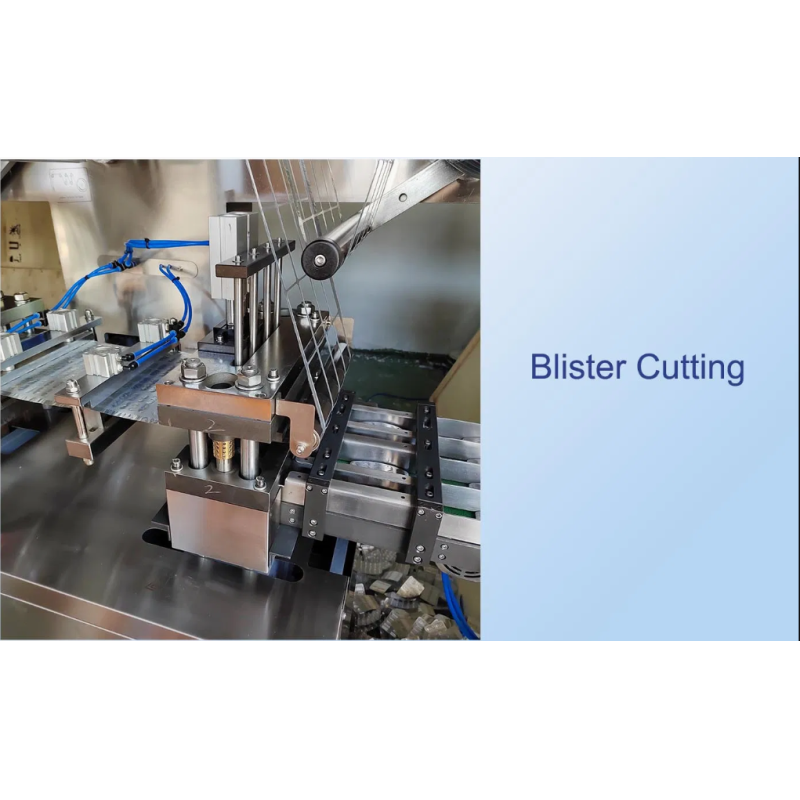

Forming, heating sealing, batch marking, impression and cutting are with
1, Rack mandrel for exact and easy fixed position. it is equipped with ruler for easy correction and accuracy orientation.
2, Mechanical hand traction: it adopts double rod of pendulum device which can increase the stroke travel range (up to 180mm). it widely is suitable for all kinds of size packaging of blister. Plate heating, positive forming, upper and lower web plates, heating sealing , automatic feeding, automatic impression and embossing and automatic cutting are easy and reliable operation.
3, It has Positive pressure forming and mechanical punch for uniformity and perfect blister forming. It is applicable for packaging with larger size or special shaped of honey pill, big honey pills and etc. it is equipped with special automatic feeder for packaging of ampoule, syringes and injection vial. It is a machine with wide range of application for packaging.
4, The main drive shaft adopts parallel axis bevel gear reducer, forming, heating sealing, impression and etc. which of mould are adopting pill for tightly and accuracy position-setting, easier to change an save packing material.
5, The body of machine can be produced under the split production for easier moving into the working room.
Note:
Optional Equipped with Photocell detecting device
Optional Equipped with Acylic glass cover
Optional Equipped with ink jet coding device

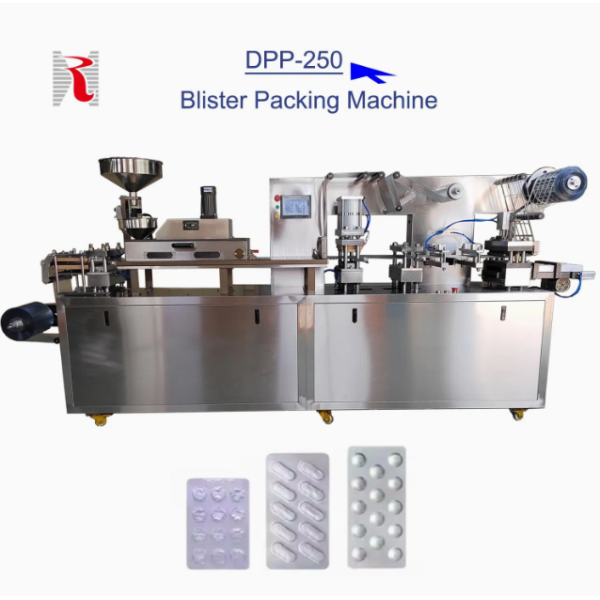

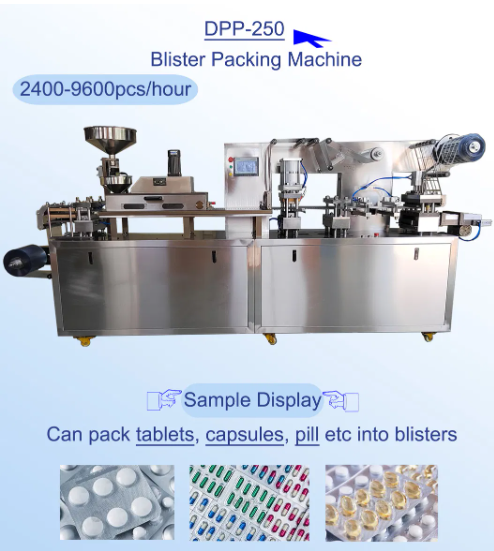

Steel High Speed Blister Packing Machine Tablets Capsule Pills Form Fill Seal Machine

Model DPP-250
Punching frequency 10-40 Cycles/min.
Production capacity 2400-9600pcs/hour
Max. forming area, depth 240x140x26mm (Standard plate size: 240x140x14mm)
Standard travel range 40-140mm
Standard blister size 80*57mm80x57mm( designed as per user's requirement)
Air supply 0.4-0.6Mpa
Air compressed required ≥0.3m3/min
Total power 380V/220V 50Hz 8.5Kw
Main motor power 2.2Kw
PVC sheet Thickness(0.15-0.50)*Width250mm
PTP Thickness (0.02-0.035)*150mm
Dialyzing paper (50-100)g*250mm
Cooling mould Tap water or recycling water
Overall dimension 3250×710×1700mm(L×W×H)
Weight 1400kg
Noise <75dBA

FAQ
Q: Which machine suitable for me? How can I chose?
A:All our machine is customized for a big factory or a small business.
1. To figure out the product you will pack
2. The dimension of the product or the dimension of the packing.
If you want to design the special packing machine, we can manufacture the packing machine as your requirements.


Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Guangzhou province. We warmly welcome you to visit our factory if you have a travel plan.

Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.

During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.

Q: How can I trust you for the first-time business?
A: Please note our business license and certificates above. If you don't trust us,

we suggest usingTrade Assurance Service for all transactions to protect your money and assure our service for you.

Q:How long the delivery date?
A:The small machine is 15-20days and the large machine will be 20-35 days.Some manys we have in the stock.

Q: How about the after service and guarantee period?
A: We offer 12 months warranty since the arrival of the machine.highly recommends that you keep all of your original packaging.

This is precautionary to ensure you have what you need if the machine has to be sent in for repair.

We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.

Q:How to contact you?
A: Please leave messages and click "send" to send us inquiries.
