Claw-Type Plastic Bottle Unscrambler Machine with 6000 Bottles Per Hour, Easy to Operate, and SS304 Frame Material
Claw-Type Plastic Bottle Unscrambler Machine with 6000 Bottles Per Hour, Easy to Operate, and SS304 Frame Material
Claw-Type Plastic Bottle Unscrambler Machine with 6000 Bottles Per Hour, Easy to Operate, and SS304 Frame Material
Claw-Type Plastic Bottle Unscrambler Machine with 6000 Bottles Per Hour, Easy to Operate, and SS304 Frame Material
Claw-Type Plastic Bottle Unscrambler Machine with 6000 Bottles Per Hour, Easy to Operate, and SS304 Frame Material
Claw-Type Plastic Bottle Unscrambler Machine with 6000 Bottles Per Hour, Easy to Operate, and SS304 Frame Material
Specifications
Brand Name :
PINCHI
Certification :
ce
MOQ :
1
Price :
13000
Payment Terms :
T/T
Supply Ability :
20sets
Place of Origin :
FOSHAN
Delivery Time :
3O WORK DAYS
Packaging Details :
WOODEN BOX
Unscrambling Speed :
≤6000 Bottles Per Hour
Frame Material :
SS304
Type :
Other
Inverter :
France Schneider
Power :
2.5KW
Machinery Test Report :
Provided
Bottle Types Supported :
Plastic, glass, PET bottles
Volume :
20-100ml
Showroom Location :
None
Key Selling Points :
Easy to Operate
Dimension :
According to machine capacity
Internediate Ralay :
Schneider
Diameter :
900mm / 1200mm / 1500mm
Feeding Method :
Vibratory bowl feeder or conveyor belt
Description
Claw-Type Plastic Bottle Unscrambler Machine
Designed for simple operation and easy maintenance, this claw-type unscrambler efficiently orients plastic containers for seamless integration with automated packaging lines.
This product is a versatile, fully automatic bottle sorting machine widely applicable in the food, beverage, pharmaceutical, condiment, juice, and dairy industries.
Constructed from premium stainless steel with other components made from non-toxic, durable materials, it incorporates partially imported electrical and pneumatic components.
The entire operation is automatically controlled, resulting in low equipment failure rates and high reliability.

Technical Specifications
Machine Type Claw-Type Unscrambler
Application Plastic Bottle Sorting and Orientation
Maximum Speed 200+ bottles per minute
Control System
PLC Automation
Special Features Bottle rejection and recovery system

Equipment Parameters

Main Hoist Dimensions: Length 1.7 m × Width 0.85 m × Height 1.2 m
Production Speed: Customizable
Air Supply Pressure: 0.3 MPa
Air Consumption: 0.25 cubic meters per minute
Bottle Compatibility: Based on customer-provided bottles
Main Unit Power: 1.5 kW, 220V, 50Hz
Equipment Weight: 300 kg



Equipment Detail Diagram Specifications

Claw-Type Plastic Bottle Unscrambler Machine with 6000 Bottles Per Hour, Easy to Operate, and SS304 Frame MaterialClaw-Type Plastic Bottle Unscrambler Machine with 6000 Bottles Per Hour, Easy to Operate, and SS304 Frame Material

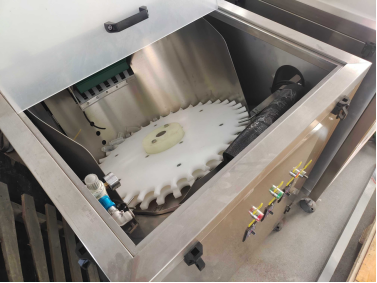

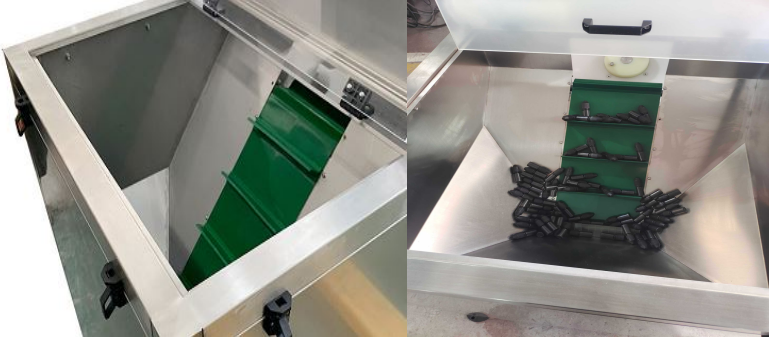

The equipment features a plastic swash plate internally, Pre-store empty bottles, automatic lifting, variable speed control, automatic shutdown when external bottle block is full.

with customizable plastic disc molds for bottle type changes.

High-Efficiency Bottle Sorting
Rotating turntable and mechanical gripper mechanism ensure containers are neatly oriented with openings facing upward for optimal processing.
Wide Applicability
Handles plastic containers of varying sizes and shapes with simple adjustments for quick specification changes and minimal downtime.
Stability and Maintenance
Linear structure design simplifies installation and servicing. PLC control system ensures stable operation with integrated bottle rejection and recovery system.
Automation Integration
Seamlessly connects to downstream automated packaging equipment including filling machines and capping machines for complete production line integration.
Production Speed
High-speed models achieve processing rates exceeding 200 bottles per minute for maximum throughput and efficiency.
