4000 - 5000bottles/Hour Automatic Bottle Packaging Machine Line 100ml - 2500ml
4000 - 5000bottles/Hour Automatic Bottle Packaging Machine Line 100ml - 2500ml
Specifications
Brand Name :
PINCHI
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30 WORK DAYS
Packaging Details :
WOODEN BOX
Features :
The equipment features a compact footprint and enables rapid changeovers and adjustments.
Sorting method :
Horizontal packaging arrangement, bottle feeding, automatic bag feeding
Scope of Application :
Suitable for 100-2500ml bottle sizes across various industries
production capacity :
Taking a 500ml bottle as an example，Production capacity is typically around 4,000 to 5,000 bottles per hour.
Equipment Dimensions :
L4600mm*W1450+800mm*H1900mm
Maximum power consumption :
4KW/H
Automatic Grade :
Automatic
Warranty :
1 Year
Description

Characteristics of the equipment:

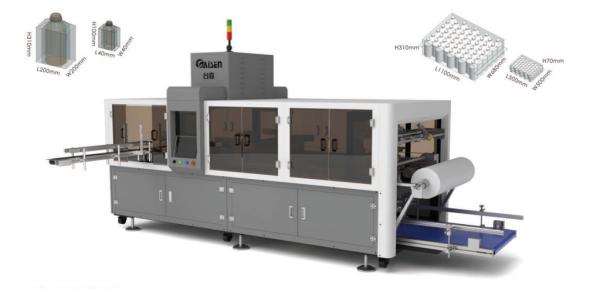

TSBZJ32-11C/16C Automatic Packaging Machine The equipment has moderate volume, quick changeover and adjustment.horizontal arrangement ofencapsulation, conveying into the bottle.automatic bag supply, suitable for all industries 100-2500ml bottle type.

encapsulation Forming size up to a maximum of 1100mm* width 680mm*height 310mm, 250ml bottle for example, the production capacity ofabout 4-5000 bottles/hour or so.



Basic perlormance:

Equipment Dimensions (L*W*H): L4600mm*W1450+800mm*H1900mm Maximum Package Size (L*W*H): L1100mm*W680mm*H310mm
Equipmentframe material: 40mm*80mm*4.0mm Carbon steel Minimum Package Size (L*W*H): L500mm*W500mm*H70mm
EquipmentAppearance: Sheet metalspraying gray/white Package arangement form: Horizontal arrangement
Input gas source: 0.6-0.8MPa Fastest cycle time for single-row bottle arrangement: 7 seconds/row
Input Voltage: 380V 50Hz Push tho bottle inlo the bag to the reverso beat (stop bottle feeding time): 15sec/round trip
Maximum gas consumption: 10L/min Maximum power consumption: 4KW/H
Maximum Applicable Bottle Dimensions: Ø200mm*H310mm;L200mm*W200mm*H310mm Docking height of bottle feedingconveyor: 1100-900mm Adjustable
Minimum Applicable Bottle Dimensions: Ø40mm*H70mm;L40mm*W40mm*H70mm Boltle feeding method: Bottlefeeding
Fastest single-package production capacity (actual capacity subject to packaging specifications): 80bags/hour



Performance characteristics:

Use of plastic bags Rolled bag Adjustment Point 7 (Upper Bag Opening Height Adjustment) Auto
Equipment bag supply mode Automatic Change production settings for part 8 (lower bag opening width adjustment) Manual Auto
Automatic Bottle Jam Alarm Function yes Adjustment Position 9 (Lower Bag Opening Height Adjustment) Auto
Automatic Alarm Function for Card Wallets yes Adjustment Point 10 (Bag Mouth Upper Sealing Height Adjustment) Auto
Number of sealing lines 2 Change production settings for part 11 (lower bag mouth sealing width adjustment) No need adjustment
Broken Bag/Missing Bag Alarm Function yes Change production settings for part 12 (bottle/bag pressing height adjustment) Auto
Bag sealing and tightening function yes Change production settings for machine part 13 (packaging station width adjustment) Manual Auto
System Remote Communication Function yes Change production settings for part 14 (bag length adjustment) Auto
System operation authority 123 Level Change production settings for part 15 (bag width adjustment) Auto
Changeover Adjustment Point 1 (Bottle Infeed Channel Width Adjustment) Manual Adjustment Point 16 (Bag Tail Upper Sealing Height Adjustment) No need adjustment
Adjustment Point 2 for Production Changeover (Single-Row Bottle Misalignment Correction) Automatic Adjustment Point 17 (Lower Sealing Height Adjustment at Bag Tail) No need adjustment
Adjustment Point 3 for Changeover (Bottle Storage Area Width Adjustment) Manual Auto Change production settings for part 18 (bag width adjustment) Manual
Adjustment Point 4 for Product Changeover (Front-to-Back Position Adjustment of Bottle Pusher) Auto Change production settings for part 19 (adjust bag roll material) Mechanical Quick Manual Adjustment
Adjustment Point 5 for Changeover (Bottle Pusher Body Width Adjustment) Manual Auto Adjustment Point 20 (Adjustment of Bag-Out Conveyor Distance) Auto
Change production settings for part 6 (upper bag opening width adjustment) Manual Auto



Payment Terms and Trade Terms

Description of Goods Model

Remarks

TSBZJ32-11C/16C Automatic Packaging Machine

With VAT

Place of Origin: Made in China

Price Validation: 100 days

Payment Term: T/T, 30% deposit, 70% to be paid before loading against FAT

Delivery Time: 35 days after the receipt of advanced payment

Warranty: 1 year for complete machine, long time for software&system

Commissioning: free commissioning within 3days, customer bear for the engineer’s local food and accommodation and tickets, extra time will be charged by usd150/day.



After Sales Service

The overall product quality has traceability, and the product quality warranty period is 1 year, calculated from the date of equipment acceptance.

Free maintenance during the warranty period, and corresponding travel and material costs will be charged for after-sales service that exceeds the warranty period.

Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform,

particularly for the system updating, algorithm setting, software adjustment, etc.
