Specifications
Brand Name :
FillPack
Model Number :
FP-6000S
Certification :
CE. ISO9001
Place of Origin :
China,JiangSu,Zhangjiagang
MOQ :
1 set/pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
1 set / month
Delivery Time :
35-40 days after deposit receipt
Packaging Details :
Sea worthy package
bottle volume :
250-750ml
Output :
5200-7500 bph
Cavitiy :
6 cavities
Dimension :
Customized
Power :
72kw
Weight :
4550Kg
Condition :
New
Application :
PET bottle
Automatic :
Yes
Blow moulding type :
Stretch blow moulding
Voltage :
380V/220V 3 phase 50HZ / 60HZ / Customized
Warranty :
1 year
After-sales service provided :
Engineers available to service machinery overseas
Description

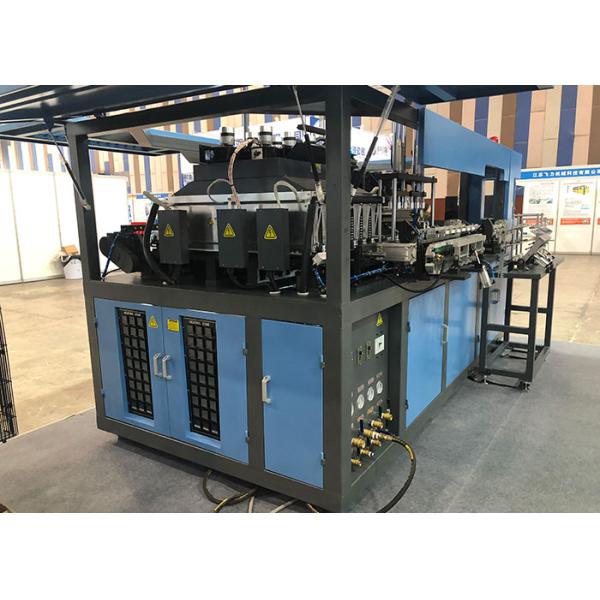

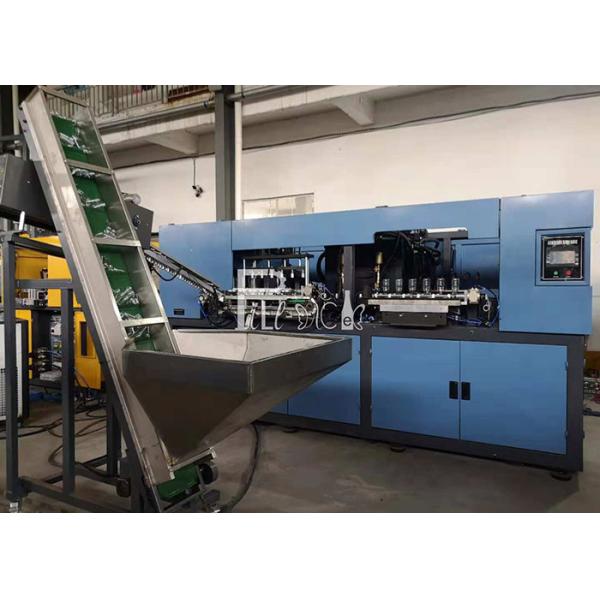

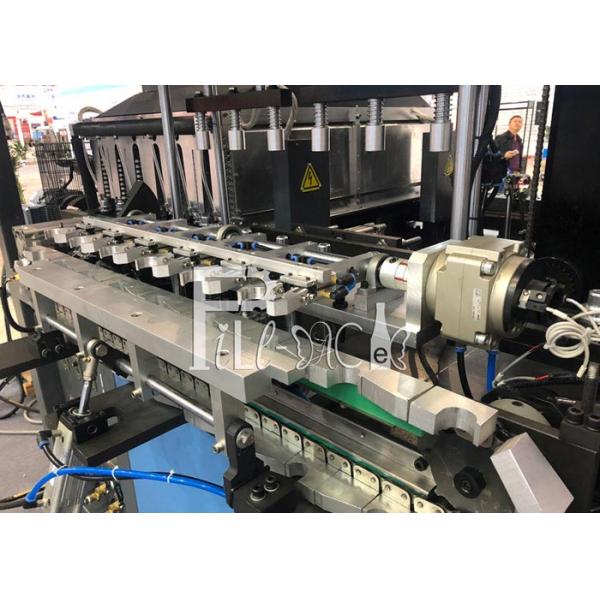

Automatic Linear servo 6 Cavity PET bottle blow molding machine suit

>>> Product Introduction:
FP-6000S Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

>>> Product Features:

1. Two ways of operating: automatic and manual
2. Safe, reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
3. Low cost, high efficiency, easy operation and maintenance, etc, profited from the fully automatic technological process.
4. Ideal cooling system make the finished bottles without any flaws.
5. Easy for you to install, test and start up
6. Low rejection rate: less than 0.2%.

Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System
>>>Flow and Auxiliary machines:
HP Air Compressor → Air Tank → Air Filter →Air Dryer → Air Filter → Chiller → LP Air Compressor →Automatic Bottle Blowing Machine

1. Auxiliary Machine To operate this PET blowing machine, it also need some auxiliary machines. such as air compressor, air filter, air dryer, chiller and so on. we will equip the auxiliary machine according to your need.
2. Bottle Preform If you need, we can also help you find the bottle preform in china.

>>>Technical Paramters:

Molding
Max. stretching distance
mm
800*350mm
mold thickness
mm
180mm
Number of Cavity
Cavities
6
Container
bottle body diameter
mm
30mm-110 mm
bottle height
mm
50mm-320 mm
bottle neck diameter
mm
18mm-38 mm
Theoretical output
bph
5200-7500
Electrical system
power voltage
v
3Phase 380v /50HZ
installed power / actual power
kw
72kw/56kw
Servo system
kw
Taiwan Delta
Items
Name of Machines
Model
1
Blow Moulding Machine
3700*2050*2200mm/4000kg
2
Preform Unscramble
2000*1350*2550mm/550kg
3
HP Air Compressor
4.8 m3/ min 30Kg
4
LP Air Compressor
2.0 m3/min 12Kg
5
HP/LP Air Dryer
5.0 m3/ min 30Kg 2.0 m3/min 10Kg
6
HP/LP Air Filters
5.0 m3/ min 30Kg 2.0 m3/min 10Kg
7
HP/LP Air Tank
2.0 m3/ min 30Kg 1.0 m3/min 10Kg
8
Mould Chiller
5HP
9
Blow Mould
250-750ml
10
PLC
Delta / Taiwan
11
Touch Screen
Delta / Taiwan
