Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System
Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System
Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System
Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System
Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System
Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System
Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System
Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System
Specifications
Brand Name :
FillPack
Model Number :
FP-4000S
Certification :
CE. ISO9001
Place of Origin :
China,JiangSu,Zhangjiagang
MOQ :
1 set/pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
1 set / month
Delivery Time :
35-40 days after deposit receipt
Packaging Details :
Sea worthy package
bottle volume :
250ml-2L
Output :
3500-4500bph
Cavitiy :
4 cavities
Dimension :
Customized
Power :
24kw
Weight :
Customized, 6000kg
Condition :
New
Application :
PET bottle
Automatic :
Yes
Blow moulding type :
Stretch blow moulding
Voltage :
380V/220V 3 phase 50HZ / 60HZ / Customized
Warranty :
1 year
After-sales service provided :
Engineers available to service machinery overseas
Description

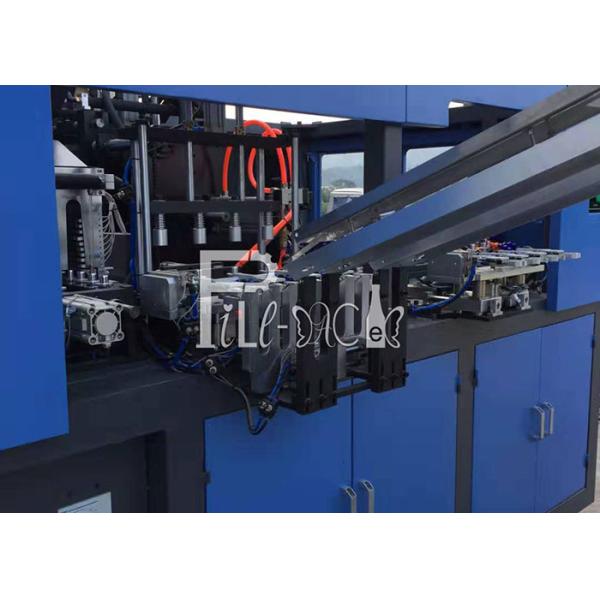

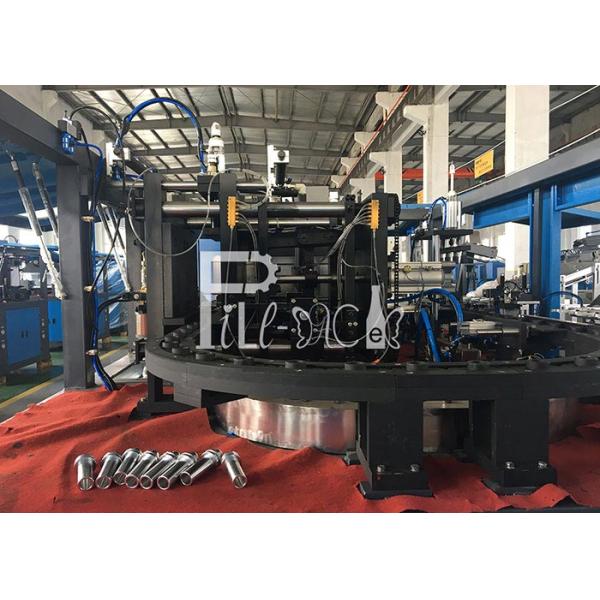

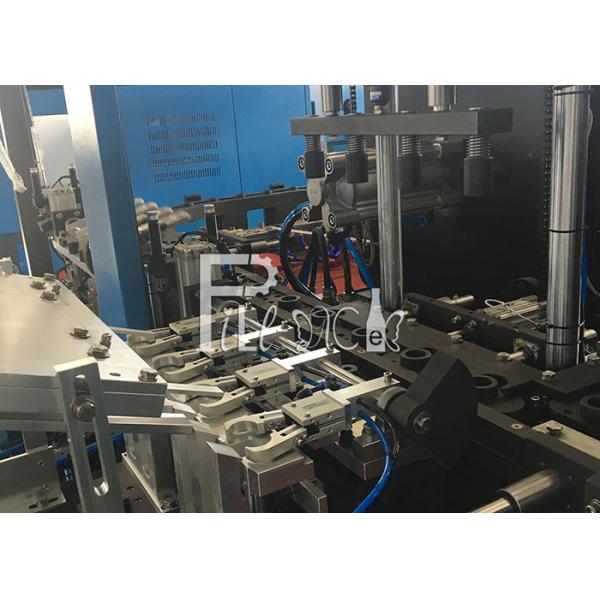

Servo automatic 4 Cavity PET bottle blow molding machine suit

>>> Product Introduction:
FP-4000S servo automatic 4 Cavity PET bottle blow molding machine is suitable for blowing PET bottles of various shapes, volume from 250ml to 2000ml, wide application for blowing mineral water bottles, soda bottles,cola bottles.etc.

>>> Product Features:

●1. Advanced PLC control system with a user-friendly panel and time-control precision of PLC up to 0.01second

●2. Equipped with special designed air storage unit

●3. Using Infrared preform heater

●4. Independent Temperature Control for different heating lamp to get ideal preform heating results

●5. Heating lamps are adjustable in directions to suit various preforms.

Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System
>>> Flow and Auxiliary machines:
HP Air Compressor → Air Tank → Air Filter →Air Dryer → Air Filter → Chiller → LP Air Compressor →Automatic Bottle Blowing Machine
1. PET Bottle Mold Our PET blowing machine can produce various shape bottles. we can according to your need to design your own bottle and make mold for you.
2. Preform & Cap Molds We also can provide you with preform mold and cap mold according to your demand.

>>> Technical Paramters:

Molding
Mold thickness
mm
240mm
Mold
mm
500*500mm
Number of Cavity
Cavities
4
Container
Max.container volume
Itr
2
Neck.container range
mm
15mm-38mm
container diameter
mm
20mm-100mm
container height
mm
50mm-350mm
Theoretical output
bph
3500-4500
Electrical system
Power
v
380v 3Phase /220v 3Phase 50/60HZ
Really use power
kw
14kw
Rated Power
kw
49kw
Items
Components
Model
1
Blow Moulding Machine
FP-4000S
2
Preform Unscramble
FP-4000S
3
HP Air Compressor
2.0M3/min 30kg
4
LP Air Compressor
1.6M3/min 10kg
5
Air Dryer
2.0M3/min 30kg
6
Air Filters
2.0M3/min 30kg
7
Air Tank
0.6M3/min 30kg
8
Mould Chiller
3HP
9
Blow Mould
250-2000ml
10
PLC
Delta / Taiwan

Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System

Semi Auto Mineral Water Stretch Bottle Blow Manufacturing Machine / Equipment / Line / Plant / System
