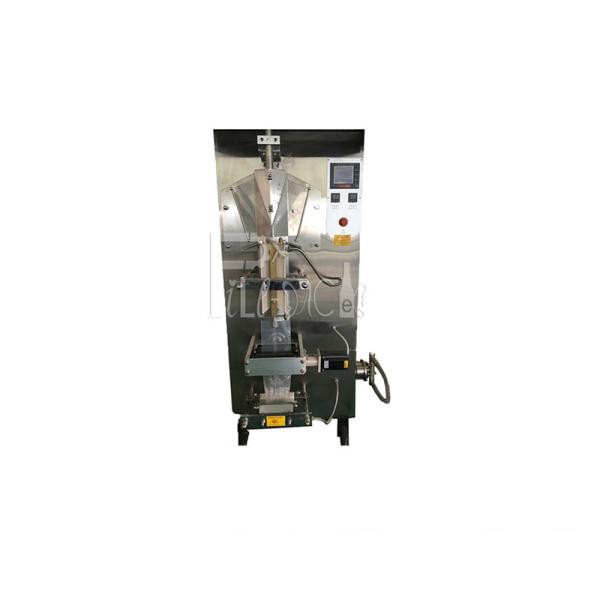

Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour
Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour
Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour
Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour
Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour
Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour
Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour
Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour
Specifications
Bag length :
50-150MM
Power :
1.6KW
Packing speed :
2000-2200BAGS PER HOUR
External dimensions :
880*760*1800MM
Package volume :
0-500ML
Brand Name :
FillPack
Model Number :
500A1
Certification :
CE / ISO9001
Place of Origin :
Zhangjiagang, China
MOQ :
1 set
Price :
1365-2520USD/set
Payment Terms :
L/C,D/A,D/P,T/T,
Supply Ability :
20 Sets Per Months
Delivery Time :
25 Working Days After Deposit
Packaging Details :
sea worthy packing
Bag width :
40-150MM
Model :
500A1
Packaging film width :
100-320MM
Description
Sachet liquid filling machine with plastic bag for water/oil/soy sauce/milk pouch packing
Features:
1.The whole process is completed automatically and highly efficient.
2. Either under set length control or photoelectric color tracing, bag length is set and cut in one step.
3. The temperature is under independent PID control, more suitable for different packing materials, the tolerance is ±1%.
4. Equip easy tear-off gap device, so there is an easy tear-off gap on each finished product.
5. The driving system is simple and reliable, and maintenance is easy.
6. Main parts are made of stainless steel, meet the GMP standard.
7. Automatic self support lubricating system, the machine can continuous more than 24 hours.
8. Applicable material should be composite film like: PET/PE, Paper/PE, PET/AL (PET-AL), PE, OPP/PE etc.
Model list and technical specifications:
Model
500A1
1000A1
500A-2
Bag length (mm)
50-150
50-250

50-150
Bag width (mm)
40-150
40-175
40-150
Packaging film width (mm)
100-320
100-380
100-320
Package volume (ml)
0-500
0-1000
0-500
Packing speed (bags/h)
2000-2200
1100-1300
2000-2200
Power (kw)
1.6
2.5
1.6
External dimensions (mm)
880*760*1800
1050*850*2050
850*760*1800
Weight (kg)
275
380
275

General:
1, Application: all kinds of liquid without gas, especially soy, wine, vinegar, juice, fruit pulp, soybean
milk, peanut oil, vegetable oil, plant oil, mineral water, and liquid chemical products.
2, Sealing style: back sealing
3, Function: film sterilization,auto complete Bag-making, filling, sealing, printing, cutting and
counting
4, Whole machine with stainless steel covering, With foot wheels for easy transportation;

Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour
Packaging film parameters:
Material: LDPE
Printing: 1-6 colors
Width: 320mm (suitable for up to and including 500ml);350mm (suitable for 1000ml)
Thickness: 75micron,80micron,90micron(suitable for 1000ml)

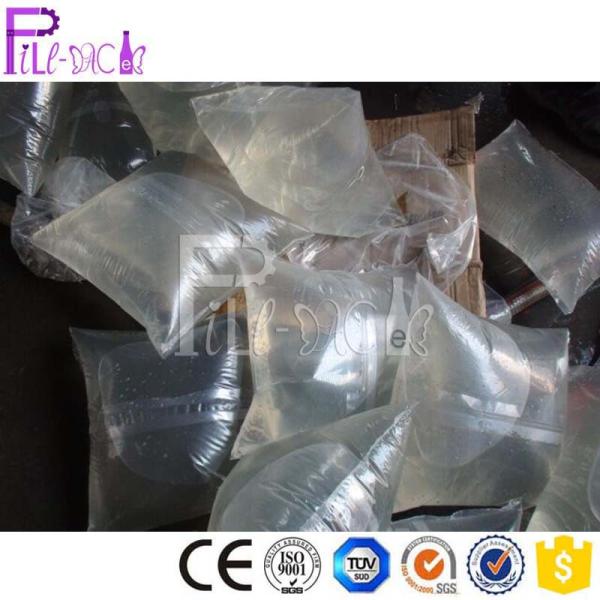

Sachet volume: 250ml,330ml,400ml,500ml,1000ml
Packing detail: 18kg/roll,1 roll/carton carton size: 30*30*33.5cm
1ton have 1.72cbm,20' container could load 898 cartons,about 17tons.
1kg film could make how many pcs 500ml sachet with different thickness:
80micron thickness: 1kg roll film could make about 280 sachets
75micron thickness: 1kg roll film could make about 298 sachets
1kg film could make how many pcs 1000ml sachet with 90micron thickness:
90micron thickness: 1kg roll film could make about 136 sachets
Application: water pouch packaging, water sachets, pure water packaging,mineral water packaging,flavoured water bag packaging,Juice packaging,water bags packaging
Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour
Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour
We can also provide matching water treatment lines.
Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour
