Specifications
Brand Name :
FILL PACK
Model Number :
QGF-900
Certification :
CE, ISO9001
Place of Origin :
ZhangJiaGang JiangSu China
MOQ :
1 set
Price :
USD $40000-$60000/set
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
20 sets/month
Delivery Time :
15-20working days
Packaging Details :
Blanket cloth or wooden case
bottle size :
5 gallon bottle
capacity :
900BPH
weight :
3500KG
Dimension(L*W*H) :
8000*2500*2500mm
Automatic Grade :
Automatic
Power :
5kw
Description

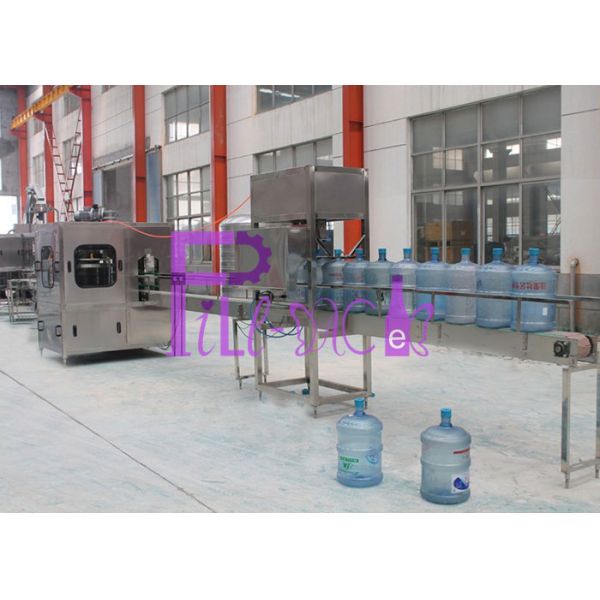

Description of our 900BPH 5 gallon filling line

Features:

- Integrates bottle washer, filler and sealer into one unit;

- Made of high quality stainless steel, corrosion proof and easy to be cleaned or washed;

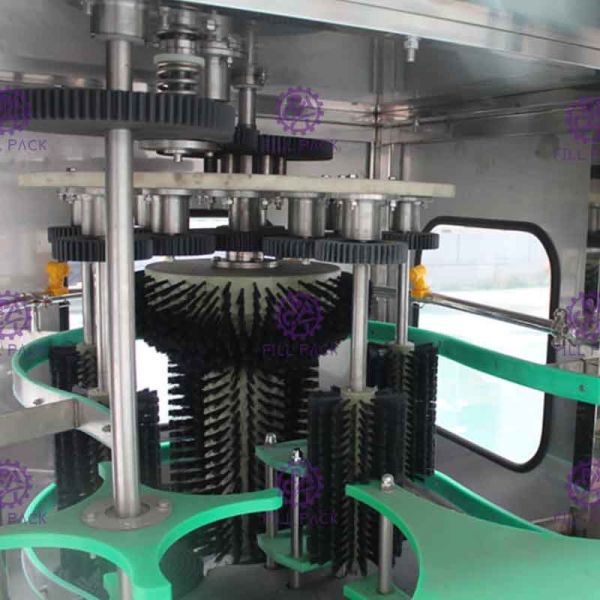

- bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly;

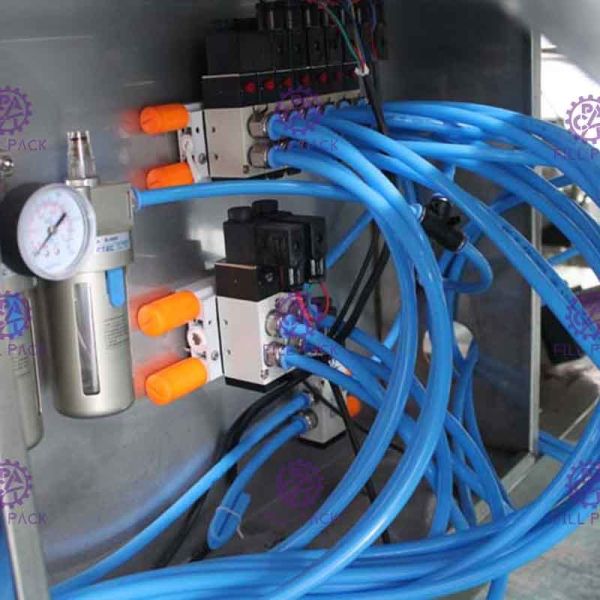

- Imported famous brands are adopted in respect of key electrical and pneumatic components;

- All the pumps are Nanfang pump which is the NO.1 in China;

QGF-900 5 gallon barrel water filling production machine hot alkaline water washing
Items
Name of machine
Model
Size(mm)
1.1
Automatic de-capper
BG-2
910*810*2000
1.2
Rotary external washer
RXT-3
1800*1550*1750
1.3
Monoblock gallon rinser-filler-capper
QGF-900
5500*3350*2700
1.3.1
Automatic jar loading-unloading device
ST-6
/
1.3.2
Automatic cap lifter-washer
SG-1
300*300*3000
1.4
Steam shrink tunnel
SB-1000
1000*450*1500
1.5
Light checker
DJ-1
800*200*300
1.6
Belt conveyor system
SYS-1
20m
1.7
Ink jet code printer
PM-368
347*220*100
1.8
Automatic stacker
4*4*3
2400*1700*2000

3 / 5 gallon / 20L bottle water rinsing filling capping equipment / plant / machine / system / line
