380V 50Hz Orange Juice Filling Machine Electric Driven 2450 * 1800 * 2200mm
380V 50Hz Orange Juice Filling Machine Electric Driven 2450 * 1800 * 2200mm
Specifications
Brand Name :
jiayuan
Model Number :
RCGF18-18-6
Certification :
CE,ISO,SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
US $15,000 - 800,000 / Set
Supply Ability :
10 Set/Sets per Month
Delivery Time :
30 work days
Packaging Details :
wooden box
Type :
Filling Machine
Driven Type :
Electric
Voltage :
380V 50Hz
Power :
6.68kw
Dimension(L*W*H) :
2450*1800*2200mm
Weight :
3000KG
After-sales Service Provided :
Engineers available to service overseas
Control system :
PLC control
Warranty :
One Year for free
Material :
Food grade stainless steel 304
Filling capacity :
6000BPH(500ml)
Condition :
New
Description

380V 50Hz powder orange juice concentrate filling machine electric driven

Packaging & Delivery

Packaging Details: Wooden Box
Delivery Detail: 30 Working Days

Specifications

380V 50Hz powder orange juice concentrate filling machine electric driven
1.Fully automatic,electric
2.CE,SGS,ISO certificate
3. PLC control

4. 6000BPH

Features
380V 50Hz powder orange juice concentrate filling machine electric driven

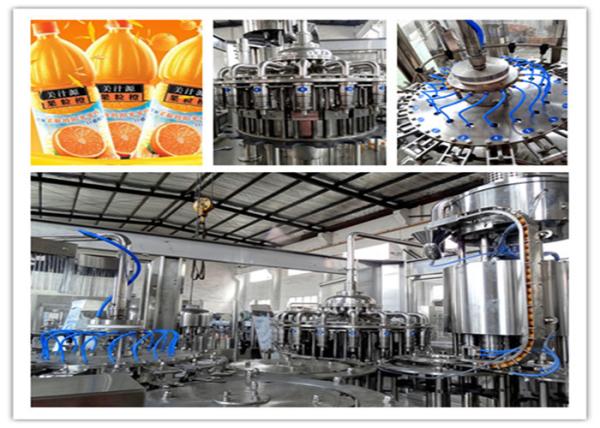

Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
1.Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
2.Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
3.The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize
the complete CIP.
4.Sanitary filling head system is of umbrella structure, high filling speed.
5.Per fect filling temperature control system.
6.Reflux tank system has the function of supplying the material automatically.
7.Perfect CIP system.

Technique parameter

Model RCGF18-18-6
Productivity 6000BPH
Rinsing Head 18
Filling Head 18
Capping Head 6
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min
Motor Power 6.68kW
Voltage 380V
Dimension (L×W×H) 2450*1800*2200mm
Weight 3000kg
Filling Principle Gravity Filling
Packing&delivery
380V 50Hz Orange Juice Filling Machine Electric Driven 2450 * 1800 * 2200mm

Export market
Our machine has been sold to more than 40 countries,almost of the customers are satisfiedwith the machines and our service

Company Information
We are a company integrating scientific research, production and service, and have the best manufacturing facilities and production process, professional staffs, imported facilities of concentration distill series, automatic CIP series, PLC control etc. Now we have been a market leader in the Chinese food machinery industry. The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies. It has comprehensive development capacity and sound quality assurance system, and has made R&D achievement and obtained invention patents. Our machinery are widely sold in China, and exported over 20 countries, and gained favorable feedback from users. Our major engineering projects include complete dairy products production line, beverage production line, biochemical engineering production line.
