Automatic Mineral and Pure Water Bottle Filling Machine Staniless Steel 5500kg
Automatic Mineral and Pure Water Bottle Filling Machine Staniless Steel 5500kg
Automatic Mineral and Pure Water Bottle Filling Machine Staniless Steel 5500kg
Automatic Mineral and Pure Water Bottle Filling Machine Staniless Steel 5500kg
Automatic Mineral and Pure Water Bottle Filling Machine Staniless Steel 5500kg
Automatic Mineral and Pure Water Bottle Filling Machine Staniless Steel 5500kg
Automatic Mineral and Pure Water Bottle Filling Machine Staniless Steel 5500kg
Automatic Mineral and Pure Water Bottle Filling Machine Staniless Steel 5500kg
Automatic Mineral and Pure Water Bottle Filling Machine Staniless Steel 5500kg
Automatic Mineral and Pure Water Bottle Filling Machine Staniless Steel 5500kg
Specifications
Brand Name :
jiayuan
Model Number :
CGF24-24-8
Certification :
CE.SGS
Place of Origin :
CHINA,MAINLAND
MOQ :
1SET
Price :
USD 28000/ SET
Payment Terms :
T/T
Supply Ability :
15 SET PER MONTH
Delivery Time :
30WORK DAYS
Packaging Details :
WOODEN
MATERIAL :
STAINLESS STEEL
PRODUCTION CAPACITY :
8000-10000
WATER CONSUMPTION BOTTLE :
2500
Description

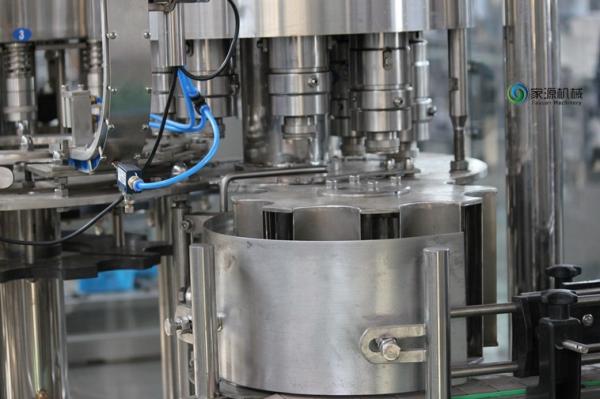

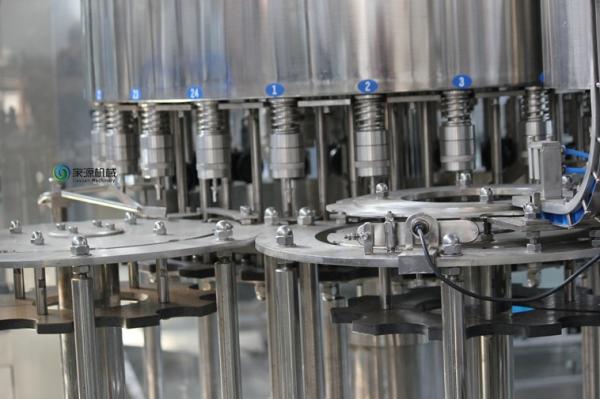

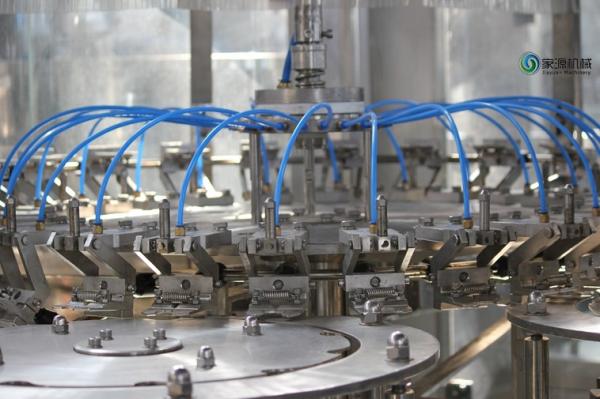

Automatic Mineral and Pure Water Bottle Filling Machine Staniless Steel 5500kg

This drinking water filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping. Most elements of the electrical system employ

Foreign advanced products. Each machine element that contacts with the liquid is made of high quality stainless steel. They obtain the advantages of good abrasive resistance, high stability, low failure rate, etc. The quality of the equipment reaches the international advanced level.

Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
Production capacity(500ml)(b/h) 2000-4000 4000-6000 8000-10000 12000-15000(0.5L)
Filling precision ≤±5MM(Liquid Level) ≤±5MM(Liquid Level) ≤±5MMLiquid Level ≤±5MM(Liquid Level)
Polyester bottle standard(mm) bottle diameter40-80; ≤±5MM(Liquid Level) ≤±5MM(Liquid Level) ≤±5MM(Liquid Level)
Height height:130-280 (Height):150-320 (Height):150-320 (Height):150-320
Suitable cap shape Plastic Screw Cap (Plastic Screw Cap) Plastic Screw Cap) (Plastic Screw Cap)
Water pressure of washing bottle(MPa) 0.18 0.18 0.18 0.18
Water consumption for water bottle (kg/h) 800 1600 2500 3500
Spraying position 5 5 6 12
Dripping bottle position 3 3 3.5 7
Gas source pressure(Mpa) normal pressure normal pressure normal pressure normal pressure
Gas consumption(m3/mm) 0.3 0.3 0.4 0.5
Total power 4.23 5.03 6.57 8.63
Total weight 2000 3500 5500 8000
Dimension(L*W*H) 2100×1500×2200 2450×1800×2200 2750×2180×2200 3500×2200×2250
