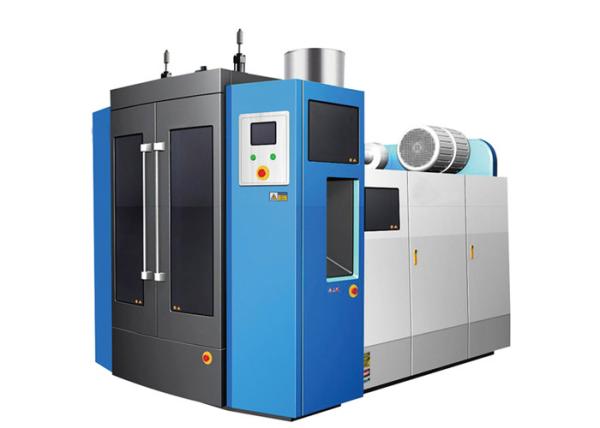

1-6 Cavity 300BPH Extrusion Molding Machine , D5L Automatic Molding Machine
1-6 Cavity 300BPH Extrusion Molding Machine , D5L Automatic Molding Machine
Specifications
Brand Name :
OEM
Model Number :
D5L
Place of Origin :
China
Mode :
Automatic
Production capacity :
300BPH
Max. container :
5L
Mould size :
1-6cavity
Process :
One-step extrusion molding
MOQ :
negotiated
Price :
negotiated
Description

300BPH Extrusion Molding Machine D5L Automatic Molding Machine

Brief Introduction

The D series is double station extrusion blow molding machine for containers from 5ml up to 18L, Its high level of reliability, excellent efficiency and flexibility to meet varied customer requirements. SAET-D extrusion blow molding machines process a variety of materials, including HDPE, LDPE, PP, PVC, TPU, PETG and other materials. Compare to the S series extrusion blow molding machine, The D type of machine has faster production rate in an hour. SAET-D series machine cover the complete production scope starting from the smallest ampoule or tube to beverage packaging, cosmetic containers, large mouth containers and multiple layers with view stripe line containers.

Basic Information
Materials PE, PP... Dimension(L×W×H) 3.6×2.3×2.6M
Number of Head 2 Sets Max. container 5L
Theoretical Output 300BPH Weight 7.8Ton
Extrusion Head
Heating sections 3zone Product max height According to customer’s
Heating Capacity 5.8KW Product Max dia. &center distance According to customer’s
Clamping unit
Clamping force 60KN Mold Platen(W×H) 370×390mm
Toggle Stroke 148~508mm Mold Height 155~300mm
Power
Pump Drive 7.5KW Blow Pressure 0.6Mpa
Screw Drive 15KW Air consumption 0.4M3/min
Screw Fan 0.25KW Max Load 33KW
Plasticizing
Screw Diameter 60MM Screw heating section 3zone
Screw L/D 24:1L/D Screw heating capacity 6.6KW
Extrusion Capacity 65~80KG/H
