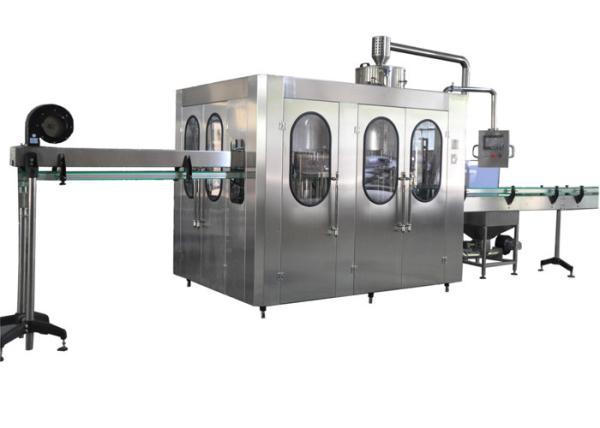

AC380V Touch Screen Bottled Water Filling Line Used For Plastic Screw Cap
AC380V Touch Screen Bottled Water Filling Line Used For Plastic Screw Cap
Specifications
Brand Name :
OEM
Model Number :
CGF14-12-5
Place of Origin :
China
Item Name :
Water Filling Machine
Material :
Stainless steel
Filling Speed :
4000BPH (0.5L bottle)
Function :
Bottle rinsing,filling and capping
MOQ :
negotiated
Price :
negotiated
Description

0.2L-2L Bottled Water Filling Line 3in1 Water Filling Machine CGF8-8-3 2500BPH for 0.5L bottle

3in1 Still Water Filling Machine. Bottle rinser, filler and capper.

Features

  • Using the wind blowing access and move wheel in the bottle directly connected technology, canceled screw and conveyor chains, this enables the change the bottle-shaped become easier.
  • Bottles transmission adopts clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough
  • The suspending bottle-neck clamping design makes the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
  • The particular designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth o avoid twice pollution.
  • Spiraling declination when bottle output, transformer bottle shape no need to adjust the height of conveyor chains
  • Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
  • All parts that have direct contact with the water are made of high quality stainless steel. The critical electrical components are from famous international companies, such as Mitsubishi, Schneider etc

Rinser heads 14
Filling Heads 12
Screw cap head 5
Rated capacity (500ml bottle) 3000BPH-4000BPH for500ml
Suitable for bottle Bottle Diameter: Φ50-Φ95mm; Height: 160-320mm;
Bottle Volume: 330-1500ml
working voltage 380V (AC)
control voltage 24V(DC)
Applicable Cap Shape Plastic Screw Cap
Filling Pressure 0.25-0.4Mpa
Total Power 6.25KW
Product size 2250x1800x2200mm (L*W*H)
Packing size 2400 x 2050 x 2250mm (L*W*H)
weight 3000KG
Remark Controlled by PLC controlling panel + Conveying chains
(including 2meters of bottle wind pushing & conveying system)

AC380V Touch Screen Bottled Water Filling Line Used For Plastic Screw Cap
