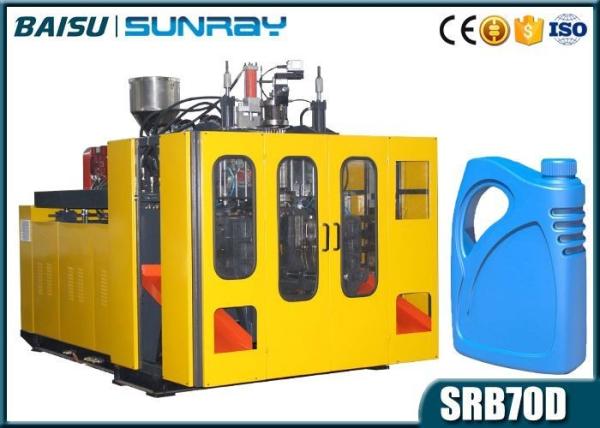

Automatic Extrusion Bottle Blow Molding Machine , 0 - 5 Liter Plastic Jerry Can Making Machine
Automatic Extrusion Bottle Blow Molding Machine , 0 - 5 Liter Plastic Jerry Can Making Machine
Automatic Extrusion Bottle Blow Molding Machine , 0 - 5 Liter Plastic Jerry Can Making Machine
Automatic Extrusion Bottle Blow Molding Machine , 0 - 5 Liter Plastic Jerry Can Making Machine
Automatic Extrusion Bottle Blow Molding Machine , 0 - 5 Liter Plastic Jerry Can Making Machine
Automatic Extrusion Bottle Blow Molding Machine , 0 - 5 Liter Plastic Jerry Can Making Machine
Automatic Extrusion Bottle Blow Molding Machine , 0 - 5 Liter Plastic Jerry Can Making Machine
Automatic Extrusion Bottle Blow Molding Machine , 0 - 5 Liter Plastic Jerry Can Making Machine
Specifications
Brand Name :
BAISU / SUNRAY
Model Number :
5L EBM SRB70D-1
Certification :
CE / ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 Set
Price :
USD 28000-30000 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Sets / Year
Delivery Time :
55 Days
Packaging Details :
Covered with water-proof film, fastened with special container loop and hooks.
Machine Type :
Plastic Container Making Machine
Product Range :
Plastic Bottles, Jerry Cans, Containers
Max Volume :
5 L
Material Source :
LDPE, HDPE, PP
Capacity :
215~220 Pcs/hour
Platen Size :
320 x 390 mm
Head Application :
1/2/3/4 Heads
Power :
31.5KW
Description

Automatic Extrusion Bottle Blow Molding Machine , 0 - 5 Liter Plastic Jerry Can Making Machine, PE/PP Plastic Bottle Making Machine

QUICK VIEWS

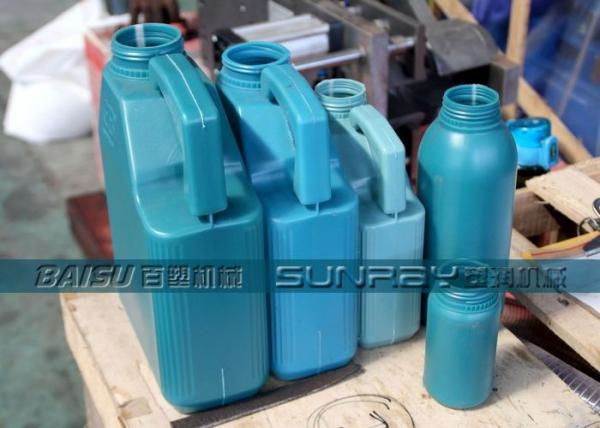

1. SRB70D-1 specially used for PE & PP bottles, jerrycan, kettles, containers and jars from 1L to 5L.

2. Machine total control system with convenient operation page design suitable for remote technical support.

3. Adopt pressure / flow double proportion control for hydraulic system, insure platen moving speed & smoothness.

4. The output for 150 grams hdpe square bottle is 220 Pcs/hour, the daily capacity is about 5300 bottles.

PARAMETER LIST

Machine Model Double Station Bottle Blow Molding Machine
Max Product Volume 5 L
Machine Weight 5.5 Tons
Machine Size 3.8 x 2.2 x 2.5 m
Screw Diameter 70 mm
Plasticizing Capacity 90 KG
Clamping Force 68 KN
Platen Size 320 x 390 mm
Platen Opening Stroke 150~500 mm
Max Mould Size 360 x 360 mm
Head type Continuous extrusion single head
Max die diameter 180 mm
Material Cutting Method Hot Cutting
Max Die Diameter 100 mm
Total Power 48.5 KW
Average Energy Consumption 31.5 KW

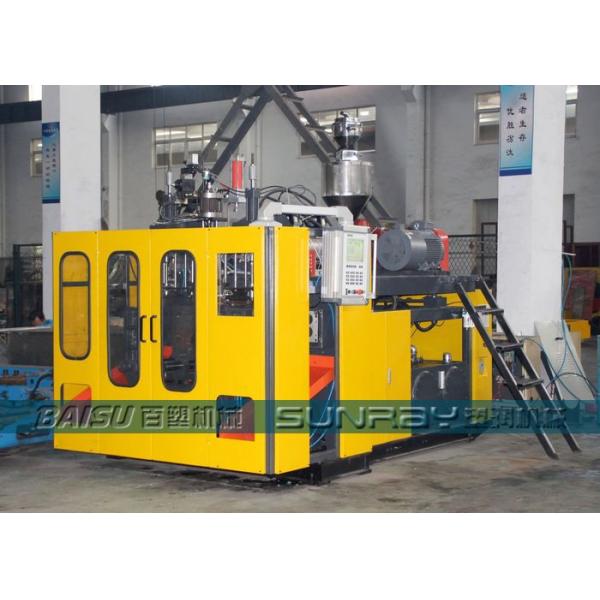

Automatic Extrusion Bottle Blow Molding Machine , 0 - 5 Liter Plastic Jerry Can Making Machine

Click picture above to see SRB70D-1 production video for 5L jerrycan

PRODUCTION ARRANGEMENT

1. Machine Foundation Size: 3.5 x 2 m

2. Production Area: 7 x 5 m

3. Minimum Workshop Height: 3.0 m

4. Air Supply Requirement: 1.0m3/min, 0.6Mpa

5. Water Supply Requirement: 8 Tons

6. Machine Power Consumption: 31.5 KW

7. Production Line Power Consumption: 45 KW

8. Whole Line Electricity Arrangement: 250 Amps

9. Minimum Workers Number: 2 Workers

FAQ

Q: How do I choose the suitable EBM machine model for my target product?

We need to see your product picture, size, net weight and your wanted production capacity. Based on these information, we can help you to select the suitable EBM machine and guide you to arrange a whole producing line.

Q: What else should I have to equip the whole producing line?

Simply speaking you also need moulds and auxiliary machines, including material auto-loader, color mixer, scraps crusher, water chiller and air compressor. Based on your product information or your wanted EBM machine model, we can help you to select the suitable accessories and provide the whole line layout sketch and working flow arrangement according to your workshop.

Q: What’s the purchasing flow to buy your EBM machine?

Analysis to your product sample

Select a suitable EBM machine and confirm the whole project quotation

Confirm the mould design and individualized requirement to machine details

Start manufacturing and report to you progress synchronous

Commissioning and samplesconfirmationàLoading and delivery

Dispatch an engineer for installation and commissioning at your site

One year guarantee

Experience sharing and remote support for all life.

Q: What should I do if something wrong with the machine in production?

Please take photos of the alarm page and reminder page, give us a brief problem report. We will send you a self-checking list to find the problem reason, then give you guidance to solve the problem or provide the spare parts to replace the broken one.
