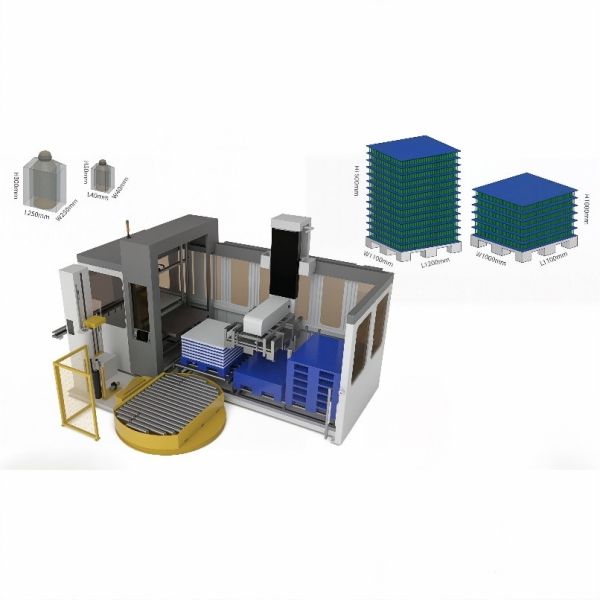

Automatic Bottle Palletizer with Stainless Steel Frame and PLC Control System for Efficient Feeding and Stacking
Automatic Bottle Palletizer with Stainless Steel Frame and PLC Control System for Efficient Feeding and Stacking
Automatic Bottle Palletizer with Stainless Steel Frame and PLC Control System for Efficient Feeding and Stacking
Automatic Bottle Palletizer with Stainless Steel Frame and PLC Control System for Efficient Feeding and Stacking
Specifications
Brand Name :
PINCHI
Certification :
CE
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30 WORK DAYS
Packaging Details :
WOODEN BOX
Product name :
Bottle Palletizer
Dimensions :
L5600mm*W2200mm*H3200mm
Power :
6KW/H
Driven Type :
Pneumatic
Input voltage :
380V 50Hz
Controlsystem :
PLC with touchscreen interface
Warranty :
1 Year
Material :
Stainless steel frame and components
Automatic Grade :
Automatic
Description
Bottle Palletizer

Designed to handle multiple bottle types from 100ml up to 5 liters with automatic feeding and stacking capabilities.

Equipment Characteristics

60-07C Bulk Bottle Palletizer features high-speed code plate capacity, automatic bottle feeding and arrangement, automatic pick and place partitions and pallets. Suitable for various industries handling 100ml-5L bottle types.

  • Arrangement capacity: Up to 1200mm × 1100mm × 300mm
  • Production capacity: Approximately 6,000-10,000 bottles/hour (500ml bottles as example)
  • Maximum stacking height: Up to 2,000mm
Basic Performance Specifications
Specification Details
Equipment Dimensions (L×W×H) 5600mm × 2200mm × 3200mm
Equipment Frame Material 80mm × 40mm × 4.0mm Carbon Steel
Equipment Appearance Sheet Metal Spraying Gray/White
Input Gas Source 0.6-0.8MPa
Input Voltage 380V 50Hz
Maximum Gas Consumption 10L/min
Maximum Power Consumption 6KW/H
Maximum Single-layer Arrangement Size 1200mm × 1100mm × 300mm
Minimum Single-layer Arrangement Size 1100mm × 1000mm × 60mm
Maximum Applicable Bottle Size Ø250mm × H300mm; L250mm × W250mm × H300mm
Minimum Applicable Bottle Size Ø40mm × H60mm; L40mm × W40mm × H60mm
Maximum Total Stacking Height 2000mm
Fastest Single Line Arrangement Time 9 seconds/line
Traverse Module Setting Position Partial Electric
Stacking Layers Custom
Automatic Functions Stacking, Stacking Station, Pick-and-Place Partition/Pallet
Bottle Parameter Recipe Storage 50 Groups
System Remote Communication Yes
System Operation Authority 3 Levels
Payment Terms & Trade Information
Item Details
Product Model 60-07C Bulk Bottle Palletizer (With VAT)
Place of Origin Made in China
Price Validation 100 Days
Payment Terms T/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, long-term for software & system
Commissioning Free commissioning within 3 days (customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day)
After Sales Service

The overall product quality has traceability, with a 1-year product quality warranty period calculated from the date of equipment acceptance.

Free maintenance during warranty period. After-sales service beyond warranty period incurs corresponding travel and material costs.

Daily operation and maintenance services: Our company provides free remote operation and maintenance online services through Pinchi Tech AI cloud platform, particularly for system updates, algorithm settings, software adjustments, etc.
