Specifications
Brand Name :
PINCHI
Model Number :
NC-350
Place of Origin :
FOSHAN
MOQ :
1SET
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30 WORK DAYS
Packaging Details :
WOODEN BOX
Certification :
CE
price :
30000-50000usd /per set
Material: :
Stainless steel
Automatic Grade: :
Automatic
Sleeve shrinking machine speed: :
normal operating speed of 7200 bottles / hour.
Sleeve shrinking machine power consumption: :
2.5KW, excluding the shrinkage part.
Shrink wrap :
PVC，PET、OPS
packing details: :
export standerd wooden case
Warranty: :
1 Year
Description
Automatic Stainless Steel Bottle Shrinking Machine NC-350 with 7200 Bottles/Hour Speed for Round and Flat Bottles

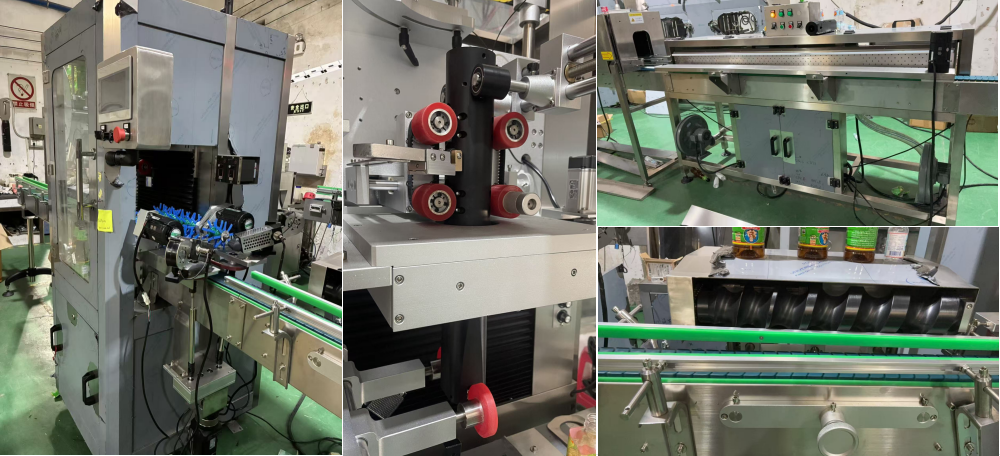

Bottle Shrinking Machine NC-350
The NC-350 Bottle Shrinking Machine is a versatile automatic sleeve applicator designed for various container types including round, flat, square, curved bottles, and cup-shaped containers. Ideal for food and beverage, medical, daily chemical, and other light industrial sectors.
Equipment Features of Bottle Shrinking Machine
  • Durable Construction: Primary components made from extruded aluminum profiles and SUS304 stainless steel for waterproofing, rust resistance, and structural stability
  • Precision Cutting: Five-blade cutting assembly ensures precise, stable operation with excellent cut surface flatness
  • Optimized Drive System: Integrated structure for high and low-speed operation with easy height adjustment
  • Advanced Label Feeding: Efficient material changeover with low-material alert system
  • Premium Control System: Imported high-end servo control for stable and precise operation
Technical Specifications of Bottle Shrinking Machine
Host Dimensions: 2100L * 1150W * 2000H (mm)
Conveyor Belt Frame: 2 meters included
Machine Weight: Approximately 400KG
Bottle Diameter Range: Ø60-Ø120 (mm)
Bottle Height Range: 100-320 (mm)
Applicable Bottle Type: Round containers
Label Length: 80-285mm (Maximum)
Label Thickness: 0.035-0.08mm
Operating Speed: 7200 bottles/hour (normal operation)
Power Consumption: 2.5KW (excluding shrinkage section)
Power Supply: 220V
80mm-285mm Shrink Sleeve Label Equipment Applicator Machine
Technical Drawing
80mm-285mm Shrink Sleeve Label Equipment Applicator Machine
Ordering & Payment Information
Product Model 7200 Bottles/Hr Automatic Bottle Shrinking Machine for 80mm-285mm Sleeve Labeling
Place of Origin Made in China
Price Validation 100 days
Payment Terms T/T, 30% deposit, 70% balance before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, extended coverage for software & system
Commissioning Free commissioning within 3 days (customer covers local accommodation, food, and tickets)
After-Sales Service & Support
Quality Assurance: Complete product quality traceability with 1-year warranty from equipment acceptance date
Maintenance Services: Free maintenance during warranty period; travel and material costs apply for post-warranty service
Remote Support: Free online operation and maintenance services via Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments
Note: Different bottle shapes or sizes may require replacement of center guide column, bottle screw, and knife disc. Conveyor belt power in the labeling section is controlled by the labeling machine.
