6000pcs/Hr-7000pcs/Hr Robotic Bottle Case Packer Aseptic Packaging Machine
6000pcs/Hr-7000pcs/Hr Robotic Bottle Case Packer Aseptic Packaging Machine
Specifications
Brand Name :
PINCHI
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30 WORK DAYS
Packaging Details :
WOODEN BOX
Features :
The equipment is of medium size, enabling quick changeovers and adjustments during production transitions.
Sorting method :
Horizontal packaging arrangement, robotic gripper bottle feeding, automatic bag feeding
Scope of Application :
Suitable for 100ml to 5L bottle sizes across various industries
production capacity :
Taking a 500ml bottle as an example, production capacity is typically around 6,000 to 7,000 bottles per hour.
Maximum power consumption :
6KW/H
delivery time :
40 days
Automatic Grade :
Automatic
Warranty :
1 Year
Description
39-12C/17C Automatic Packaging Machine
Equipment Characteristics

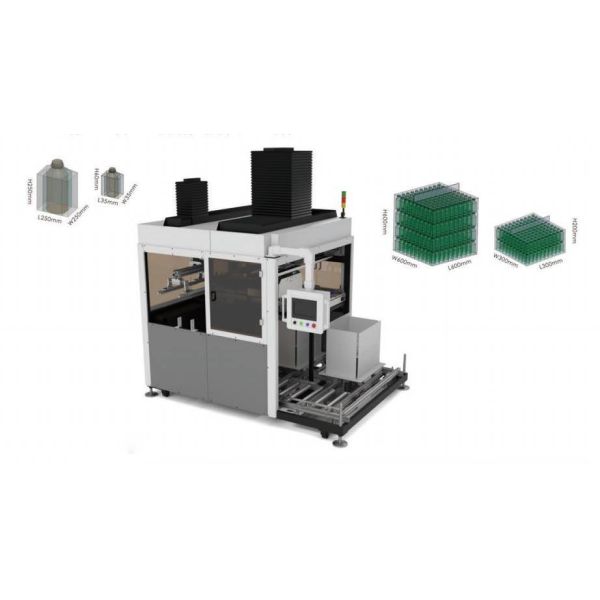

The 39-12C/17C Automatic Packaging Machine features medium equipment volume with quick changeover capabilities. It employs horizontal arrangement packaging with robotic clamping into bottles and automatic bag supply. Suitable for various industries handling 100ml-5L bottles, with encapsulation molding size up to 1200mm width × 750mm × 420mm height for 500ml bottles. Production capacity typically reaches approximately 6,000-7,000 bottles per hour.
Basic Performance Specifications
Equipment Dimensions (L×W×H):5200mm × 1880mm × 2400mmMaximum Package Size (L×W×H):1200mm × 750mm × 420mm
Equipment Frame Material:40mm × 80mm × 4.0mm Carbon SteelMinimum Package Size (L×W×H):500mm × 500mm × 100mm
Equipment Appearance:Sheet Metal Spraying Gray/WhitePackage Arrangement Form:Horizontal Arrangement
Input Gas Source:0.6-0.8MPaFastest Cycle Time for Single-Row Bottle Arrangement:3 seconds/row
Input Voltage:380V 50HzPush Bottle into Bag Reverse Beat (Stop Bottle Feeding Time):15 seconds/round trip
Maximum Applicable Bottle Dimensions:Ø250mm × H420mm; L250mm × W250mm × H420mmDocking Height of Bottle Feeding Conveyor:1200-1000mm Adjustable
Minimum Applicable Bottle Dimensions:Ø40mm × H100mm; L40mm × W40mm × H100mmBottle Feeding Method:Bottle Feeding
Maximum Gas Consumption:10L/minMaximum Power Consumption:6KW/H
Fastest Single-Package Production Capacity (Actual capacity subject to packaging specifications):80 bags/hour
Performance Features
Use of Plastic Bags:Rolled BagAdjustment Point 7 (Upper Bag Opening Height Adjustment):Auto
Equipment Bag Supply Mode:AutomaticChange Production Settings for Part 8 (Lower Bag Opening Width Adjustment):Manual; Auto
Automatic Bottle Jam Alarm Function:YesAdjustment Position 9 (Lower Bag Opening Height Adjustment):Auto
Automatic Alarm Function for Card Wallets:YesAdjustment Point 10 (Bag Mouth Upper Sealing Height Adjustment):Auto
Number of Sealing Lines:2Change Production Settings for Part 11 (Lower Bag Mouth Sealing Width Adjustment):No Need Adjustment
Broken Bag/Missing Bag Alarm Function:YesChange Production Settings for Part 12 (Bottle/Bag Pressing Height Adjustment):Auto
Bag Sealing and Tightening Function:YesChange Production Settings for Machine Part 13 (Packaging Station Width Adjustment):Manual; Auto
System Remote Communication Function:YesChange Production Settings for Part 14 (Bag Length Adjustment):Auto
System Operation Authority:123 LevelChange Production Settings for Part 15 (Bag Width Adjustment):Auto
Changeover Adjustment Point 1 (Bottle Infeed Channel Width Adjustment):ManualAdjustment Point 16 (Bag Tail Upper Sealing Height Adjustment):No Need Adjustment
Adjustment Point 2 for Production Changeover (Single-Row Bottle Misalignment Correction):AutomaticAdjustment Point 17 (Lower Sealing Height Adjustment at Bag Tail):No Need Adjustment
Adjustment Point 3 for Changeover (Bottle Storage Area Width Adjustment):Manual; AutoChange Production Settings for Part 18 (Bag Width Adjustment):Manual
Change Production Settings for Part 6 (Upper Bag Opening Width Adjustment):Manual; AutoAdjustment Point 20 (Adjustment of Bag-Out Conveyor Distance):Auto
Adjustment Point 4 for Product Changeover (Front-to-Back Position Adjustment of Bottle Pusher):AutoAdjustment Point 5 for Changeover (Bottle Pusher Body Width Adjustment):Manual; Auto
Change Production Settings for Part 19 (Adjust Bag Roll Material):Mechanical Quick Manual Adjustment
Payment Terms and Trade Conditions
Description of Goods Model39-12C/17C Automatic Packaging Machine
RemarksWith VAT
Place of OriginMade in China
Price Validation100 days
Payment TermT/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time35 days after receipt of advanced payment
Warranty1 year for complete machine, long time for software & system
CommissioningFree commissioning within 3 days, customer bears engineer's local food, accommodation and tickets, extra time charged at USD 150/day
After Sales Service
The overall product quality has traceability, and the product quality warranty period is 1 year, calculated from the date of equipment acceptance. Free maintenance is provided during the warranty period, with corresponding travel and material costs charged for after-sales service that exceeds the warranty period.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform, particularly for system updating, algorithm setting, software adjustment, etc.
