Compact Fully Automatic Bottle Packaging Machine Beer Packaging Equipment OEM
Compact Fully Automatic Bottle Packaging Machine Beer Packaging Equipment OEM
Compact Fully Automatic Bottle Packaging Machine Beer Packaging Equipment OEM
Compact Fully Automatic Bottle Packaging Machine Beer Packaging Equipment OEM
Compact Fully Automatic Bottle Packaging Machine Beer Packaging Equipment OEM
Compact Fully Automatic Bottle Packaging Machine Beer Packaging Equipment OEM
Compact Fully Automatic Bottle Packaging Machine Beer Packaging Equipment OEM
Compact Fully Automatic Bottle Packaging Machine Beer Packaging Equipment OEM
Specifications
Brand Name :
PINCHI
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30 WORK DAYS
Packaging Details :
WOODEN BOX
Certification :
CE
Features :
Compact equipment size enables rapid changeovers and adjustments.
Sorting method :
Horizontal packaging arrangement, bottle feeding, automatic bag feeding
Scope of Application :
Suitable for bottles ranging from 50 to 500 ml, such as pharmaceutical and healthcare bottles and cosmetic bottles. Designed for storage and transportation scenarios where items are bagged and then boxed.
production capacity :
Taking a 500ml bottle as an example，Production capacity is typically around 3,000 to 4,000 bottles per hour.
Equipment extemal dimensions :
L3700mm*W1450+800mm*H2200mm
Maximum power consumption :
4KW/H
Warranty :
1 Year
Automatic :
Automatic Grade
Description

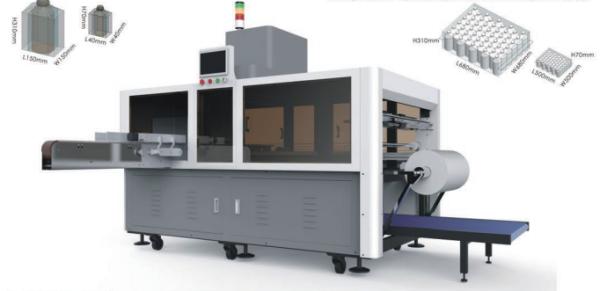

23-11C/16C Automatic Bottle Packaging Machine
Equipment Characteristics of Bottle Packaging Machine
The 23-11C/16C Automatic Bottle Packaging Machine features a compact design with quick changeover and adjustment capabilities. This horizontal encapsulation system utilizes conveyor bottle feeding and automatic bag supply, making it ideal for pharmaceutical, healthcare, and cosmetic bottles ranging from 50-500ml. Perfect for storage and transportation applications requiring bag-to-box packaging, this machine handles maximum encapsulation sizes up to 680mm × 680mm × 310mm.
Production Capacity: Approximately 3,000-4,000 bottles per hour (based on 100ml bottle example)
Technical Specifications of Bottle Packaging Machine
Specification Details Specification Details
Equipment Dimensions (L×W×H): 3700mm × 1450+800mm × 2200mm Maximum Packable Size (L×W×H): 680mm × 680mm × 310mm
Equipment Frame Material: 40mm × 80mm × 4.0mm Carbon Steel Minimum Packable Size (L×W×H): 500mm × 500mm × 70mm
Equipment Appearance: Sheet metal spraying gray/white Package Arrangement Form: Horizontal arrangement
Input Gas Source: 0.6-0.8MPa Fastest Single Row Bottle Arrangement: 7 seconds/row
Input Voltage: 380V, 50Hz Bottle Feeding Reverse Cycle Time: 15 seconds/round trip
Maximum Gas Consumption: 10L/min Maximum Power Consumption: 4KW/H
Maximum Applicable Bottle Size: φ150mm × H310mm; L150mm × W150mm × H310mm Bottle Feeding Conveyor Height: 1100-900mm Adjustable
Minimum Applicable Bottle Size: φ40mm × H70mm; L40mm × W40mm × H70mm Bottle Feeding Method: Conveyor bottle feeding
Maximum Single Package Capacity: 80 bags/hour

Ordering & Payment Terms of Bottle Packaging Machine
Description Details
Product Model 23-11C/16C Automatic Bottle Packaging Machine (With VAT)
Place of Origin Made in China
Price Validation 100 days
Payment Terms T/T, 30% deposit, 70% balance payment before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, extended coverage for software & system
Commissioning Free commissioning within 3 days (customer covers engineer's local accommodation, food, and travel; additional time charged at USD 150/day)
After-Sales Service & Support of Bottle Packaging Machine
  • Complete product quality traceability system
  • 1-year product quality warranty period from equipment acceptance date
  • Free maintenance during warranty period
  • Travel and material costs apply for service beyond warranty period
  • Free remote operation and maintenance services via Pinchi Tech AI cloud platform
  • Comprehensive support for system updates, algorithm settings, and software adjustments
