6KW/H Industrial Packing Machine 2500ml Pet Bottle Packaging Machine
6KW/H Industrial Packing Machine 2500ml Pet Bottle Packaging Machine
6KW/H Industrial Packing Machine 2500ml Pet Bottle Packaging Machine
6KW/H Industrial Packing Machine 2500ml Pet Bottle Packaging Machine
6KW/H Industrial Packing Machine 2500ml Pet Bottle Packaging Machine
6KW/H Industrial Packing Machine 2500ml Pet Bottle Packaging Machine
6KW/H Industrial Packing Machine 2500ml Pet Bottle Packaging Machine
6KW/H Industrial Packing Machine 2500ml Pet Bottle Packaging Machine
Specifications
Brand Name :
PINCHI
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30 WORK DAYS
Packaging Details :
WOODEN BOX
Certification :
CE
Features :
The equipment is of medium size, enabling quick changeovers and adjustments.
Automatic Grade :
Automatic
Sorting method :
Horizontal packaging arrangement, bottle feeding, automatic bag feeding
Input Voltage :
380V 50Hz
Scope of Application :
Suitable for 100ml to 5L bottle sizes across various industries
Maximum power consumption :
6KW/H
production capacity :
Taking a 500ml bottle as an example, production capacity is typically around 4,000 to 5,000 bottles per hour.
Warranty :
1 Year
Description
39-11C/16C Automatic Bottle Packaging Machine
Equipment Characteristics of Bottle Packaging Machine

This medium-volume automatic bottle packaging machine features quick production changeover and adjustment capabilities. With horizontal packaging arrangement and bottle conveying system, it automatically supplies bags and is suitable for various industries handling 100ml-5L bottle types. The machine can form packages up to 1200mm length × 750mm width × 420mm height, achieving production capacity of approximately 4,000-5,000 bottles per hour (based on 500ml bottle example).

Basic Performance Specifications of Bottle Packaging Machine
Equipment Dimensions (L×W×H): 5200mm × 1880+800mm × 2400mm Maximum Package Size (L×W×H): 1200mm × 750mm × 420mm
Equipment Frame Material: 40mm×80mm×4.0mm Carbon Steel Minimum Package Size (L×W×H): 500mm × 500mm × 100mm
Equipment Appearance: Sheet Metal Spraying Gray/White Package Arrangement Form: Horizontal Arrangement
Input Gas Source: 0.6-0.8MPa Fastest Cycle Time for Single-Row Bottle Arrangement: 7 seconds/row
Input Voltage: 380V 50Hz Bottle Pushing Cycle Time: 15 seconds/round trip
Maximum Applicable Bottle Dimensions: Ø250mm×H420mm; L250mm×W250mm×H420mm Docking Height of Bottle Feeding Conveyor: 1200-1000mm Adjustable
Minimum Applicable Bottle Dimensions: Ø40mm×H100mm; L40mm×W40mm×H100mm Bottle Feeding Method: Bottle Feeding
Maximum Gas Consumption: 10L/min Maximum Power Consumption: 6KW/H
Fastest Single-Package Production Capacity: 80 bags/hour

Note: Actual capacity subject to packaging specifications

Performance Features of Bottle Packaging Machine
Use of Plastic Bags: Rolled Bag Adjustment Point 7 (Upper Bag Opening Height): Auto
Equipment Bag Supply Mode: Automatic Adjustment Point 8 (Lower Bag Opening Width): Manual / Auto
Automatic Bottle Jam Alarm Function: Yes Adjustment Point 9 (Lower Bag Opening Height): Auto
Automatic Alarm Function for Card Wallets: Yes Adjustment Point 10 (Bag Mouth Upper Sealing Height): Auto
Number of Sealing Lines: 2 Adjustment Point 11 (Lower Bag Mouth Sealing Width): No Adjustment Needed
Broken Bag/Missing Bag Alarm Function: Yes Adjustment Point 12 (Bottle/Bag Pressing Height): Auto
Bag Sealing and Tightening Function: Yes Adjustment Point 13 (Packaging Station Width): Manual / Auto
System Remote Communication Function: Yes Adjustment Point 14 (Bag Length Adjustment): Auto
System Operation Authority: 3 Levels Adjustment Point 15 (Bag Width Adjustment): Auto
Adjustment Point 1 (Bottle Infeed Channel Width): Manual Adjustment Point 16 (Bag Tail Upper Sealing Height): No Adjustment Needed
Adjustment Point 2 (Single-Row Bottle Misalignment Correction): Automatic Adjustment Point 17 (Lower Sealing Height at Bag Tail): No Adjustment Needed
Adjustment Point 3 (Bottle Storage Area Width): Manual / Auto Adjustment Point 18 (Bag Width Adjustment): Manual
Adjustment Point 4 (Front-to-Back Position of Bottle Pusher): Auto Adjustment Point 19 (Bag Roll Material Adjustment): Mechanical Quick Manual Adjustment
Adjustment Point 5 (Bottle Pusher Body Width): Manual / Auto Adjustment Point 20 (Bag-Out Conveyor Distance): Auto
Adjustment Point 6 (Upper Bag Opening Width): Manual / Auto

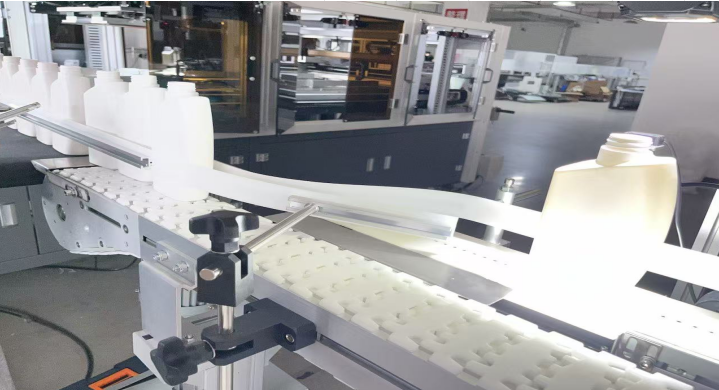

Product detail images of Bottle Packaging Machine
6KW/H Industrial Packing Machine 2500ml Pet Bottle Packaging Machine
Payment Terms and Trade Conditions of Bottle Packaging Machine
Product Model 39-11C/16C Automatic Bottle Packaging Machine
VAT Status With VAT
Place of Origin Made in China
Price Validation 100 days
Payment Term T/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, long-term for software & system
Commissioning Free commissioning within 3 days (customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day)
After Sales Service of Bottle Packaging Machine

The overall product quality has traceability, and the product quality warranty period is 1 year, calculated from the date of equipment acceptance.

Free maintenance during the warranty period, with corresponding travel and material costs charged for after-sales service exceeding the warranty period.

Daily Operation and Maintenance Services:

Our company provides free remote operation and maintenance online services through the Pinchi Tech AI cloud platform, particularly for system updates, algorithm settings, software adjustments, and related technical support.
