6KWH Juice Coconut Water Packing Machine Plastic Bottle 380V
6KWH Juice Coconut Water Packing Machine Plastic Bottle 380V
Specifications
Brand Name :
PINCHI
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30 WORK DAYS
Packaging Details :
WOODEN BOX
Features :
The equipment is of medium size, with quick changeovers and adjustments.
Sorting method :
Horizontal packaging arrangement, dual robotic gripper bottle feeding, automatic bag feeding
Scope of Application :
Suitable for 100ml to 5L bottle sizes across various industries
production capacity :
Taking a 500ml bottle as an example，Production capacity is typically around 8,000 to 10,000 bottles per hour.
packing details :
export standerd wooden case
Automatic Grade :
Automatic
Maximum power consumption :
6KW/H
Warranty :
1 Year
Description
39-12.1C/17.1C Automatic Packaging Machine
This medium-volume automatic packaging machine features quick changeover and adjustment capabilities. It utilizes horizontal packaging arrangement with dual robotic grippers for bottle handling and automatic bag supply. Suitable for various industries handling 100ml-5L bottles, with maximum packaging dimensions of 1200mm × 750mm × 420mm. Production capacity reaches approximately 8,000-10,000 bottles per hour (based on 500ml bottles).
Technical Specifications
Equipment Dimensions (L×W×H): 5200mm × 1880mm × 2400mm Maximum Package Size (L×W×H): 1200mm × 750mm × 420mm
Equipment Frame Material: 40mm × 80mm × 4.0mm Carbon Steel Minimum Package Size (L×W×H): 500mm × 500mm × 100mm
Equipment Appearance: Sheet Metal Spraying Gray/White Package Arrangement Form: Horizontal Arrangement
Input Gas Source: 0.6-0.8MPa Fastest Cycle Time for Single-Row Bottle Arrangement: 4 seconds/row
Input Voltage: 380V 50Hz Bottle Feeding to Reverse Beat Time: 15 seconds/round trip
Maximum Applicable Bottle Dimensions: Ø250mm × H420mm; L250mm × W250mm × H420mm Docking Height of Bottle Feeding Conveyor: 1200-1000mm Adjustable
Minimum Applicable Bottle Dimensions: Ø40mm × H100mm; L40mm × W40mm × H100mm Bottle Feeding Method: Dual-Channel Robotic Gripper
Maximum Gas Consumption: 10L/min Maximum Power Consumption: 6KW/H
Fastest Single-Package Production Capacity: 80 bags/hour (actual capacity subject to packaging specifications)
Performance Features
Feature Specification Feature Specification
Use of Plastic Bags: Rolled Bag Adjustment Point 7 (Upper Bag Opening Height): Auto
Equipment Bag Supply Mode: Automatic Change Production Settings Part 8 (Lower Bag Opening Width): Manual; Auto
Automatic Bottle Jam Alarm: Yes Adjustment Point 9 (Lower Bag Opening Height): Auto
Automatic Alarm for Card Wallets: Yes Adjustment Point 10 (Bag Mouth Upper Sealing Height): Auto
Number of Sealing Lines: 2 Change Production Settings Part 11 (Lower Bag Mouth Sealing Width): No Adjustment Needed
Broken Bag/Missing Bag Alarm: Yes Change Production Settings Part 12 (Bottle/Bag Pressing Height): Auto
Bag Sealing and Tightening Function: Yes Change Production Settings Part 13 (Packaging Station Width): Manual; Auto
System Remote Communication: Yes Change Production Settings Part 14 (Bag Length Adjustment): Auto
System Operation Authority: 3 Levels Change Production Settings Part 15 (Bag Width Adjustment): Auto
Changeover Adjustment Point 1 (Bottle Infeed Channel Width): Manual Adjustment Point 16 (Bag Tail Upper Sealing Height): No Adjustment Needed
Adjustment Point 2 (Single-Row Bottle Misalignment Correction): Automatic Adjustment Point 17 (Lower Sealing Height at Bag Tail): No Adjustment Needed
Adjustment Point 3 (Bottle Storage Area Width): Manual; Auto Change Production Settings Part 18 (Bag Width Adjustment): Manual
Adjustment Point 4 (Front-to-Back Position of Bottle Pusher): Auto Change Production Settings Part 19 (Bag Roll Material Adjustment): Mechanical Quick Manual Adjustment
Adjustment Point 5 (Bottle Pusher Body Width): Manual; Auto Adjustment Point 20 (Bag-Out Conveyor Distance): Auto
Change Production Settings Part 6 (Upper Bag Opening Width): Manual; Auto

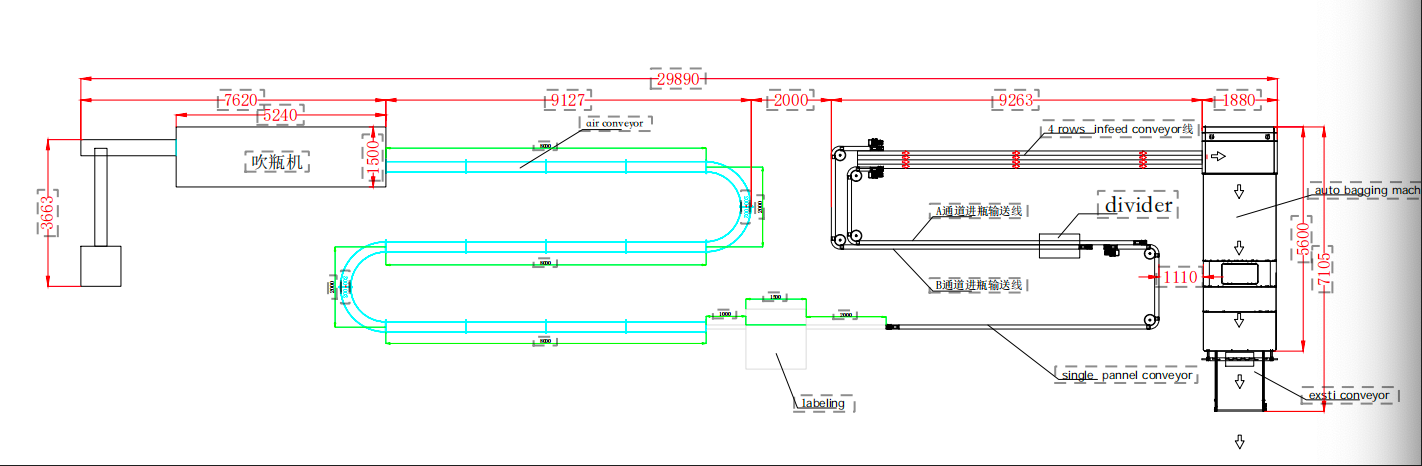

Product Drawing Showcase
6KWH Juice Coconut Water Packing Machine Plastic Bottle 380V
Ordering & Delivery Terms
Description Details
Product Model 39-12.1C/17.1C Automatic Packaging Machine
VAT Status Included
Place of Origin Made in China
Price Validation 100 days
Payment Terms T/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, long-term for software & system
Commissioning Free commissioning within 3 days (customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day)
After-Sales Service & Support
Quality Assurance: Complete product quality traceability with 1-year warranty period from equipment acceptance date.
Warranty Coverage: Free maintenance during warranty period. After-warranty service incurs travel and material costs.
Remote Support: Free remote operation and maintenance services via Pinchi Tech AI cloud platform, including system updates, algorithm settings, and software adjustments.
