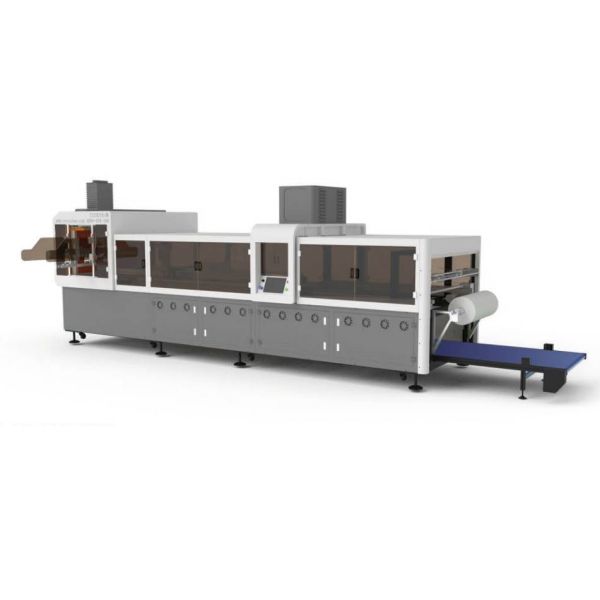

100ml-5L Oil Bottle Packing Machine For Cold Drink Horizontal Arrangement
100ml-5L Oil Bottle Packing Machine For Cold Drink Horizontal Arrangement
Specifications
Features :
High-speed packaging capacity
Equipment Dimensions :
L7200mm*W1880mm*H2400mm
Packaging Details :
WOODEN BOX
Price :
10000-20000USD
Place of Origin :
FOSHAN
Push tho bottle inlo the bag to the reverso beat :
8sec/round trip
Delivery Time :
30 WORK DAYS
Fastest cycle time for single-row bottle arrangement :
4 seconds/2 row
Automatic Grade :
Automatic
Warranty :
1 Year
Payment Terms :
T/T
Brand Name :
PINCHI
production capacity :
Taking a 500ml bottle as an example, production capacity is typically around 12,000 to 18,000 bottles per hour.
MOQ :
1SET
Supply Ability :
20SETS
Sorting method :
Horizontal packaging arrangement, dual robotic gripper bottle feeding, automatic bag feeding
Scope of Application :
Suitable for 100ml to 5L bottle sizes across various industries
Description
50-13.1C/18.1C Automatic Bottle Packaging Machine
Equipment Characteristics of Bottle Packaging Machine

The 50-13.1C/18.1C is a high-speed automatic bottle packaging machine featuring horizontal arrangement with dual manipulator clamping for bottle handling. This system provides automatic bag supply and is suitable for various industries.

  • Handles bottle sizes from 100ml to 5L
  • Maximum packaging dimensions: 1200mm × 750mm × 420mm
  • Production capacity: Approximately 12,000-18,000 bottles per hour (based on 500ml bottle example)
Technical Specifications of Bottle Packaging Machine
Equipment Dimensions (L×W×H): 7200mm × 1880mm × 2400mm
Maximum Package Size (L×W×H): 1200mm × 750mm × 420mm
Minimum Package Size (L×W×H): 500mm × 500mm × 100mm
Equipment Frame Material: 40mm × 80mm × 4.0mm Carbon Steel
Input Voltage: 380V 50Hz
Maximum Power Consumption: 6KW/H
Input Gas Source: 0.6-0.8MPa
Maximum Gas Consumption: 10L/min
Bottle Feeding Method: Dual-channel robotic gripper bottle feeding
Fastest Production Capacity: 100 bags/hour
Performance Features of Bottle Packaging Machine
Bag Type: Plastic Rolled Bag
Bag Supply Mode: Automatic
Number of Sealing Lines: 2
Automatic Alarm Functions: Bottle Jam, Card Wallets, Broken/Missing Bag
Bag Sealing and Tightening: Yes
System Remote Communication: Yes
System Operation Authority: 3 Levels
Features 20 adjustment points with manual, automatic, or combined adjustment capabilities for production changeovers.

Parts Diagram of Bottle Packaging Machine
100ml-5L Oil Bottle Packing Machine For Cold Drink Horizontal Arrangement
Payment & Trade Terms of Bottle Packaging Machine
Product Model 50-13.1C/18.1C Automatic Bottle Packaging Machine
Place of Origin China
Price Validation 100 days
Payment Terms T/T, 30% deposit, 70% balance before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, extended software & system support
Commissioning Free commissioning within 3 days (customer covers local expenses)
After-Sales Service of Bottle Packaging Machine
  • Complete product quality traceability system
  • 1-year warranty period from equipment acceptance date
  • Free maintenance during warranty period
  • Free remote operation and maintenance via Pinchi Tech AI cloud platform
  • Includes system updates, algorithm settings, and software adjustments
