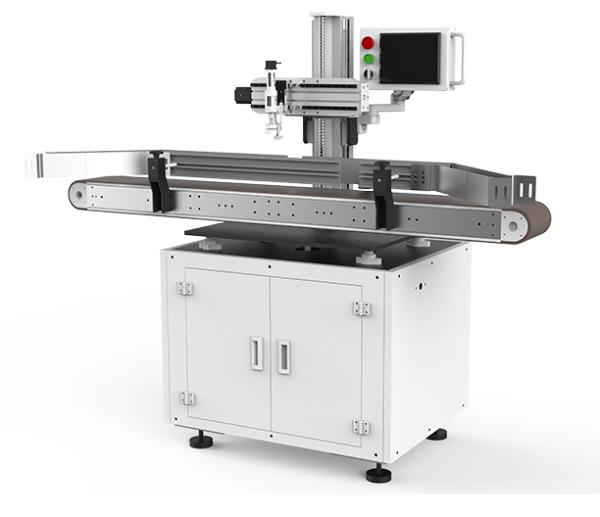

High-Speed Single Head Leak Detectorfor Plastic Bottles With Integrated Conveyor
High-Speed Single Head Leak Detectorfor Plastic Bottles With Integrated Conveyor
Specifications
Brand Name :
PINCHI
Certification :
CE
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
40 days
Packaging Details :
WOODEN BOX
Name :
Leak Tester Machine
Automatic Grade :
Automatic
Input Voltage :
220V 50Hz
Material :
Stainless steel
Warranty :
1 Year
Machine Type :
Precision
Packing Details :
export standerd wooden case .
Description
Bottle Leak Detection Equipment with Single Head Leak Tester and Built-in Conveyor Belt
Equipment Overview

The 16-03C-1 Single-Head Follow-Up Leak Tester is designed for testing food, beverage, chemical, and plastic containers. Its high precision detection capability identifies even the slightest leaks, ensuring product integrity.

Featuring a color touchscreen interface, the machine provides intuitive and convenient operation. With PLC control, it can store settings for different products, enabling easy retrieval and switching between product types.

The equipment offers both manual and online inspection modes, ensuring the testing process causes no damage to products. Highly customizable, it is tailored to specific customer requirements and can inspect a variety of plastic bottle types.

Equipment Specifications
Specification Details
Maximum Leak Testing Capacity (300ml basis) 6000 bottles/hour (capacity inversely proportional to volume)
Testing Method Pressure Drop
Built-in Conveyor Belt Yes
Frame Material Powder-coated Carbon Steel
Bottle Ejection Function Yes
Bottle Change Adjustment Automatic (No component replacement required; adjustment takes approx. 1 minute)
Data Storage 50 sets
Bottle Separation Function To be determined based on bottle type
Conveyor Direction Rightward (facing machine operation side)
Power Supply AC 380V/50Hz
Conveyor Belt Height from Ground Adjustable 850-1200mm
Bottle Height Measurement Range 60-380mm adjustable
Conveyor Belt Width 200mm
Number of Leak Detection Heads 1
Equipment Dimensions L1600mm × W800mm × H1600mm
Leak Detection Head Height from Ground 900-1550mm adjustable
Air Supply 0.6-0.8MPa
Leak Detection Aperture Customizable
Testing Orifice Diameter 0.2mm
Leak Detection Method Follow-up
Equipment Features
  • High precision and stability: Detects minute yet critical leaks with reliable performance
  • User-friendly operation: PLC programming and HMI interface store settings for multiple product types, enabling quick recall and switching
  • Enhanced production efficiency: Reduces waste and saves operational costs
  • Highly customizable: Tailored to specific product characteristics and customer requirements
Payment Terms and Trade Terms
Description Details
Product Model 16-03C-1 Single-Head Follow-Up Leak Tester (With VAT)
Place of Origin Made in China
Price Validation 100 days
Payment Term T/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, long-term for software & system
Commissioning Free commissioning within 3 days; customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day
After Sales Service

The overall product quality has full traceability, with a 1-year warranty period calculated from the date of equipment acceptance.

Free maintenance is provided during the warranty period. After-sales service beyond the warranty period incurs corresponding travel and material costs.

Daily operation and maintenance services include free remote operation and maintenance through the Pinchi Tech AI cloud platform, particularly for system updates, algorithm settings, and software adjustments.
