Lightweight Multi Gas Detector With Graphing Rechargeable Battery
Lightweight Multi Gas Detector With Graphing Rechargeable Battery
Lightweight Multi Gas Detector With Graphing Rechargeable Battery
Lightweight Multi Gas Detector With Graphing Rechargeable Battery
Specifications
Brand Name :
Bosean
Model Number :
BH-4A
Certification :
CE ATEX FCC ROHS SIL
Place of Origin :
China
MOQ :
1
Price :
USD 80 to 100 per piece
Payment Terms :
L/C, D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 pieces per day
Delivery Time :
1-2 working days
Packaging Details :

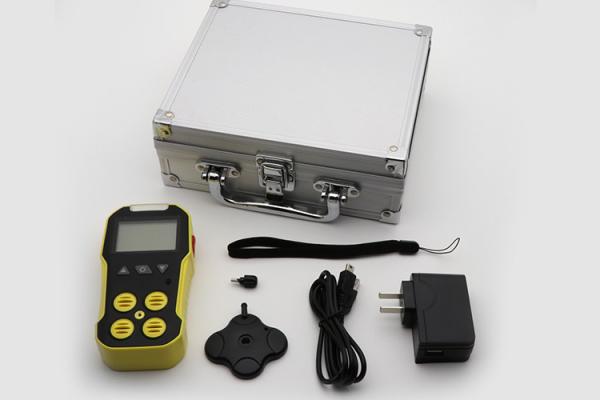

Aluminium alloy suitcase with carton box
Material :
ABS+PC
Detecting Gas :
CH4 O2 CO H2S
Sensor Life :
2 years
Sampling Method :
Diffusion
Measure Range :
CH4 (0-100%LEL), O2 (0-30%VOL), CO (0-1000ppm), H2S (0-100ppm)
Explosion-proof Grade :
Exib IIB T3 Gd
Description

Multi Gas Detector Color Display with Graphing Rechargeable Battery Sound Light Vibration Alarm

Brief Introduction:

The BH-4A is a cost-effective four-in-one composite gas detector. It is a portable detection and alarm device that continuously detects the ambient gas concentration in the workplace. The four-in-one composite gas detector uses natural diffusion to detect ambient gas. It can be freely combined with a variety of different gases according to user needs. It has a wide application range. It adopts high-quality imported electrochemical gas sensor with excellent sensitivity and excellent repeatability. Sexuality; Baoshi's four-in-one composite gas detector has high reliability; LCD color screen display, intuitive and clear, friendly interactive interface, simple operation; adjustable high and low alarm function.

Features:

  1. Three buttons to operate :Three buttons,easy to operate,and cost-effective.
  2. Alarm methods:indicate alarm by sound,light and vibration,user can set high low alarm point according to actual need.
  3. Large capacity battery:fast charging,can working continuously for at least 8 hours. Packing with aluminum alloy box,convenient to carry.

Sensors supported:

Can detector more than 30 kinds of gases, can customize flexibly according to user’s need (detect 4 different gases in one unit), normally detect Ex,O2,H2S,CO gases.

Application Area:

The detector is suitable for explosion-proof, toxic gas leakage and rescue, underground pipelines, mines, metallurgy, power plants, chemicals, tunnels, etc., effectively avoiding the occurrence of poisoning accidents, ensuring the safety of workers and avoiding losses of production equipment.

Lightweight Multi Gas Detector With Graphing Rechargeable Battery

Specifications:

Operating & Storage Environment Temperature: -20°C~55°C (-4F~122F)
Humidity: 5%-95% (Relative humidity non-condensing)
Pressure: 95~110kPa
Sampling method Diffusion type
Detecting Range CO: 0~1000ppm
H2S:0~100 PPM
O2: 0~30%vol
Combustible Explosive Gas (Ex / LEL / CH4): 0~100%LEL
Sensor O2 /H2S / CO: plug-in electrochemical sensor
Combustible gas (LEL): plug-in catalytic combustion sensor
Alarm Type low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm
Resolution 0.1%VOL (O2), 1ppm (CO), 0.1ppm (H2S), 1%LEL (EX)
Accuracy 3% F.S
Response time 10s
Repeatability 1%
Zero drift 1%
Display Alphanumeric large LCD displays the real time gas concentration and alarm stage
Backlight Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down.
Self-checking Function Self-checking Battery power, display, sensor, hardware failure
Explosion-proof EXiaIICT4
Protection grade IP65
Power Supply Rechargeable lithium battery
Dimensions 130mm*67mm*30mm

FAQ:

Q1:Are you a trading company or manufacturer ?

A1:We are factory.

Q2:What's your payment method?

A2:T/T, Paypal, Western Union, L/C, Credit card etc.

Q3:Can you customize based on my requirement?

A3: Yes OEM /ODM available.

Q4:What's your nomal shipment?

A4: Usually it's by air express such as DHL,FEDEX,TNT or UPS, door to door.

Q5: Warranty period?

A5:12 months warranty for all products.
