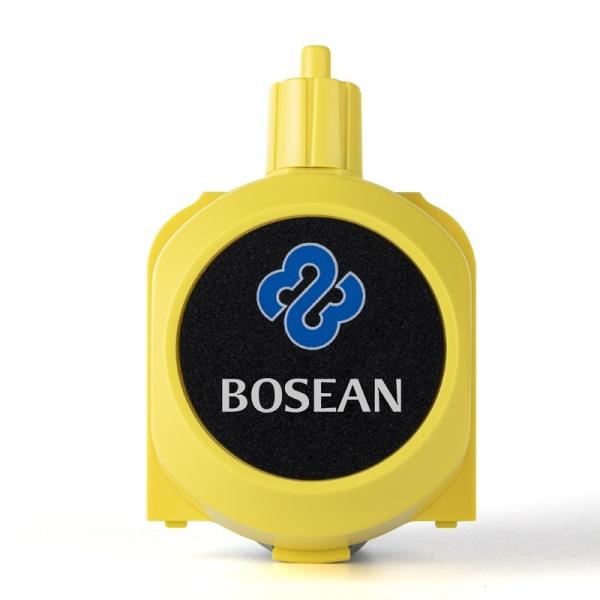

Handheld Multi Gas Meter Confined Space For C7H8 C8H10 HF CH2O
Handheld Multi Gas Meter Confined Space For C7H8 C8H10 HF CH2O
Specifications
Brand Name :
Bosean
Model Number :
BH-4M
Certification :
CE,FCC,ATEX,ROHS,SIL
Place of Origin :
Zhengzhou,Henan,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS/DAY
Delivery Time :
3-8 WORK DAYS
Packaging Details :
each set detector alarm will be packed with the export standard carton package or aluminum box or as per customer require
Product Name :
Multi Gas Meter
Type :
Handheld
Detecting gas :
Support 1~4 kinds of gas detection
Accuracy :
≤±5% F.S.
Usage :
C7H8 C8H10 HF CH2O
Standby time :
≥8h
Charging time :
<5h
Protection Grade :
IP65
Description

Handheld Multi Gas Meter Confined Space For C7H8 C8H10 HF CH2O

Multi Gas Meter introduction

Multi Gas Meter has large LCD screen and alarms with audio/visual and vibratory indicators, making it a favorite indicator for operators working in demanding industrial environments.

Multi Gas Meter Quick details

Gas sampling method: Pump suction type, natural diffusion type

Response time: Pump suction type T90＜30s, natural diffusion type T90＜60s

Detecting gas: Support 1~4 kinds of gas detection

Accuracy: ≤±5% F.S.

Indication: 2.0 inch color display, resolution 320*240

Alarm methods: Acousto-optic vibrating display quadruple alarm, TWA/STEL alarm

Data communication: Support USB to connect to the upper computer of the computer to view data

Standby time: ≥8h

Charging time: <5h

Gas Sensor Life: 2 years

Protection Grade: IP65

Weight: 372.5g(include pump)

Dimensions: Pump suction type: 160*69*75mm;

natural diffusion type: 150*69*55mm

SPECIFICATIONS
Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-100%LEL 1%lel 20%LEL 50%LEL
C2H4O 0-100ppm 1/0.1ppm 20ppm 50ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C3H8 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C2H5OH 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
NH3 0-100ppm 0.1/1ppm 20ppm 50ppm
CL2 0-20ppm 0.1ppm 5ppm 10ppm
O3 0-10ppm 0.1ppm 2ppm 5ppm
SO2 0-20ppm 0.1/1ppm 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5000ppm 1ppm/0.1%vol 1000ppm 2000ppm
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1/0.01ppm 10ppm 20ppm
HCL 0-20ppm 0.001/0.1ppm 5ppm 10ppm
CH2O 0-20ppm 1/0.1ppm 5ppm 10ppm
HF 0-100ppm 0.01/0.1ppm 2ppm 5ppm
C7H8/C8H10 0-20ppm 0.01/0.1ppm 5ppm 10ppm

Note: Not all gases and range are listed, if you need more information, please contact us.

Details of Multi Gas Detector

* The new GUI design scheme is adopted, the interface display is more comprehensive, and the operation is more user-friendly.
* Natural diffusion or pumping gas detection methods can be selected, and 1 to 4 gas types can be detected at the same time.
* Using miniature vacuum sampling pump, stable flow, long life and low noise.
* It adopts a 2.0-inch high-definition color screen with a wide viewing angle of 120 degrees.
* The three-button operation is simple and intuitive.
* Support a variety of extended functions to meet users' different product applications.
*Sound, light, vibration and display four alarm modes.
*It supports switching between real-time gas concentration data display and real-time curve display mode.
*It supports multi-point calibration, up to 5 points calibration.
*Multiple data storage methods, alarm storage, manual storage.
*Support Chinese and English switching, other languages can be customized.
*Large-capacity (2500mAh) rechargeable lithium battery, which can last longer.
*The USB interface adopts Type-C interface, and there is no fear of plugging in front and back.
*Support TWA, STEL alarm function.
