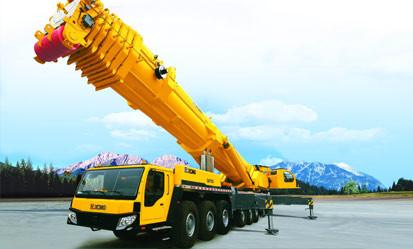

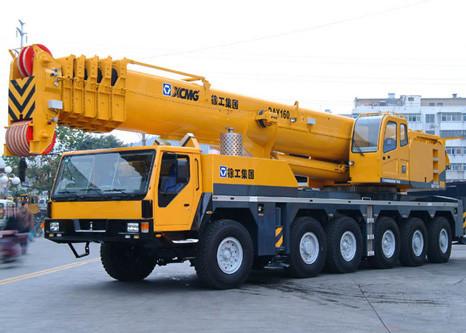

Durable 160Ton Hydraulic Mobile Crane , All Terrian Crane QAY160
Durable 160Ton Hydraulic Mobile Crane , All Terrian Crane QAY160
Durable 160Ton Hydraulic Mobile Crane , All Terrian Crane QAY160
Durable 160Ton Hydraulic Mobile Crane , All Terrian Crane QAY160
Specifications
Place of Origin :
China
Brand Name :
XCMG
Certification :
CE
Model Number :
QAY160
MOQ :
1pc
Price :
negotiate
Packaging Details :
Ro-Ro
Delivery Time :
30-50 days
Payment Terms :
30% deposit, balance before shipment
Supply Ability :
10000pcs/year
Brand :
XCMG
Max. rated total lifting capacity :
160t
Base boom :
13.6m
Fully extended boom :
60m
Lateral :
8.7(6.5)m
Rated power :
380/1800kW/(r/min)
Description

Durable 160Ton Hydraulic Mobile Crane , All Terrian Crane QAY160

Feature

• Adopt new single cylinder retractable technique and high-intensity imported steel, featuring lighter dead-weight and stronger performance.
• The self-combination counterweight technique developed by ourselves can effectively improve the lifting performance by 30%.
• The electrohydraulic proportion control multi-axle steering mode can realize many kinds of steering modes.
• The new brake technique can reduce 2/3 maintenance cost, and improve the travel safety.
• The comfortable cabs and outrigger operation completely show the humanity design concept.
• Equip with the XCMG unique control system, auxiliary retractable boom system, virtual wall system, perfect failure diagnosis, real-time detection, CAN technique, etc.

Technical Parameters

Dimension

Overall length

mm

15900

Overall width

mm

3000

Overall height

mm

4000

Wheel base

Axle 1, Axle 2

mm

2750

Axle 2,Axle 3,Axle 4,Axle 5, Axle 6

mm

1650

Axle 3, axle 4

mm

2000

Track

mm

2590

Mass

Total mass in travel state

kg

70900

Axle load

Axle 1, Axle 2

kg

11635

Axle 3, Axle 4

kg

11815

Axle 5, Axle 6

kg

12000

Power

Crane superstructure

engine

Rated power

kW/(r/min)

162/2100

Rated torque

N.m/(r/min)

854/1400

Rated speed

r/min

2100

Crane carrier engine

Rated power

kW/(r/min)

380/1800

Rated torque

N.m/(r/min)

2400/1200

Rated speed

r/min

2000

Travel performance

Travel speed

Max. travel speed

km/h

71

Min. stable travel speed

km/h

2.1

Min. turning diameter

m

24

Min. ground clearance

mm

278

Approach angle

°

25

Departure angle

°

20

Braking distance (at 30km/h with full load)

m

≤ 10

Max. grade-ability

%

48

Fuel consumption for 100km

l

80


Technical Data for Lifting Operation

Main

performance

Max. total rated lifting capacity

t

160

Min. rated working radius

m

3

Turning radius at turntable tail

mm

4850

Max. load moment

Base boom

kN.m

5282

Fully extended boom

kN.m

2140

Outrigger span

Longitudinal

m

9.625

Lateral

m

8.7(6.5)

Lifting height

Base boom

m

14.3

Fully extended boom

m

56.3

Fully extended boom + Jib

m

79

Boom length

Base boom

m

13.6

Fully extended boom

m

60

Fully extended boom + Jib

m

80

Jib offset

°

0,15,30

Working

speed

Boom elevating time

Boom raising

s

90

Boom telescoping time

Boom full extension

s

600

Boom full retraction

s

600

Max. swing speed

r/min

2

Hoist speed (single rope at 4th layer)

Main winch

No load

m/min

120

Aux. winch

No load

m/min

110

Crane exterior noise

db(A)

≤118

At seated position

db(A)

≤90

The specification is subject to change without notice.
