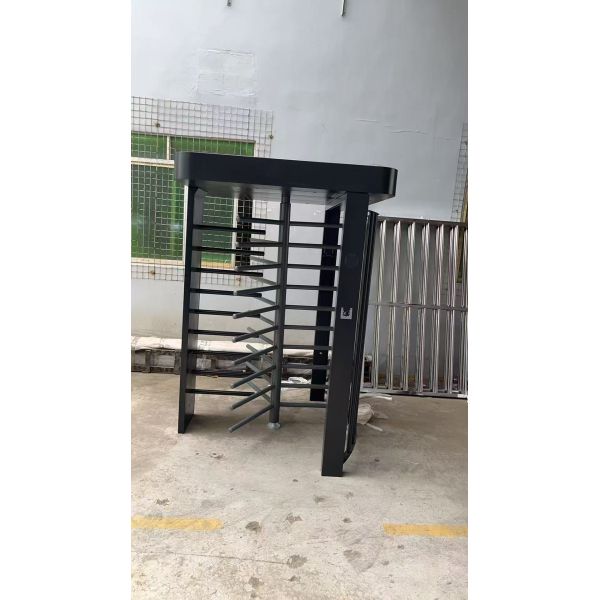

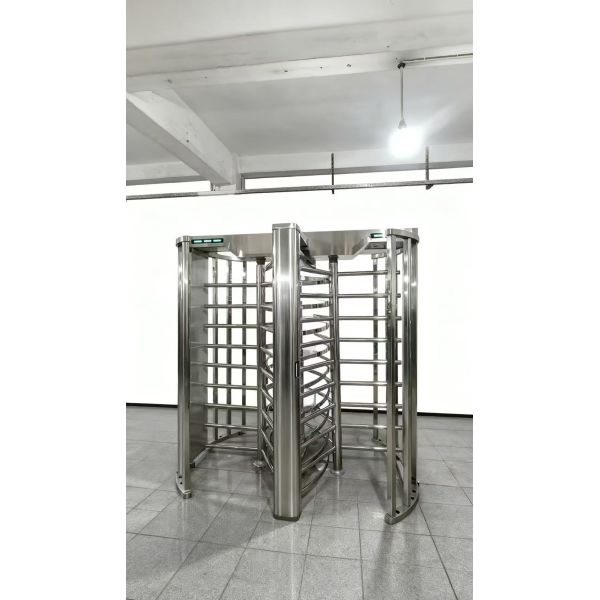

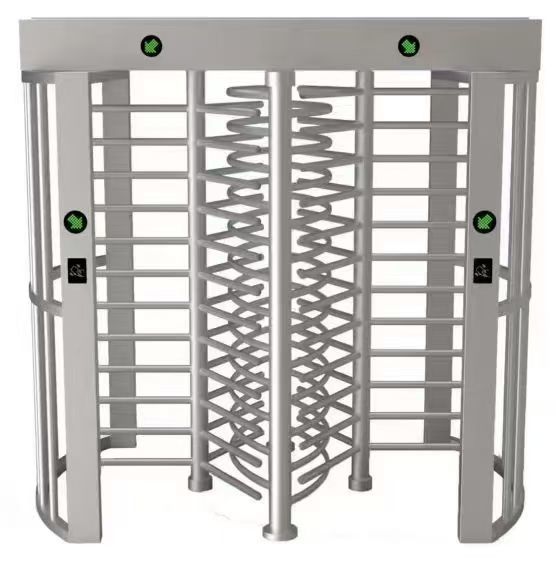

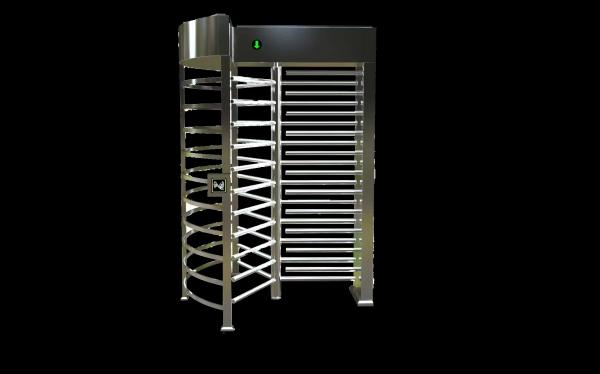

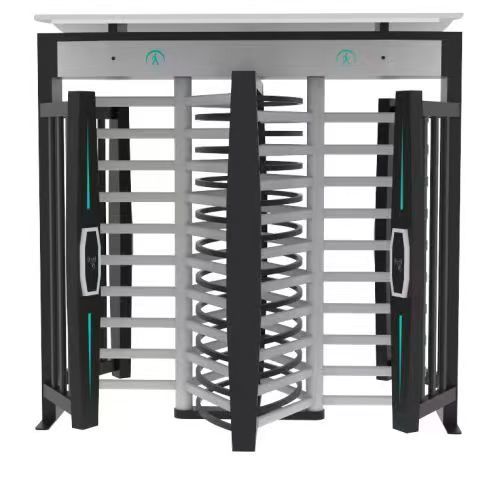

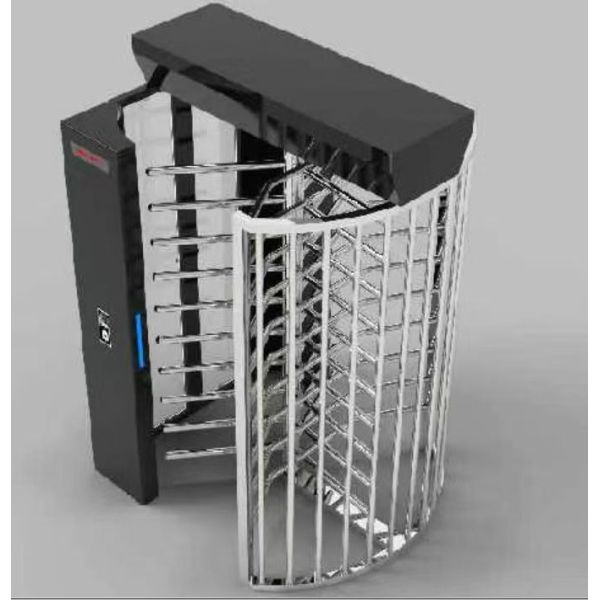

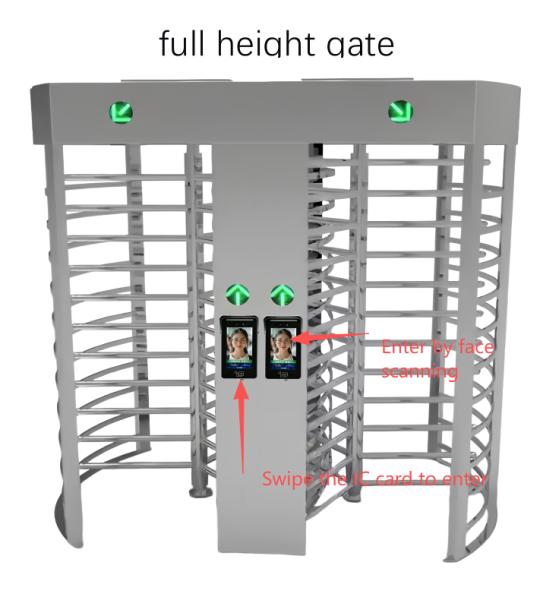

Face Recognition Turnstile Barrier Gate System Access Control Full Height Turnstile Gate
Material Specifications
Sheet Metal Thickness: 1.2 millimeters
Tube Wall Thickness:
Spindle Tube: 2.0 millimeters (CNS)
Other Tubing: 1.0 millimeters (CNS)

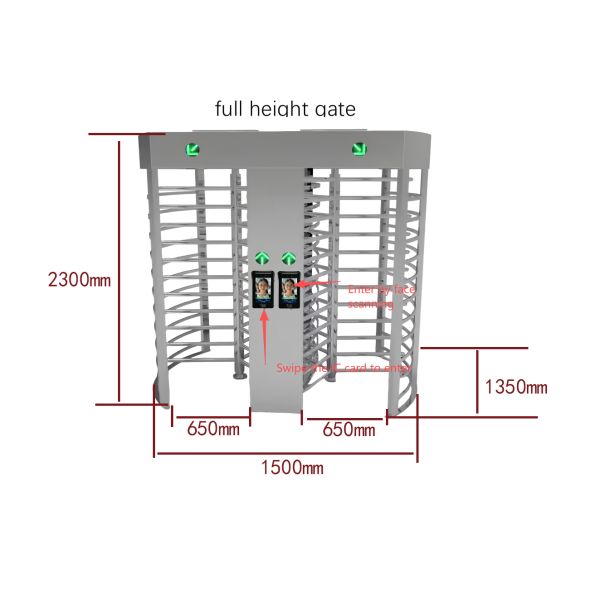

Dimensions and Passages
Passage Width: 650 millimeters
Overall Dimensions: Length 1350 millimeters * Width 1500 millimeters * Height 2300 millimeters
Technical Specifications
| Product Name |
Full Height Turnstile |
| Place of Origin |
Shenzhen, Guangdong, China |
| Brand Name |
DOOR/NO brand |
| Material |
SUS304 |
| MCBF |
5 million cycles |
| Power Supply |
AC110/AC220±10% 50-60Hz |
| Pass Direction |
Bi-directional/Single Directional |
| Pass Speed |
20-35 person/minute |
| Size |
1580*1200*2310mm |
| Color |
Silver |
| Card-reading Window |
Four |
| Working Environment |
Indoor/Outdoor |
| Working Temperature |
-20℃ to +70℃ |
| Working Humidity |
Relative humidity ≤90%, no condensation |
Key Features
- Surface of movement unit features anti-rust and anti-corrosion treatment for enhanced durability
- Multiple RJ45 and RS485/232 interfaces support various card readers, magnetic stripe, EMID, 1 CI, TI, and multiple data formats including WIEGAND26, WIEGAND34, WIEGAND66
- Compatible with barcode readers, fingerprint recognizers, palm print recognizers, and face recognizers for flexible system integration
- Intelligent voice and sound prompts for user-friendly operation
- Automatic malfunction inspection and alarm function for easy maintenance
- Sound and light alarm functions for illegal break-in and trailing detection
- Anti-impact function with automatic flap locking when no open signal is received
- Automatic reset function cancels access authority if passage not used within set time, resets automatically in 5 seconds after opening
